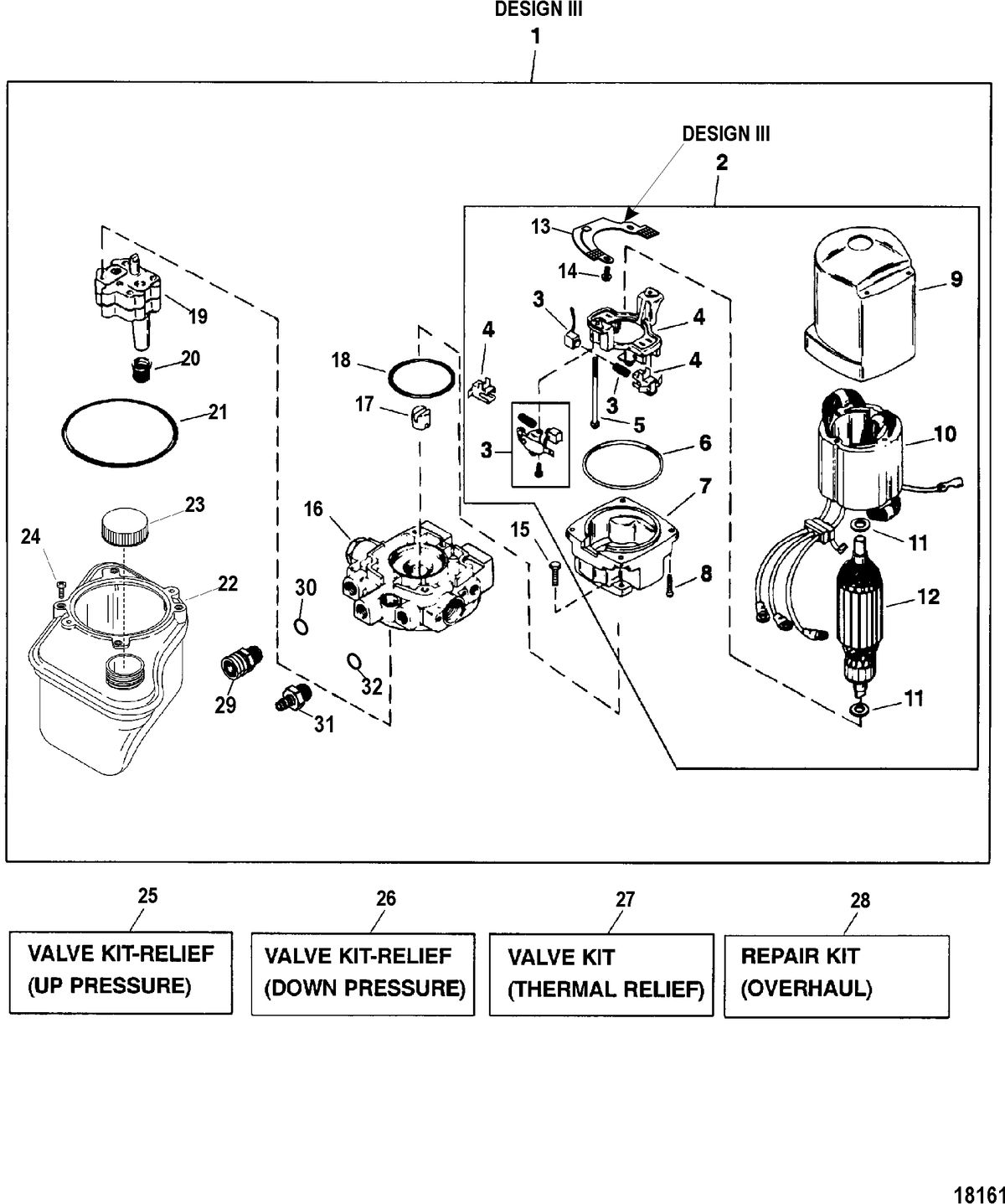

MERCRUISER - BRAVO XZ ONE - Pump/Motor(Top Mount Reservoir) (Design III - 14336A31)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
(Design III - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
Supersedes: 865380A03, 14336A31 |
$1,103.83
|
|
|
| 2 |
(Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
Supersedes: 17649T |
$371.14
|
|
|
| 3 |
|
$50.24
|
|
|
| 4 |
|
$12.56
|
|
|
| 5 |
Qty Required For Repair: 2
Minimum Order Qty: 2 |
NLA
|
||
| 6 |
|
$11.12
|
|
|
| 7 |
|
NLA
|
||
| 8 |
Qty Required For Repair: 4
|
NLA
|
||
| 9 |
|
NLA
|
||
| 10 |
|
NLA
|
||
| 11 |
Qty Required For Repair: 2
|
NLA
|
||
| 12 |
|
NLA
|
||
| 13 |
|
$18.00
|
|
|
| 14 |
Qty Required For Repair: 2
|
NLA
|
||
| 15 |
Qty Required For Repair: 2
|
$2.40
|
|
|
| 16 |
Supersedes: 808728, 18528
|
$408.45
|
|
|
| 17 |
Supersedes: 89493
|
$61.28
|
|
|
| 18 |
|
$9.12
|
|
|
| 19 |
|
$409.22
|
|
|
| 20 |
Qty Required For Repair: 2
|
$10.48
|
|
|
| 21 |
|
$18.64
|
|
|
| 22 |
(Reference 20 And Reference 21)
|
$112.63
|
|
|
| 23 |
Supersedes: 36-18526
|
NLA
|
||
| 23 |
Qty Required For Repair: OPT
|
$6.24
|
|
|
| 24 |
Qty Required For Repair: 4
|
$5.36
|
|
|
| 25 |
|
$97.96
|
|
|
| 26 |
|
$108.15
|
|
|
| 27 |
|
$66.24
|
|
|
| 28 |
|
$148.89
|
|
|
| 29 |
SN# 0W100000 & Up
Supersedes: 22-865413001, 22-865413 |
$44.64
|
|
|
| 30 |
SN# 0W100000 & Up
|
$9.12
|
|
|
| 31 |
SN# 0W100000 & Up
Supersedes: 22-865412 |
$63.36
|
|
|
| 32 |
SN# 0W100000 & Up
|
$9.12
|
|
