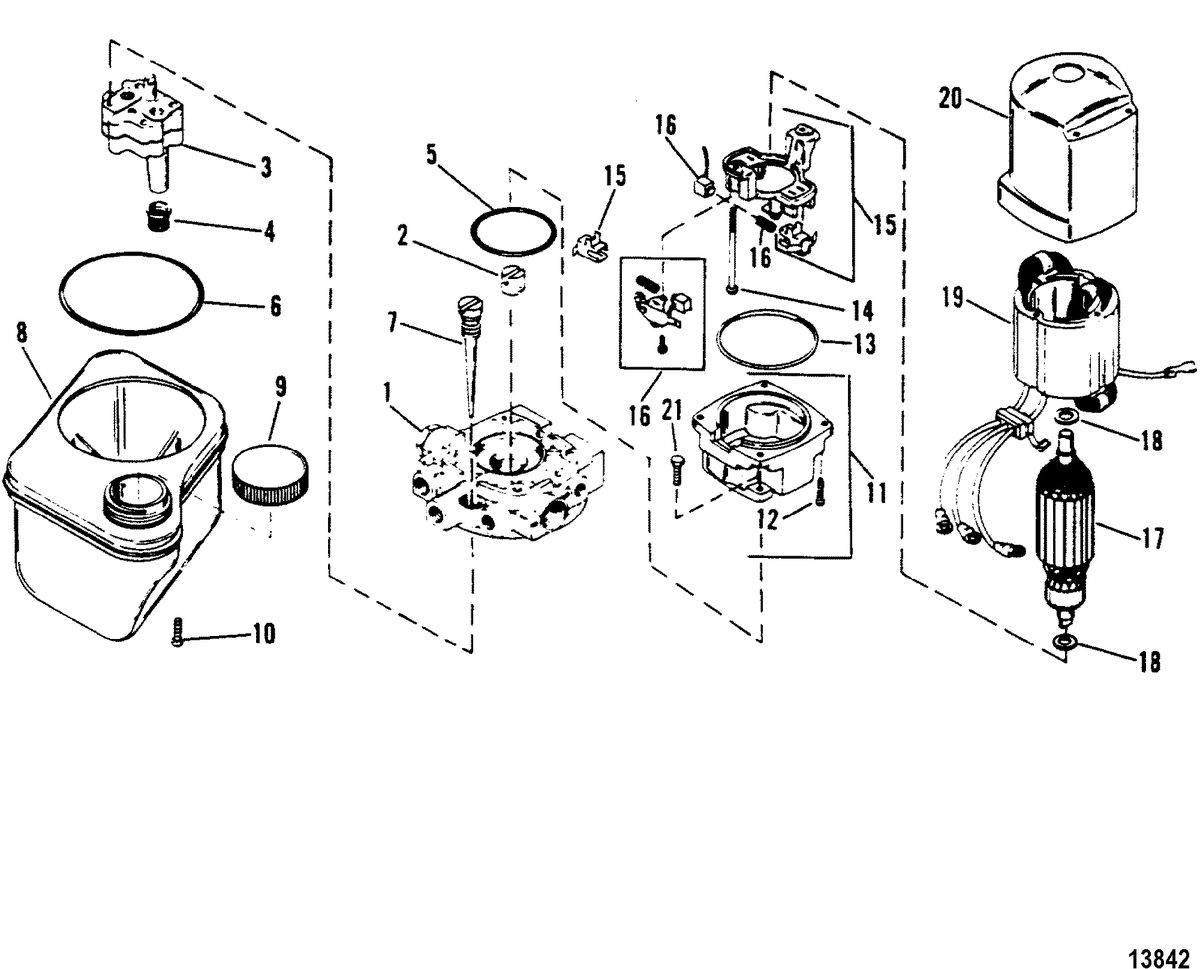

HYDRAULIC PUMP

Ref ID	Description	Price
-	PUMP/MOTOR ASSEMBLY (#865380A13) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 865380A03, 14336A31 Supersedes: 865380A03, 14336A31	$1,061.37 ~~$1,122.99~~
1	ADAPTOR (#808728T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 808728, 18528 Supersedes: 808728, 18528	$392.77 ~~$400.79~~
2	COUPLING (#803852) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 89493 Supersedes: 89493	$58.96 ~~$61.42~~
3	PUMP ASSEMBLY, Includes Screws (#18529) Qty Required For Repair: 1 Minimum Order Qty: 1	$393.47 ~~$401.50~~
4	FILTER (#35-89496) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.08 ~~$12.60~~
5	O-RING (#25-89498) Qty Required For Repair: 1 Minimum Order Qty: 1	$8.80 ~~$11.00~~
6	O-RING (#25-17645) Qty Required For Repair: 1 Minimum Order Qty: 1	$17.92 ~~$18.67~~
7	DIPSTICK (#41218) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	RESERVOIR (#18525A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	CAP, Oil Reservoir (#36-861597) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 36-18526 Supersedes: 36-18526	NLA
10	SCREW, Includes O-Ring (#10-18527) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.68 ~~$7.10~~
-	MOTOR (#891736T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 17649T Supersedes: 17649T	$356.86 ~~$364.14~~
11	END CAP ASSEMBLY (#17632T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	SCREW (#10-17626) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
13	O-RING (#25-17625) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SCREW (#10-17621) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	HOLDER KIT (#17633) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	BRUSH KIT (#17631A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	ARMATURE (#17623) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	WASHER (#12-17653) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
19	FIELD AND FRAME ASSEMBLY (#17624) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	COVER ASSEMBLY (#17622) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	SCREW (#10-823444) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.32 ~~$2.90~~
-	VALVE KIT, Relief (Up Pressure) (#812498A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$94.16 ~~$103.25~~
-	VALVE KIT, Relief (Thermal Relief) (#95353A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$63.68 ~~$66.33~~
-	VALVE KIT, Relief (Down Pressure) (#812499A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$103.97 ~~$114.00~~
-	REPAIR KIT, Overhaul (#18545A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$143.14 ~~$168.00~~

Mercury Marine Parts Catalog

HYDRAULIC PUMP

This assembly is found in these models:
