Transmission - ZF68A (#ZF63A)
Part #: ZF63A
This product is no longer available.
**Specify Gear Ratio When Ordering**

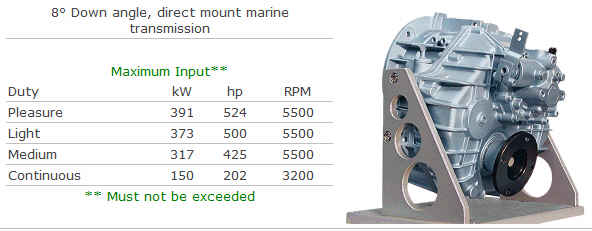

ZF 68 A Description
Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
Suitable for high performance applications in luxury motoryachts, sport fishers, express cruisers etc.
Robust design also withstands continuous duty in workboat applications.
Fully works tested, reliable and simple to install.
Design, manufacture and quality control standards comply with ISO 9001.
Compatible with all types of engines and propulsion systems, including water jets and surface piercing propellers, as applicable.
ZF 68 A Features
Lightweight and robust aluminum alloy casing (sea water resistant).
Case hardened and precisely ground gear teeth for long life and smooth running.
Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.
B/W connection integrated with casing.
Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable.
Suitable for twin engine installations (same torque capacity in ahead or astern mode. Reduction Ratios in ahead or astern are very close).
Replaceable oil filter cartridge.
"SUPERSHIFT" clutch control.
ZF 68 A Options
Engine-matched dual stage coupling.
SAE 3 and SAE 4 bell housings.
Oil cooler complete with fittings and flexible oil hoses.
Mounting brackets for rigid connection to foundation.
Propeller shaft flange.
Control cable bracket for connection of the push-pull cable.
Classification by all major Classification Societies on request.
SAE «A» Power Take Off.
Thermostatic valve for better performance of trolling valve in cold sea water.
Trolling valve (mechanical) for slow-speed drive.
Electric Trolling.
Supershift (with Autotroll and Easidock).
