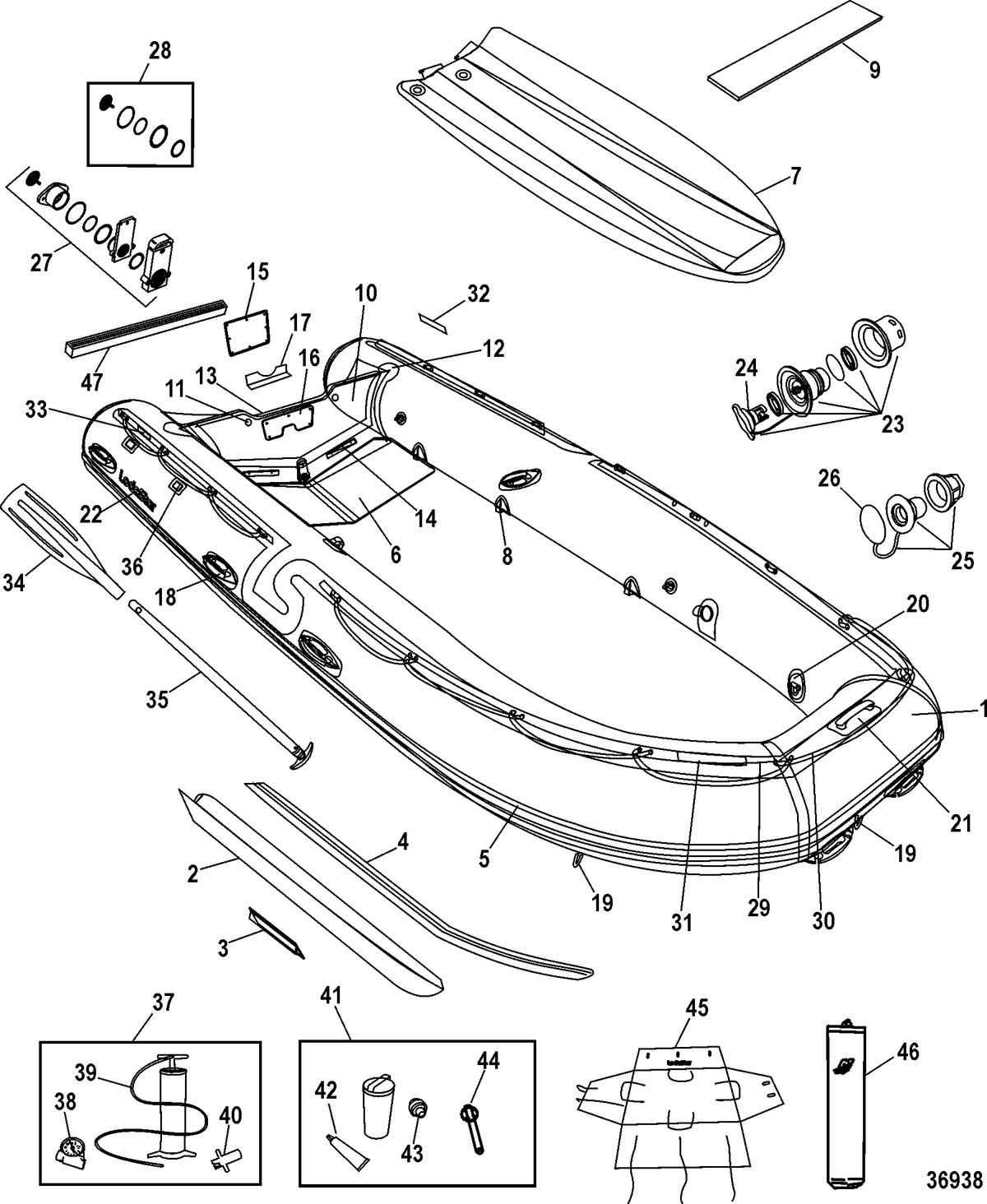

Trimax 3D-V Models(380 / 430)

Ref ID	Description	Price
1	SKIN ASSEMBLY, PVC (L380 cm x W200 cm) Lodestar Light Gray (#63-879317027) Comment: - 380 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 380 Model	NLA
1	SKIN ASSEMBLY, PVC (L430 cm x W200 cm) Lodestar Light Gray (#63-879317028) Comment: - 430 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 430 Model	NLA
2	SPEED TUBE KIT, (L288 cm) PVC Lodestar Light Gray (#63-8M9200082) Comment: - 380 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 380 Model	NLA
2	SPEED TUBE KIT, (L324 cm) PVC Lodestar Light Gray (#63-8M9200083) Comment: - 430 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 430 Model	NLA
3	RUBSTRAKE, Bottom Of Speed Tube - PVC Lodestar Light Gray (#63-8M0006425) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
4	RUBSTRAKE, Bottom - PVC Lodestar Light Gray (#63-8M0006419) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
5	RUBSTRAKE, Side - PVC - One Blue Line On Lodestar Light Gray (#63-8M9200014) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
6	THRUSTBOARD, (56 cm x 48 cm) FRP - White (#63-8M9200273) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	AIR FLOOR ASSEMBLY, PVC (L287 cm) X Stitch With Tank Straps - Lodestar Light Gray (#63-879317029) Comment: - 380 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 380 Model	NLA
7	AIR FLOOR ASSEMBLY, PVC (L337 cm) X Stitch With Tank Straps - Lodestar Light Gray (#63-879317030) Comment: - 430 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 430 Model	NLA
NS	HOLDER, Webbing Strap - PVC Lodestar Light Gray (#63-879330073) Qty Required For Repair: 5 Minimum Order Qty: 1 Qty Required For Repair: 5	NLA
NS	WEBBING STRAP, (50 mm) Light Gray (#63-879330074) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
NS	BUCKLE, Plastic - Black (#63-879330075) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	STOPPER, Floor - PVC Lodestar Light Gray (#63-8M9200386) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
9	SEAT ASSEMBLY, FRP White (L106 cm x W30 cm x T24 mm) Bolt Rope System (#63-879317015) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
-	HOLDER, Bolt Rope (L30 cm) Lodestar Light Gray (#63-879317009) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
-	BOLT ROPE, (L50 cm) Lodestar Light Gray (#63-879317010) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
10	TRANSOM ASSEMBLY, ABS Coated - Lodestar Light Gray (T36 mm) (#63-879317031) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	TOWING HOLE SET, (28 mm x T36 mm) Stainless Steel (#62-898172001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
12	HOLDER, Transom - PVC Lodestar Light Gray (T36 mm) (#63-8M0006496) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
13	CAP, Transom Cover (W36 mm x 117 cm) PVC Lodestar Light Gray (#62-802607005) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 63-879317017 Supersedes: 63-879317017	NLA
14	RETAINER, (L20 cm) Lodestar Light Gray (#62-896285001) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-896285 Qty Required For Repair: 2 Supersedes: 62-896285	NLA
15	PLATE, Transom - Dark Gray Plastic (#63-8M9200403) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	PAD, Transom - Dark Gray Plastic (#63-879330090) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.60 ~~$10.35~~
17	PROTECTOR, Transom Bottom - PVC Lodestar Light Gray (#62-899878003) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	HANDLE/LIFTING, Side/Bow - PVC Lodestar Light Gray - Lodestar Logo (#63-8M9200332) Qty Required For Repair: 10 Minimum Order Qty: 1 Qty Required For Repair: 10	NLA
19	D RING, Large - Stainless Steel On Lodestar Light Gray PVC Fabric - Round (15 cm) (#62-811309003) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: 62-811309 1, 63-8M0006268 Qty Required For Repair: 3 Supersedes: 62-811309 1, 63-8M0006268	$10.48 ~~$9.36~~
20	D RING, Medium - Stainless Steel On Lodestar Light Gray PVC Fabric (#62-899644001) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899644 Qty Required For Repair: 2 Supersedes: 62-899644	NLA
21	CLEAT, Bow - PVC Gray (#63-879317011) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	LOGO, Side - Raised Lodestar - PVC - Blue On Lodestar Light Gray (#63-879330065) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	VALVE ASSEMBLY, Air - Lodestar Light Gray - Lodestar Logo (#63-8M9200000) Comment: - 380 Model Qty Required For Repair: 7 Minimum Order Qty: 1 - 380 Model Qty Required For Repair: 7	$15.63 ~~$13.98~~
23	VALVE ASSEMBLY, Air - Lodestar Light Gray - Lodestar Logo (#63-8M9200000) Comment: - 430 Model Qty Required For Repair: 8 Minimum Order Qty: 1 - 430 Model Qty Required For Repair: 8	$15.63 ~~$13.98~~
24	CAP ASSEMBLY, Air Valve - Lodestar Light Gray - Lodestar Logo (#63-8M9200089) Comment: - 380 Model Qty Required For Repair: 7 Minimum Order Qty: 1 - 380 Model Qty Required For Repair: 7	NLA
24	CAP ASSEMBLY, Air Valve - Lodestar Light Gray - Lodestar Logo (#63-8M9200089) Comment: - 430 Model Qty Required For Repair: 8 Minimum Order Qty: 1 - 430 Model Qty Required For Repair: 8	NLA
25	VALVE ASSEMBLY, Over Pressure - Gray (#62-899879A01) Qty Required For Repair: 1 Minimum Order Qty: 1	$40.77 ~~$36.42~~
26	CAP ASSEMBLY, Over Pressure Valve - Red (#62-899879002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	VALVE ASSEMBLY, Drain - Lodestar Light Gray (36 mm) (#63-8M9200259) Qty Required For Repair: 1 Minimum Order Qty: 1	$17.12 ~~$15.28~~
28	REPAIR KIT, Drain Valve (#62-899676A02) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.76 ~~$19.70~~
29	LACING CUFF ASSEMBLY, Rope - PVC - Blue Hogging With Eyelets (3.96 m) Front (#63-879317018) Comment: - 380 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 380 Model	NLA
29	LACING CUFF ASSEMBLY, Rope - PVC - Blue Hogging With Eyelets (4.52 m) Front (#63-879317019) Comment: - 380 Model Qty Required For Repair: 2 Minimum Order Qty: 1 - 380 Model Qty Required For Repair: 2	NLA
29	LACING CUFF ASSEMBLY, Rope - PVC - Blue Hogging With Eyelets (1.23 m) Rear (#63-879317020) Comment: - 430 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 430 Model	NLA
29	LACING CUFF ASSEMBLY, Rope - PVC - Blue Hogging With Eyelets (1.47 m) Rear (#63-879317021) Comment: - 430 Model Qty Required For Repair: 2 Minimum Order Qty: 1 - 430 Model Qty Required For Repair: 2	NLA
30	ROPE, White (#63-8M0006587) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
31	REFLECTION TAPE, (L20 cm x H3.5 cm) White (#63-8M0006426) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
32	REFLECTION TAPE, (L20 cm x H3.5 cm) Red, Port (#63-8M0006427) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	REFLECTION TAPE, (L20 cm x H3.5 cm) Green, Starboard (#63-8M0006428) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	OAR BLADE, Lodestar Light Gray - Lodestar Logo (#63-8M9200338) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
35	OAR HANDLE ASSEMBLY, (80 cm) Lodestar Light Gray (#63-8M9200430) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
36	STRAP RETAINER, T Paddle - PVC Lodestar Light Gray Fabric With White Triple Velcro (#63-879317022) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
37	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
38	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
39	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
40	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
41	REPAIR KIT, PVC - Lodestar Light Gray/Blue .08 Fabric (#63-8M0006413) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
43	ADAPTOR, Air Pump Hose For Foot Pump (#62-8096853) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
44	REMOVER/INSTALLER TOOL, Air Valve - Plastic (#62-896317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.73 ~~$3.33~~
45	BAG, Storage/Carrying (L2.22 m x W1.42 m) Navy Blue - Lodestar Logo (#63-879317023) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
46	POUCH, With String and Webbing Strap - For Small Accessories - Navy Blue (#62-811327003) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	SHIM KIT, Transom (L300 mm x W36 mm x H24 mm) Lodestar Light Gray (#62-879185002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 63-879330095 Supersedes: 63-879330095	NLA
