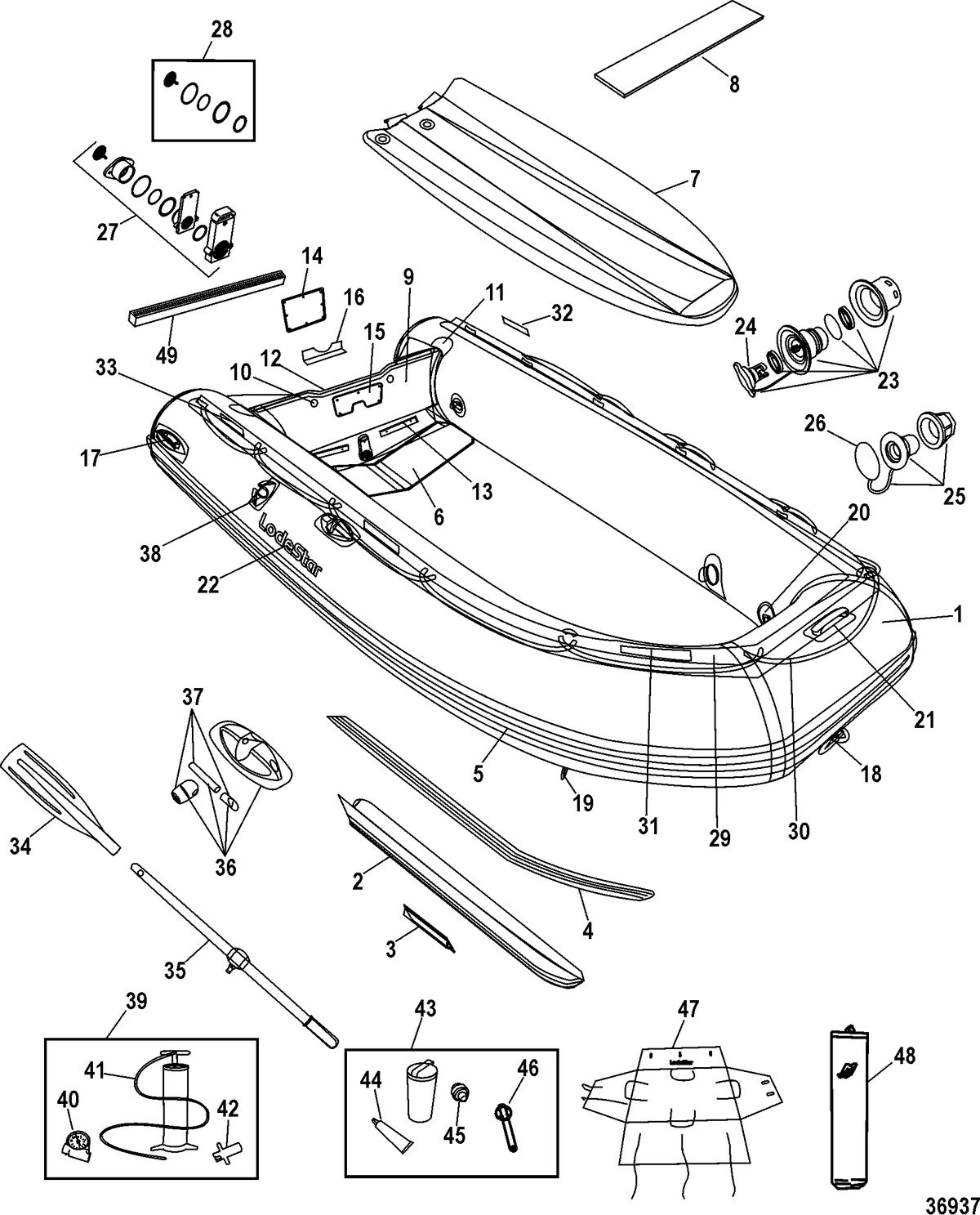

Trimax 3D-V Models(340)

Ref ID	Description	Price
1	SKIN ASSEMBLY, PVC (L340 cm x W170 cm) Lodestar Light Gray (#63-879317025) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SPEED TUBE KIT, (L239 cm) PVC Lodestar Light Gray (#63-8M9200387) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	RUBSTRAKE, Bottom Of Speed Tube - PVC Lodestar Light Gray (#63-8M0006425) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
4	RUBSTRAKE, Bottom - PVC Lodestar Light Gray (#63-8M0006419) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
5	RUBSTRAKE, Side - PVC - One Blue Line On Lodestar Light Gray (#63-8M9200014) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
6	THRUSTBOARD, (51 cm x 33 cm) FRP - White (#63-8M9200272) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	AIR FLOOR ASSEMBLY, PVC (L265 cm) X Stitch With Tank Straps - Lodestar Light Gray (#63-879317026) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
NS	HOLDER, Webbing Strap - PVC Lodestar Light Gray (#63-879330073) Qty Required For Repair: 5 Minimum Order Qty: 1 Qty Required For Repair: 5	NLA
NS	WEBBING STRAP, (50 mm) Light Gray (#63-879330074) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
NS	BUCKLE, Plastic - Black (#63-879330075) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	SEAT ASSEMBLY, FRP White (L85 cm x W30 cm x T24 mm) Bolt Rope System (#63-879317008) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
NS	HOLDER, Bolt Rope (L30 cm) Lodestar Light Gray (#63-879317009) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
NS	BOLT ROPE, (L50 cm) Lodestar Light Gray (#63-879317010) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
9	TRANSOM ASSEMBLY, ABS Coated - Lodestar Light Gray (T24 mm) (#63-879330089) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	TOWING HOLE SET, (28 mm x T24 mm) Stainless Steel (#63-8M0006498) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	HOLDER, Transom - PVC Lodestar Light Gray (T24 mm) (#62-809782004) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$19.38 ~~$17.29~~
12	CAP, Transom Cover (W24 mm x 90 cm) PVC Lodestar Light Gray (#62-855403008) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	RETAINER, (L20 cm) Lodestar Light Gray (#62-896285001) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-896285 Qty Required For Repair: 2 Supersedes: 62-896285	NLA
14	PLATE, Transom - Dark Gray Plastic (#62-8M0068685) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-811336004 Supersedes: 62-811336004	$12.46 ~~$11.13~~
15	PAD, Transom - Dark Gray Plastic (#63-879330090) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.60 ~~$10.35~~
16	PROTECTOR, Transom Bottom - PVC Lodestar Light Gray (#62-899878003) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	HANDLE/LIFTING, Side/Bow - PVC Lodestar Light Gray - Lodestar Logo (#63-8M9200332) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
18	HANDLE/LIFTING, Bow - Metal On Lodestar Light Gray PVC Fabric (#63-8M0006373) Qty Required For Repair: 1 Minimum Order Qty: 1	$38.24 ~~$34.13~~
19	D RING, Large - Stainless Steel On Lodestar Light Gray PVC Fabric - Round (15 cm) (#62-811309003) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811309 1, 63-8M0006268 Qty Required For Repair: 2 Supersedes: 62-811309 1, 63-8M0006268	$10.48 ~~$9.36~~
20	D RING, Medium - Stainless Steel On Lodestar Light Gray PVC Fabric (#62-899644001) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899644 Qty Required For Repair: 2 Supersedes: 62-899644	NLA
21	CLEAT, Bow - PVC Gray (#63-879317011) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	LOGO, Side - Raised Lodestar - PVC - Blue On Lodestar Light Gray (#63-879330065) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	VALVE ASSEMBLY, Air - Lodestar Light Gray - Lodestar Logo (#63-8M9200000) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	$15.63 ~~$13.98~~
24	CAP ASSEMBLY, Air Valve - Lodestar Light Gray - Lodestar Logo (#63-8M9200089) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
25	VALVE ASSEMBLY, Over Pressure - Gray (#62-899879A01) Qty Required For Repair: 1 Minimum Order Qty: 1	$40.77 ~~$36.42~~
26	CAP ASSEMBLY, Over Pressure Valve - Red (#62-899879002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	DRAIN VALVE ASSEMBLY, Lodestar Light Gray (24 mm) (#62-899764A03) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899764A01 Supersedes: 62-899764A01	$18.29 ~~$16.33~~
28	REPAIR KIT, Drain Valve (#62-899676A02) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.76 ~~$19.70~~
29	LACING CUFF ASSEMBLY, Rope - PVC - Blue Hogging With Eyelets (6.48 m) (#63-879330094) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	ROPE, White (#63-8M0006587) Comment: - NOTE: Order Meters Required Qty Required For Repair: AR Minimum Order Qty: 1 - NOTE: Order Meters Required Qty Required For Repair: AR	NLA
31	REFLECTION TAPE, (L20 cm x H3.5 cm) White (#63-8M0006426) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
32	REFLECTION TAPE, (L20 cm x H3.5 cm) Red, Port (#63-8M0006427) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	REFLECTION TAPE, (L20 cm x H3.5 cm) Green, Starboard (#63-8M0006428) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	OAR BLADE, Lodestar Light Gray - Lodestar Logo (#63-8M9200338) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
35	OAR HANDLE ASSEMBLY, (110 cm) Lodestar Light Gray (#62-885159003) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$31.92 ~~$28.50~~
36	OARLOCK ASSEMBLY, PVC Lodestar Light Gray - Lodestar Logo (#63-8M9200423) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
37	HOLDER/PIN/CAP SET, Oarlock - PVC Lodestar Light Gray (#63-8M9200339) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$13.20 ~~$16.50~~
38	RETAINER, Oar - PVC Lodestar Light Gray (#63-8M9200341) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.10 ~~$2.75~~
39	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
40	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
41	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
42	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
43	REPAIR KIT, PVC - Lodestar Light Gray/Blue .08 Fabric (#63-8M0006413) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
45	ADAPTOR, Air Pump Hose For Foot Pump (#62-8096853) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
46	REMOVER/INSTALLER TOOL, Air Valve - Plastic (#62-896317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.73 ~~$3.33~~
47	BAG, Storage/Carrying (L2.02 m x W1.42 m) Navy Blue - Lodestar Logo (#63-879330096) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
48	POUCH, With String and Webbing Strap - For Small Accessories - Navy Blue (#62-811327003) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	SHIM KIT, Transom (L300 mm x W36 mm x H24 mm) Lodestar Light Gray (#62-879185002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 63-879330095 Supersedes: 63-879330095	NLA

This assembly is found in these models:

INFLATABLES > Lodestar INTL 2009
