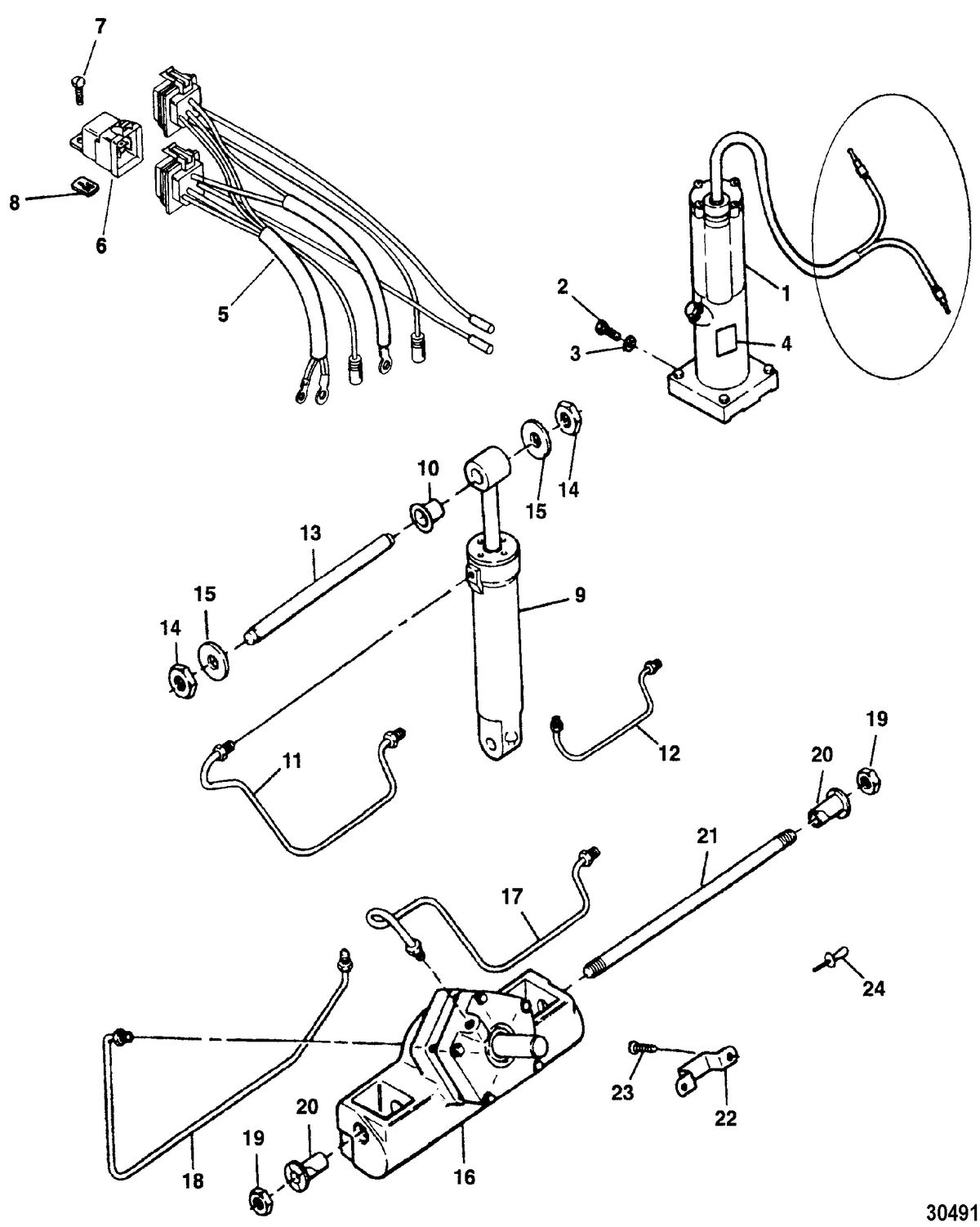

FORCE - FORCE TRIM & TILT 85-150 HP (1984-1999) - TRIM & TILT ASSEMBLY(BULLET CONNECTORS) (819762A7)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| _ |
Supersedes: 819762A 7
|
NLA
|
||
| 1 |
(See NOTE) (See Pump/Motor Assembly Section For Parts Breakdown)
|
NLA
|
||
| 2 |
Qty Required For Repair: 2
|
$3.26
|
|
|
| 3 |
Qty Required For Repair: 2
Minimum Order Qty: 5 |
$0.96
|
|
|
| 4 |
|
$3.36
|
|
|
| 5 |
Supersedes: 84-819514A 6
|
$69.60
|
|
|
| 6 |
Qty Required For Repair: 2
Supersedes: 87-819509T, 87-819509 |
$21.52
|
|
|
| 7 |
Qty Required For Repair: 2
Supersedes: 10-F1733 |
$1.12
|
|
|
| 8 |
Qty Required For Repair: 2
|
NLA
|
||
| 9 |
Supersedes: FS719381
|
NLA
|
||
| 10 |
|
NLA
|
||
| 11 |
|
NLA
|
||
| 12 |
|
NLA
|
||
| 13 |
|
NLA
|
||
| 14 |
Qty Required For Repair: 2
Minimum Order Qty: 2 Supersedes: 11-35778 |
$8.48
|
|
|
| 15 |
Qty Required For Repair: 2
|
NLA
|
||
| 16 |
(See Housing Assembly-Trim Cylinder (818055A3) Section For Parts Breakdown)
|
NLA
|
||
| 17 |
|
NLA
|
||
| 18 |
|
NLA
|
||
| 19 |
Qty Required For Repair: 2
Supersedes: F1963, F1331 |
$10.64
|
|
|
| 20 |
Qty Required For Repair: 2
Supersedes: F178362 |
$7.60
|
|
|
| 21 |
|
NLA
|
||
| 22 |
|
NLA
|
||
| 23 |
Qty Required For Repair: 2
|
NLA
|
||
| 24 |
|
NLA
|
||
| NS |
Qty Required For Repair: 2
Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 |
$0.48
|
|
|
| NS |
Supersedes: 55-FS631962, 819366A 1, FA178962, F719962
|
NLA
|
||
| NS |
|
NLA
|
Notes
1: NS = Not Shown
2: NOTE: 819480A1 Is Also Superseded To 853515A1 Or 832022A1 Which Is A Conversion Kit To The New Design Oildyne Pump/Motor Assembly.
3: If You Have The New Oildyne Pump/Motor Assembly Design, You Can Use The Parts Breakdown Of 853520A1 Pump/Motor Assembly.
4: Models 90/120 HP - If 1991H Thru 1992C And Serial # 0E000001 Thru 0E009499 - Order 853515A1 Pump/Motor Kit.
5: Models 90/120 HP - If Serial # 0E009500 Thru 0E093699 - Order 832022A1 Pump/Motor Kit.
