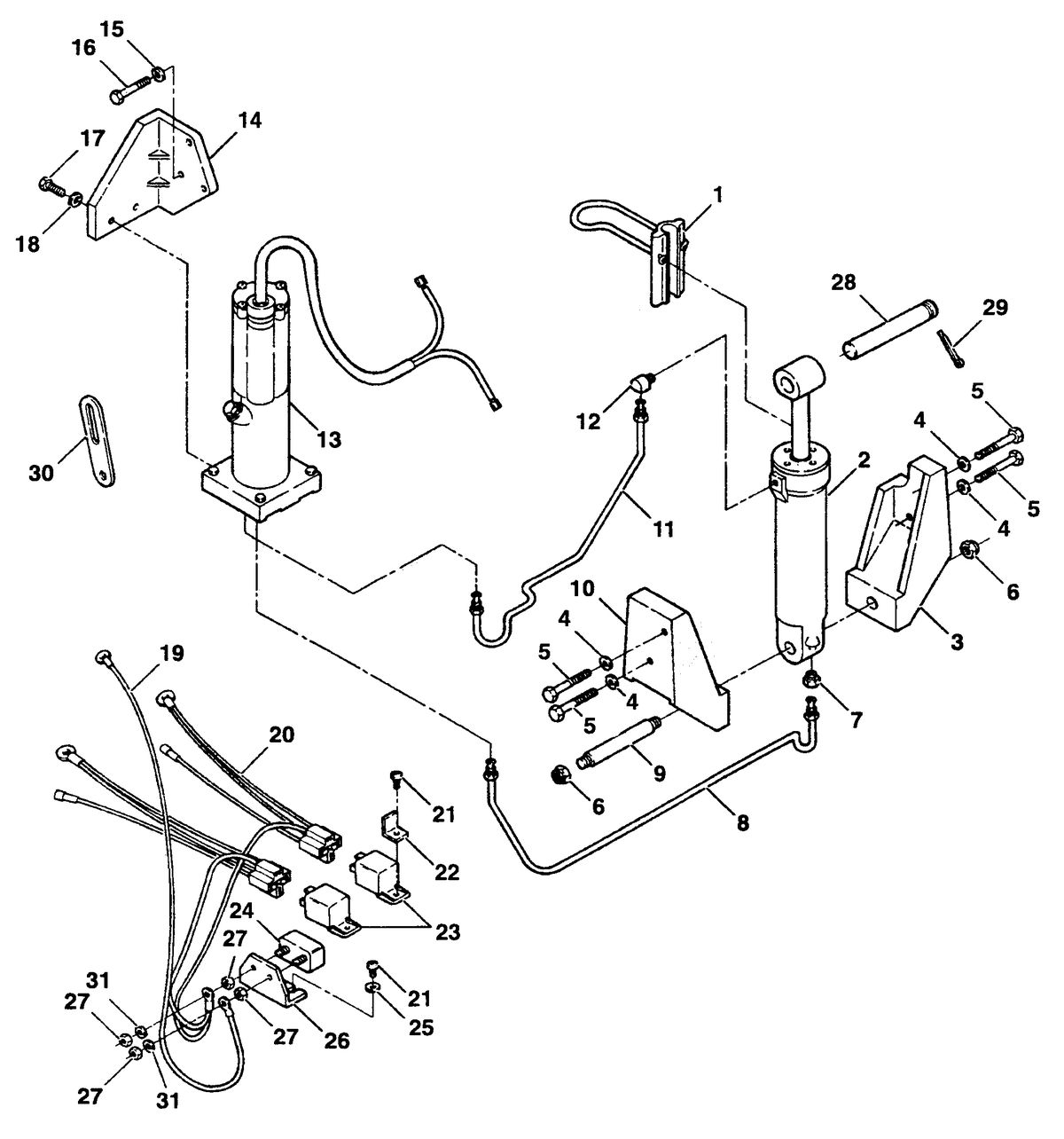

FORCE - FORCE TRIM & TILT 35-75 HP (1984-1999) - TRIM & TILT ASSEMBLY (F5H264)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| _ |
|
NLA
|
||
| 1 |
Supersedes: 819030
|
NLA
|
||
| 2 |
Supersedes: F749381F, F749381
|
NLA
|
||
| 3 |
(Port)
|
NLA
|
||
| 4 |
Qty Required For Repair: 4
|
$2.00
|
|
|
| 5 |
Qty Required For Repair: 4
|
NLA
|
||
| 6 |
Qty Required For Repair: 2
Minimum Order Qty: 2 Supersedes: 11-35778 |
$8.48
|
|
|
| 7 |
|
NLA
|
||
| 8 |
(Up)
Supersedes: 32-F740754 |
NLA
|
||
| 9 |
Supersedes: 17-F742440
|
NLA
|
||
| 10 |
(Starboard)
|
NLA
|
||
| 11 |
(Down)
|
NLA
|
||
| 12 |
|
$31.44
|
|
|
| 13 |
(See NOTE)
|
NLA
|
||
| 14 |
Supersedes: F743454
|
NLA
|
||
| 15 |
Qty Required For Repair: 3
Minimum Order Qty: 5 |
$1.36
|
|
|
| 16 |
Qty Required For Repair: 3
Supersedes: 10-90086 |
$3.04
|
|
|
| 17 |
Qty Required For Repair: 2
Minimum Order Qty: 5 |
$1.28
|
|
|
| 18 |
Qty Required For Repair: 2
Minimum Order Qty: 5 |
$0.96
|
|
|
| 19 |
|
NLA
|
||
| 20 |
|
NLA
|
||
| 21 |
Qty Required For Repair: 4
Supersedes: F17027, FE4296230 |
NLA
|
||
| 22 |
Qty Required For Repair: 2
|
NLA
|
||
| 23 |
Qty Required For Repair: 2
Supersedes: 87-F660917 |
NLA
|
||
| 24 |
Supersedes: F510640, F91460-2, F91460-1, F91460
|
NLA
|
||
| 25 |
Qty Required For Repair: 2
Minimum Order Qty: 5 |
$1.36
|
|
|
| 26 |
Supersedes: 816516, F91446, F91446-1
|
NLA
|
||
| 27 |
Qty Required For Repair: 4
Minimum Order Qty: 5 |
$2.32
|
|
|
| 28 |
|
NLA
|
||
| 29 |
|
$2.72
|
|
|
| 30 |
Supersedes: F366433
|
NLA
|
||
| 31 |
Qty Required For Repair: 2
Supersedes: F1240, F1534, 10-F1915, F1533, FO1533 |
NLA
|
Notes
1: NOTE: Use This Section To Service Your Power Trim System If Your Motor Assembly Has Bayonet Connectors.
2: Use 819177A3 Power Trim & Tilt Assembly Section To Service Your System If Your Motor Assembly Has Been Updated To Bullet Connectors.
3: F749541 Pump/Motor Assembly Is Superseded To 819479A3 Which Is A Conversion Kit To The New Design Bullet Connectors And Relay System.
4: This Includes Necessary Instructions And Cables, Relays And Adapter Plate.
5: If You Have The Bayonet Connector Design, You Can Use The Parts Breakdown Of 819479A1 Pump/Motor Assembly Except For Ref #9.
6: Also Note, That 819479A3 Is Also Superseded To 832021A8 Which Is A Conversion Kit To The New Design Oildyne Pump/Motor Assembly And Relay System.
7: If You Have The New Oildyne Pump/Motor Assembly Design, You Can Use The Parts Breakdown Of 832021A1 Pump/Motor Assembly.
8: See Parts Index For Locations.
