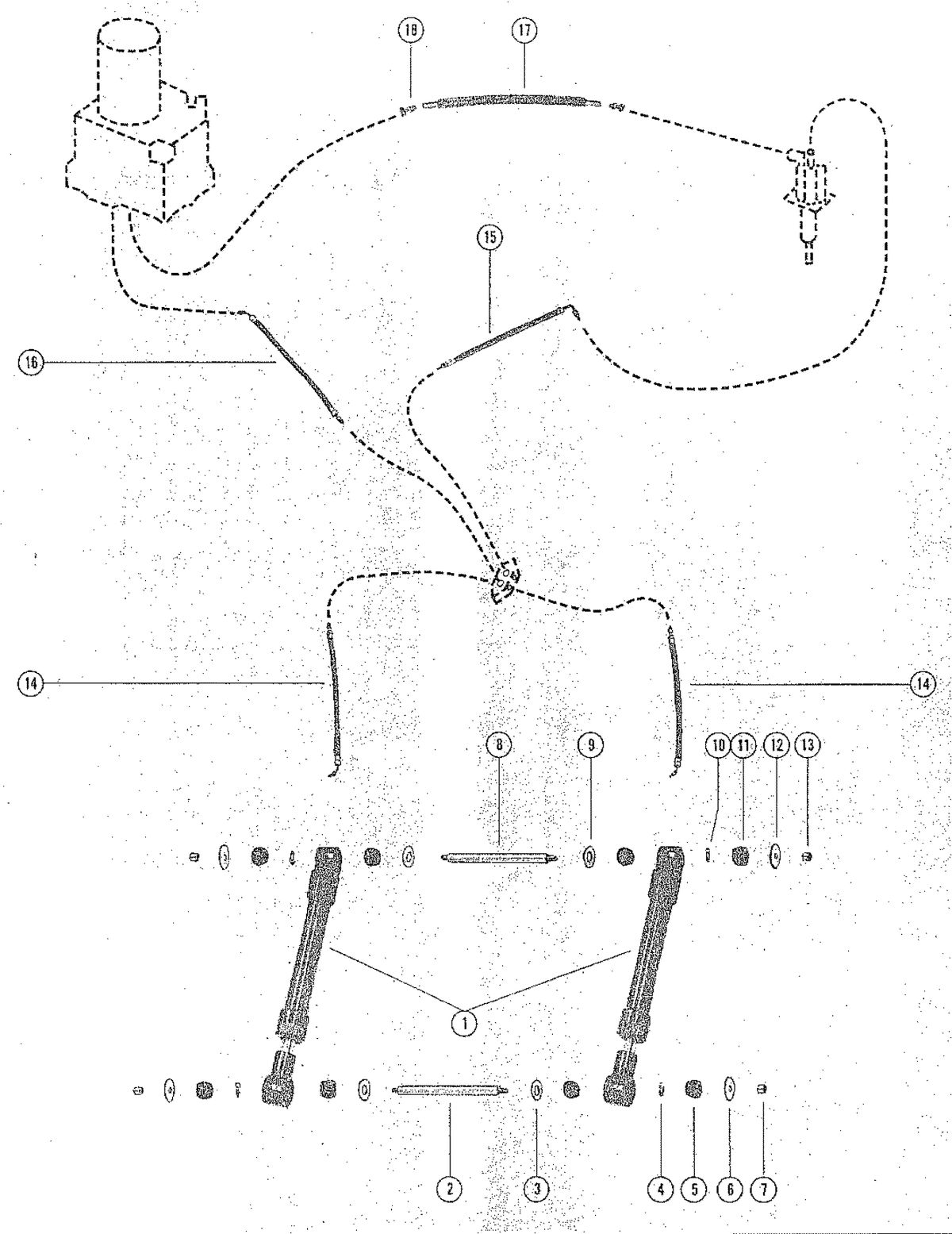

TRIM CYLINDERS AND HYDRAULIC HOSES

Ref ID	Description	Price
1	TRIM CYLINDER ASSEMBLY, COMPLETE(SEE NOTE BELOW) (#47342A23) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
2	PIN, ANCHOR - DRIVE SHAFT HOUSING (10 3/4") (#17-14874A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (59/64"I.D.) (#12-89664) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.52 ~~$6.90~~
4	SPRING, DRIVE SHAFT HOUSING ANCHOR PIN (#24-49593) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	NLA
5	BUSHING, RUBBER - DRIVE HOUSING ANCHOR PIN (#23-90203) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
6	WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64"I.D.) (#12-89665) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.84 ~~$7.30~~
7	NUT, DRIVE SHAFT HOUSING ANCHOR PIN (#11-35000) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$11.68 ~~$14.60~~
8	PIN, ANCHOR - GIMBAL RING (13 1/4") (#17-14875A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	WASHER, GIMBAL RING ANCHOR PIN (59/64"I.D.) (#12-89664) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.52 ~~$6.90~~
10	SPRING, GIMBAL RING ANCHOR PIN (#24-49593) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	NLA
11	BUSHING, RUBBER - GIMBAL RING ANCHOR PIN (#23-90203) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
12	WASHER, GIMBAL RING ANCHOR PIN (33/64"I.D.) (#12-89665) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.84 ~~$7.30~~
13	NUT, GIMBAL RING ANCHOR PIN (#11-35000) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$11.68 ~~$14.60~~
14	HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2") (#32-86036Q) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$49.52 ~~$51.49~~
15	HOSE, HYDRAULIC - CONNECTOR TO VALVE (25") (#32-63158A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$82.23 ~~$90.17~~
16	HOSE, HYDRAULIC - CONNECTOR TO PUMP (50 1/2") (#32-63157A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$99.03 ~~$108.58~~
17	TUBING ASS'Y, HYDRAULIC PUMP TO REVERSE LOCK VALVE (49") (#32-8M0111655) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	NUT, COMPRESSION - HYDRAULIC TUBING ATTACHING (#22-49718) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.36 ~~$4.20~~

This assembly is found in these models:

MERCRUISER > II-TR 1973-1976
