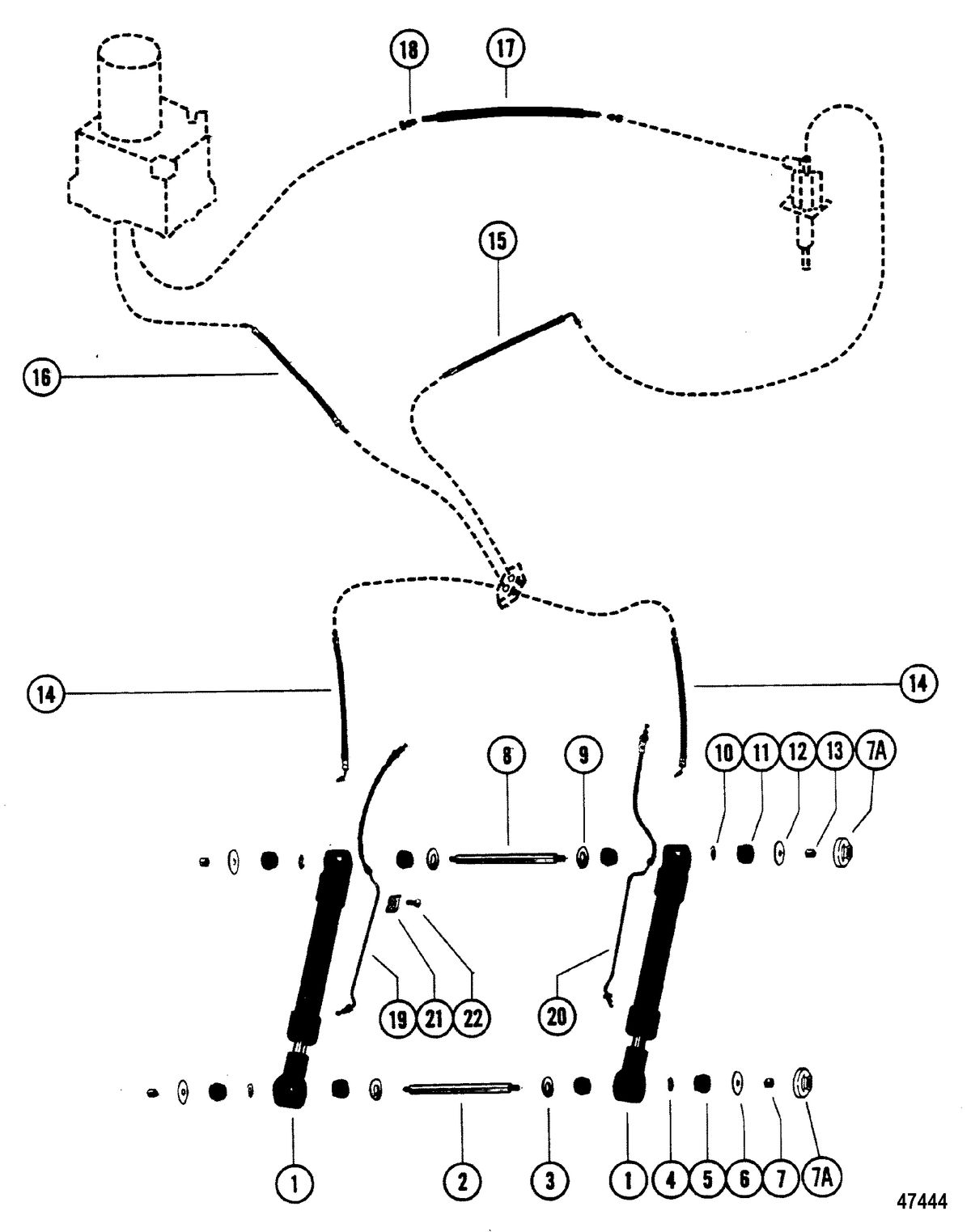

MERCRUISER - TR/TRS 1977-1993 - TRIM CYLINDERS AND HOSES(EXTERNAL LINES)

Ref ID	Description	Price
--	TRIM CYLINDER ASS'Y, COMPLETE (STBD.) (#87412A3) Comment: SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN Qty Required For Repair: 1 Minimum Order Qty: 1 SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN	$448.00 ~~$470.86~~
1	TRIM CYLINDER ASS'Y, COMPLETE (PORT) (#87411A3) Comment: SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN Qty Required For Repair: 1 Minimum Order Qty: 1 SEE TRIM CYLINDER REPAIR KITS (EXTERNAL LINES) FOR REPAIR KIT BREAKDOWN	NLA
2	PIN, REAR (1/2-20 THREADS) (#17-14874A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS) (#12-89664) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.28 ~~$6.60~~
4	SPRING, ANCHOR PIN (1/2-20 THREADS) (#24-49593) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	NLA
5	BUSHING, RUBBER (1/2-20 THREADS) (#23-90203) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
6	WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS) (#12-89665) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.60 ~~$7.00~~
7	NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS) (#11-35000) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$11.20 ~~$14.00~~
8	PIN, FRONT (1/2-20 THREADS) (#17-14875A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS) (#12-89664) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.28 ~~$6.60~~
10	SPRING, ANCHOR PIN (1/2-20 THREADS) (#24-49593) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	NLA
11	BUSHING, RUBBER (1/2-20 THREADS) (#23-90203) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
12	WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS) (#12-89665) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.60 ~~$7.00~~
13	NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS) (#11-35000) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$11.20 ~~$14.00~~
2	PIN ASSEMBLY, ANCHOR (REAR) (7/16-20 THREADS) (#17-14874A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	WASHER, REAR ANCHOR PIN (7/16-20 THREADS) (#12-89664) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.28 ~~$6.60~~
5	BUSHING, RUBBER (7/16-20 THREADS) (#23-90203) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
6	WASHER, (.450 x 1.75 x .12), REAR ANCHOR PIN (7/16-20 THREADS) (#12-44163) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.96 ~~$3.70~~
7	NUT, (.4375-20), REAR ANCHOR PIN (7/16-20 THREADS) (#11-859116) Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: 11-13439 1 Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: 11-13439 1	$3.92 ~~$4.90~~
7A	CAP, REAR ANCHOR PIN (7/16-20 THREADS) (#19-14842) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.80 ~~$3.49~~
8	PIN KIT, ANCHOR (FRONT) (7/16-20 THREADS) (#17-14875A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	WASHER, (.920 x 1.750 x .060), FRONT ANCHOR PIN (7/16-20 THREADS) (#12-89664) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.28 ~~$6.60~~
11	BUSHING, RUBBER (7/16-20 THREADS) (#23-90203) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
12	WASHER, (.450 x 1.75 x .12), FRONT ANCHOR PIN (7/16-20 THREADS) (#12-44163) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.96 ~~$3.70~~
13	NUT, (.4375-20), FRONT ANCHOR PIN (7/16-20 THREADS) (#11-859116) Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: 11-13439 1 Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: 11-13439 1	$3.92 ~~$4.90~~
7A	CAP, FRONT ANCHOR PIN 97/16-20 THREADS) (#19-14842) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.80 ~~$3.49~~
14	HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2") (#32-86036Q) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$47.60 ~~$49.49~~
15	HOSE, CONNECTOR TO VALVE (25")- PRESTOLITE PUMP (#32-63158A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$79.04 ~~$86.67~~
16	HOSE, CONNECTOR PUMP (50-1/2") -PRESTOLITE PUMP (#32-63157A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$95.23 ~~$104.42~~
15	HOSE, CONNECTOR TO VALVE (47-1/2") -OILDYNE PUMP (#32-97010A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	HOSE, CONNECTOR TO PUMP (46")- OILDYNE PUMP (#32-97009A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	TUBING, PUMP TO REVERSE LOCK VALVE (40") (#32-8M0111655) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	NUT, COMPRESSION - HYDRAULIC TUBING (#22-49718) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.20 ~~$4.00~~
19	HOSE, PORT CYLINDER (#32-87558) Qty Required For Repair: 1 Minimum Order Qty: 1	$106.32 ~~$116.58~~
20	HOSE, STARBOARD CYLINDER (#32-87559) Qty Required For Repair: 1 Minimum Order Qty: 1	$97.81 ~~$107.25~~
21	PLATE, CLAMPING - HYDRAULIC HOSE (#85060) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$6.72 ~~$8.40~~
22	SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE (#10-85486) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$1.36 ~~$1.70~~

MERCRUISER TR (200 RATIO) TRS (1.50 RATIO) STERN DRIVE TRIM CYLINDERS AND HOSES(EXTERNAL LINES)
