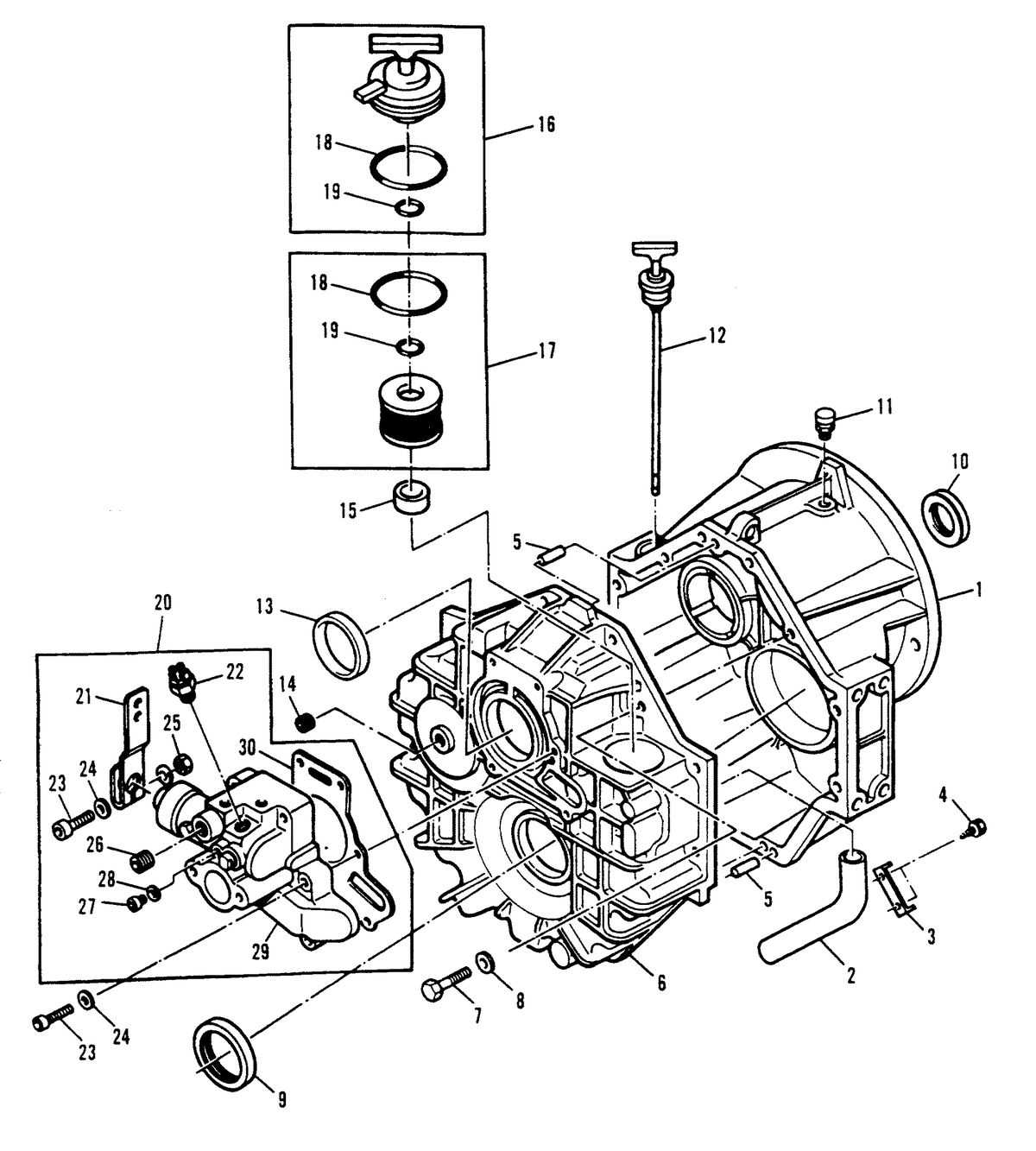

TRANSMISSION (800 SERIES DIRECT DRIVE) (COVER)

Ref ID	Description	Price
-	TRANSMISSION ASSEMBLY (2.5:1 RATIO) (#806729A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	TRANSMISSION ASSEMBLY (2.8:1 RATIO) (#806730A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$3,773.94 ~~$4,492.79~~
1	COVER (#811943) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	HOSE (#32-811941) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	RETAINING PLATE (#813288) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	SCREW (#10-813287) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	DOWEL PIN (#17-813291) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	HOUSING (#811942) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	SCREW (#10-813282) Qty Required For Repair: 14 Minimum Order Qty: 1 Supersedes: F2320, 10-817240, FI3090003 Qty Required For Repair: 14 Supersedes: F2320, 10-817240, FI3090003	NLA
8	LOCKWASHER (#13-813281) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	OIL SEAL (#26-813292) Qty Required For Repair: 1 Minimum Order Qty: 1	$104.73 ~~$114.83~~
10	OIL SEAL (#26-813286) Qty Required For Repair: 1 Minimum Order Qty: 1	$93.71 ~~$102.75~~
11	VENT CAP (#813280) Qty Required For Repair: 1 Minimum Order Qty: 1	$71.92 ~~$74.92~~
12	DIPSTICK (#811939) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	CENTERING RING (#811938) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	PLUG (#22-813302) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	WASHER (#12-813303) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	COVER (INCLUDES RET.18 & 19) (#36-811940) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-813304 Supersedes: 35-813304	NLA
17	FLUID FILTER KIT (#35-879194241) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-815419, 35-813405A 1, FI9608751, FFF001138, 35-813405 Supersedes: 35-815419, 35-813405A 1, FI9608751, FFF001138, 35-813405	$156.99 ~~$182.99~~
18	O-RING (#25-813407) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.20 ~~$24.17~~
19	O-RING (#25-813406) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	CONTROL BLOCK (#813295) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 811944 Supersedes: 811944	NLA
21	SHIFT LEVER (#813298) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	NEUTRAL SAFETY SWITCH (#87-813300) Qty Required For Repair: 1 Minimum Order Qty: 1	$156.48 ~~$183.67~~
23	SCREW (#10-813294) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
24	LOCKWASHER (#13-813293) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
25	NUT (#11-813299) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	PLUG (#22-811959) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	SCREW (#10-813296) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	WASHER (#12-811958) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	CONTROL BLOCK (#813295) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 811944 Supersedes: 811944	NLA
30	GASKET (#27-813301) Qty Required For Repair: 1 Minimum Order Qty: 1	$58.72 ~~$61.17~~

This assembly is found in these models:

MERCRUISER > 8.2L MIE GEN. V GM 502 V-8 1993-1996
