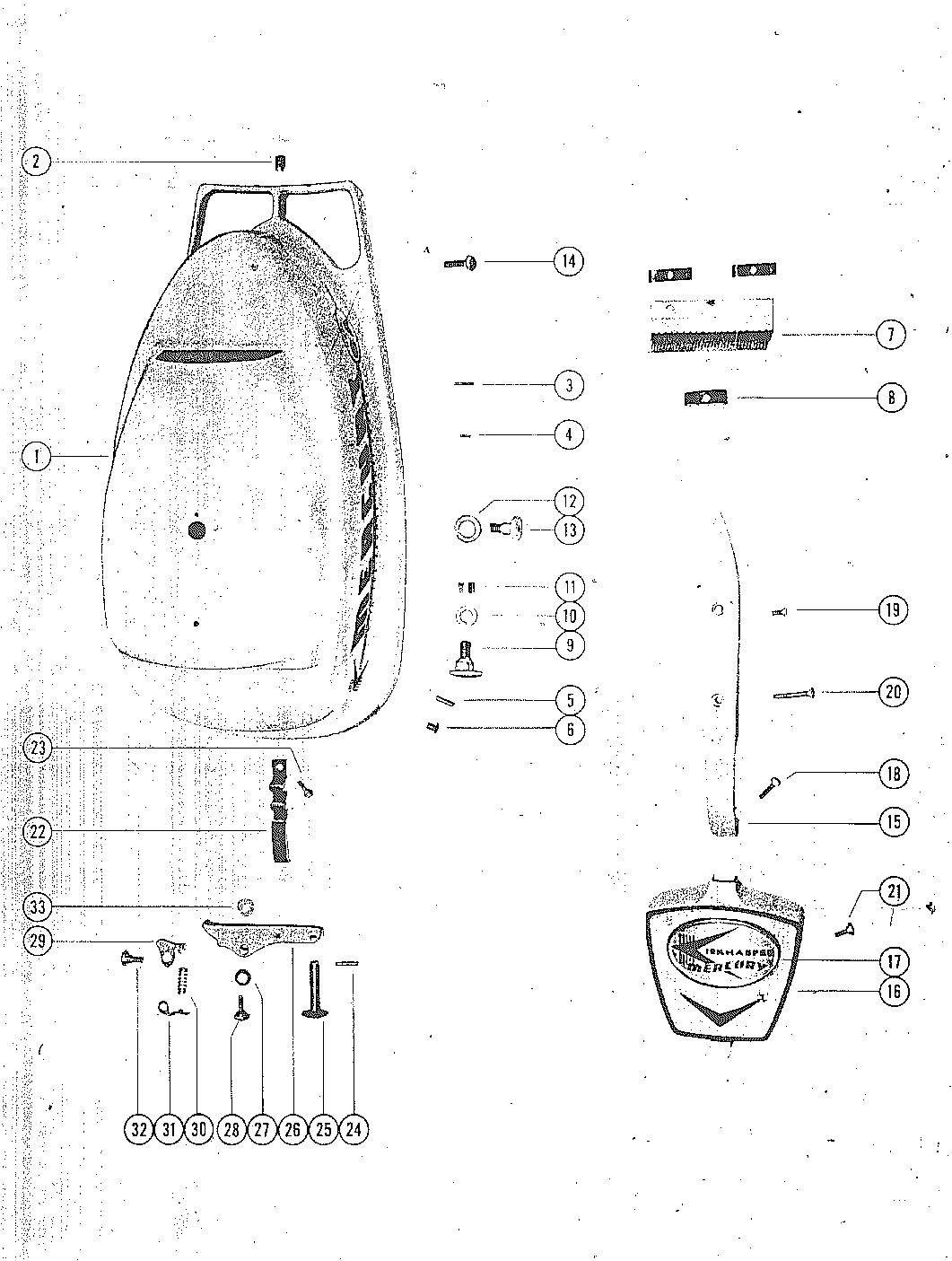

TOP COWL ASSEMBLY(MK6A)

Ref ID	Description	Price
1	TOP COWL ASSEMBLY (#119-1503A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	INSERT, TAP LOCK (#21041) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	PIN, ANCHOR - STARTER SPRING (#17-22078) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	PIN, ROLL - SHEAVE SHAFT RETAINING (#17-20563) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	PIN, ROLL - LOCATING (#17-24814) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	BUMPER, RUBBER - TOP COWL (#20721) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	SCREEN, VENT - TOP COWL (#28768) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	NUT, SCREEN TO TOP COWL (#11-22425) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
9	GUIDE, STARTER CABLE (#23318) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	LOCKWASHER, CABLE GUIDE (#13-20758) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	NUT, CABLE GUIDE TO TOP COWL (#11-23320) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	LOCKWASHER, SHEAVE SHAFT SCREW (#13-22021) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	SCREW, SHEAVE SHAFT TO TOP COWL (#10-23530) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SCREW, TOP COWL TO BOTTOM COWL (#10-24852) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	HANDLE, TOP COWL (#28769) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	SHIELD ASSEMBLY, FRONT COWL (#28677A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	EMBLEM, FRONT COWL SHIELD (#26183A5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	SCREW, HANDLE TO SHIELD (5/8") (#10-28704) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	SCREW, HANDLE TO TOP COWL (1/2") (#10-25501) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	SCREW, HANDLE TO TOP COWL (1 1/4") (#10-24828) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	SCREW, SHIELD TO COWL (#10-28705) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
22	CATCH, DRAW BOLT (#24924) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	CSREW, DRAW BOLT CATCH TO COWL (#10-28705) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	PIN, FORWARD KNOB TO TRIP LEVER (#17-24800) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.72 ~~$0.90~~
25	KNOB, FORWARD (#23917) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	LEVER, TRIP - NEUTRAL (#22865) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	WASHER, TRIP LEVER SCREW (TOP) (#12-22887) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	SCREW, TRIP LEVER TO TOP COWL (#10-22866) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	DETENT, NEUTRAL (#22867) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	SPRING, DETENT (#24-22870) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	RETAINER, DETENT SPRING (#22869) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	SCREW, DETENT TO TOP COWL (#10-22868) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	WASHER, TRIP LEVER SCREW (BOTTOM) (#12-22894) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MARK > MARK 6, 6A
