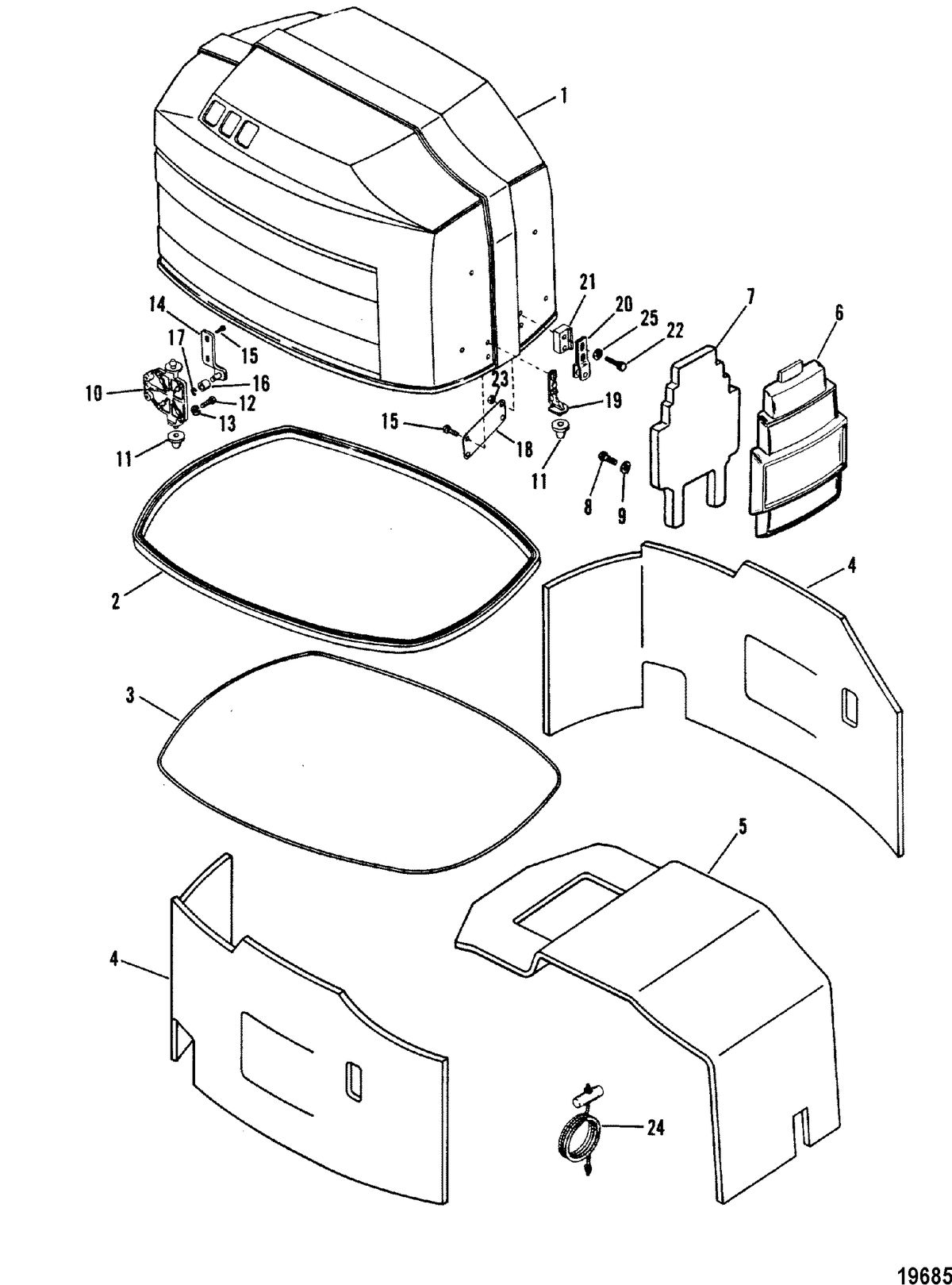

MARINER - V-135 - Top Cowl and Front Shield

Ref ID	Description	Price
-	EMBLEM (#38-17996) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
-	EMBLEM, PORT/STARBOARD-SEA RAY (#37-179061) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
1	TOP COWL ASSEMBLY (BLACK) (#2196-9742T88) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	TOP COWL ASSEMBLY (GRAY) (#2196-9743T11) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SEAL (#812784) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SEAL (#815478) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 813566 Supersedes: 813566	NLA
4	SOUND BLANKET (SIDE) (#814823) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 813670 Supersedes: 813670	NLA
5	SOUND BLANKET (TOP) (#814837) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 813671 Qty Required For Repair: 2 Supersedes: 813671	NLA
6	FRONT SHIELD ASSEMBLY (BLACK) (#18755A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	FRONT SHIELD ASSEMBLY (GRAY) (#18755A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	SEAL (#813562) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	SCREW, (#10-16 x .625) (#10-48409) Qty Required For Repair: 4 Minimum Order Qty: 2 Qty Required For Repair: 4 Minimum Order Qty: 2	$1.92 ~~$2.40~~
9	WASHER (#12-42118) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$2.99 ~~$3.10~~
10	BRACKET, REAR (#184741) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	GROMMET (#25-18506001) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
12	SCREW, (.250-20 x .750), REAR BRACKET (#10-28636) Qty Required For Repair: 8 Minimum Order Qty: 5 Qty Required For Repair: 8 Minimum Order Qty: 5	$1.36 ~~$1.70~~
13	LOCKWASHER, (.250), REAR BRACKET SCREW (#13-26992) Qty Required For Repair: 8 Minimum Order Qty: 5 Qty Required For Repair: 8 Minimum Order Qty: 5	$0.96 ~~$1.20~~
14	HOOK (#813096A2) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	SCREW, (.250-20 x .500) (#10-73286) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$1.36 ~~$1.70~~
16	ROLLER (#8M0207770) Qty Required For Repair: 2 Qty Required For Repair: 2	$6.96 ~~$8.70~~
17	RING, Retaining (#53-13194) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$1.12 ~~$1.16~~
18	PLATE (#813553) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	LOCATOR (#187021) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	BRACKET (#893763) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 18173 Supersedes: 18173	$29.28 ~~$30.50~~
21	SPACER (#813552) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	SCREW, (.312-18 x 1.375) (#10-31984) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
23	NUT, (.312-18) (#11-82670910) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$5.52 ~~$6.90~~
24	ROPE AND HANDLE KIT (FOR MANUAL STARTING) (#47341A11) Qty Required For Repair: 1 Minimum Order Qty: 1	$16.80 ~~$17.50~~
25	WASHER, (.323 x .563 x .063) (#12-8M0042642) Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: 12-70132 Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: 12-70132	$1.36 ~~$1.70~~
-	REAR LATCH KIT (#813096A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

MERCURY/MARINER 135 HP/ 150 HP (V-6) Top Cowl and Front Shield

Notes

1: ORDER 813096A 1 REAR LATCH KIT WHEN REPLACING NON-ROLLER COMPONENTS. (A PRODUCT IMPROVEMENT)

This assembly is found in these models:

MERCURY > V-135
MARINER > V-150
