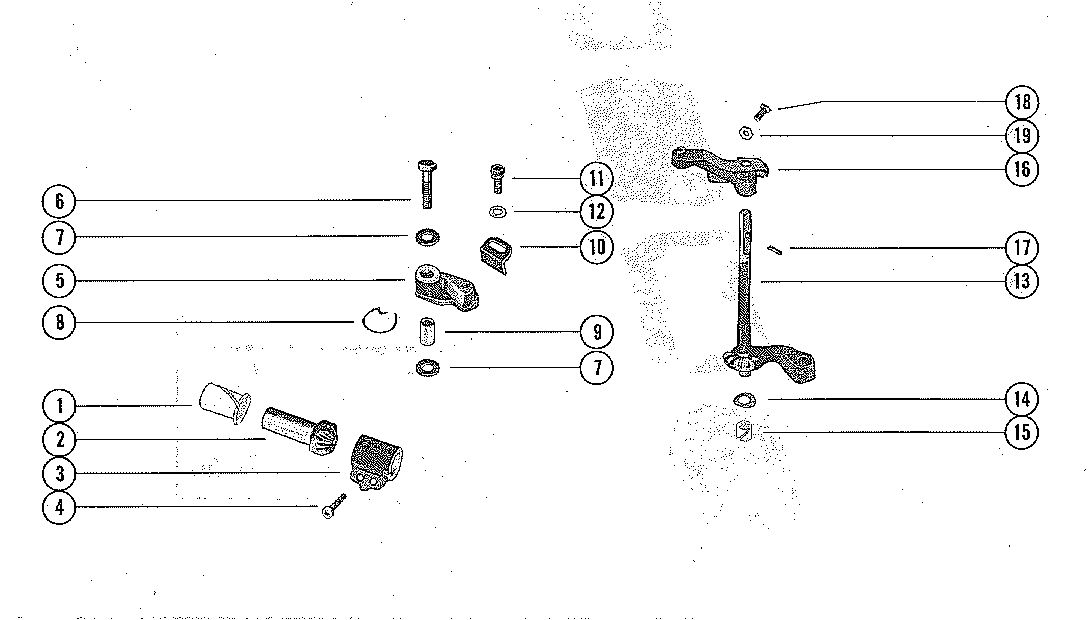

MERCURY - 75 - THROTTLE CONTROL LINKAGE

Ref ID	Description	Price
1	BUSHING, NYLON - THROTTLE CONTROL SOCKET (#23-31011) Comment: SERIAL 00000000-#3488152 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-#3488152	NLA
2	GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET (#43-60856) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	HOUSING, THROTTLE CONTROL (#60885T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8") (#10-96138) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER (#63308A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8") (#10-21091) Comment: SERIAL 00000000-#3488152 Qty Required For Repair: 1 Minimum Order Qty: 5 SERIAL 00000000-#3488152 Minimum Order Qty: 5	NLA
6	SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8") (#10-20653) Comment: SERIAL #3488153-09999999 Qty Required For Repair: 1 Minimum Order Qty: 5 SERIAL #3488153-09999999 Minimum Order Qty: 5	$1.36 ~~$1.70~~
7	WASHER, SPEED LIMITER FOLLOWER SCREW (#12-8M0174819) Qty Required For Repair: 2 Qty Required For Repair: 2	$6.80 ~~$8.50~~
8	SPRING, NEUTRAL SPEED LIMITER FOLLOWER (#24-39042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	BUSHING, SPEED LIMITER FOLLOWER SCREW (#23-30972) Comment: SERIAL 00000000-#3488152 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-#3488152	NLA
9	BUSHING, SPEED LIMITER FOLLOWER SCREW (#23-63320) Comment: SERIAL #3488153-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL #3488153-09999999	NLA
10	STOP, NEUTRAL SPEED LIMITER (#36017) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8") (#10-28710) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	WASHER, NEUTRAL SPEED LIMITER SPEED LIMITER STOP SCREW (#12-24676) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.12 ~~$1.40~~
13	GEAR AND SHAFT, THROTTLE CONTROL (#63697A1) Comment: SERIAL 00000000-#3488152 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-#3488152	NLA
13 & 1	GEAR AND SHAFT, THROTTLE CONTROL (#63697A1) Comment: SERIAL 0#388153-0Z999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 0#388153-0Z999999	NLA
14	SHIM ASSEMBLY, GEAR AND SHAFT (LOWER) (#15-64653A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	BUSHING, NYLON - GEAR AND SHAFT TO BOTTOM COWL (#23-61615) Comment: SERIAL 00000000-#3488152 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-#3488152	NLA
16	LEVER, THROTTLE CONTROL (#63697A1) Comment: SERIAL 00000000-#3488152 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-#3488152	NLA
17	PIN, ROLL - THROTTLE CONTROL LEVER TO THROTTLE CONTROL SHAFT (#17-27088) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
18	SCREW, ADJUSTING - THROTTLE ADVANCE (1") (#10-23015) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
19	NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW (#11-68219) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.32 ~~$2.90~~
