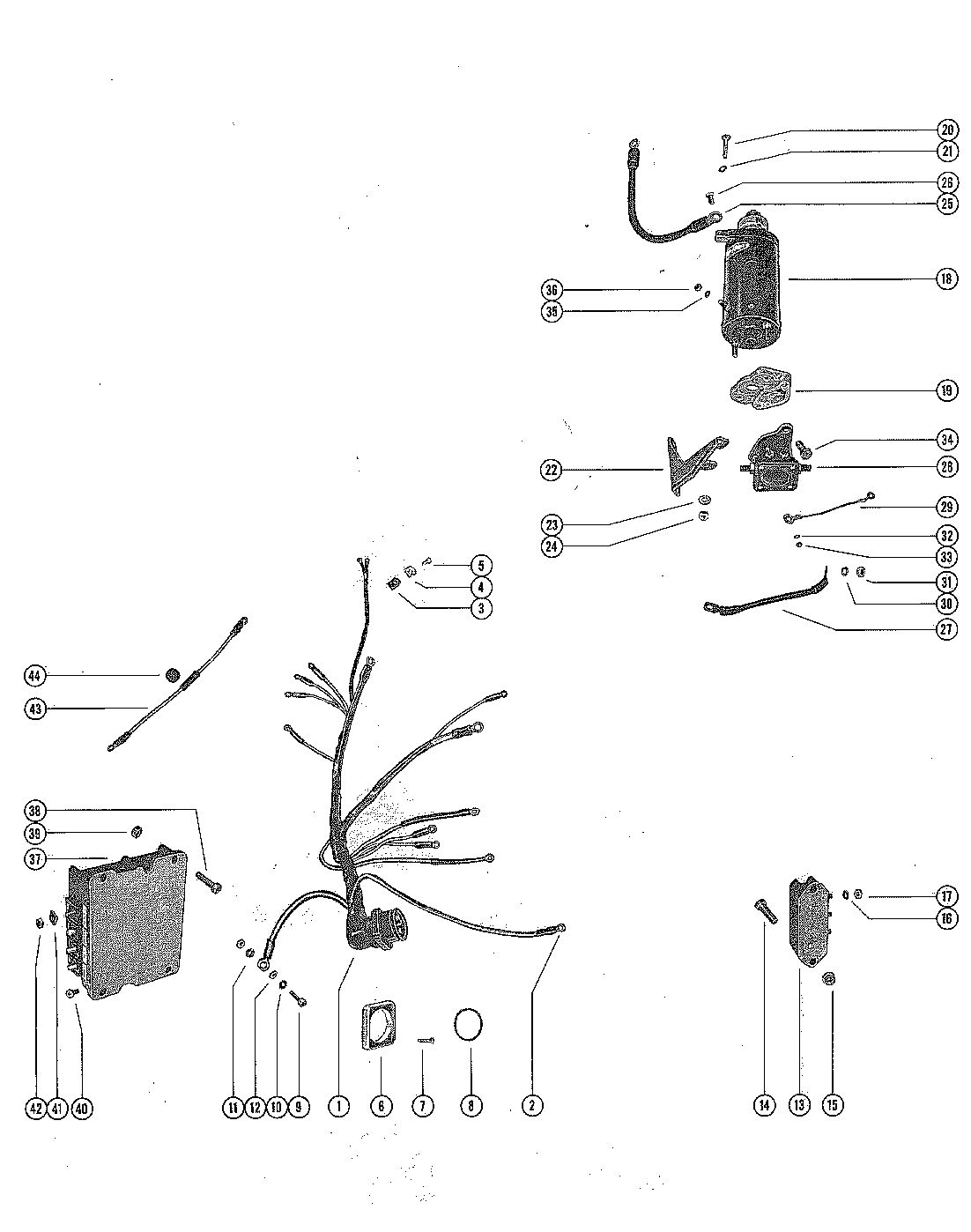

STR MTR,STR SOLENOID,RECTIFIER AND WIRING HARNES(1100E-SS-1)

Ref ID	Description	Price
1	WIRING HARNESS, INTERNAL (#46463) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	TERMINAL, HARNESS AND MERCURY SWITCH LEADS (#30050) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
3	CLIP, WIRING HARNESS TO FRONT BRACKET (1?8") (#54-648552) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.68 ~~$4.60~~
4	'D" WASHER, WIRING HARNESS CLIP SCREW (#8M0084613) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 69205 Supersedes: 69205	$0.88 ~~$1.10~~
5	SCREW, WIRING HARNESS TO FRONT BRACKET (3/8") (#10-8M0113176) Qty Required For Repair: 1	$0.88 ~~$1.10~~
3	CLIP, WIRING HARNESS TO FRONT BRACKET (9/16") (#54-23567) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$4.48 ~~$5.60~~
4	"D" WASHER, WIRING HARNESS TO FRONT BRACKEET (#10-69079) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.96 ~~$1.20~~
5	SCREW, WIRING HARNESS CLIP TO FRONT BRACKET (7/16") (#8M0084613) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 69205 Qty Required For Repair: 2 Supersedes: 69205	$0.88 ~~$1.10~~
6	PLATE, WIRING HARNESS TO BOTTOM COWL (#26079A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.60 ~~$19.50~~
7	SCREW, HARNESS PLATE FASTENING (#10-45893) Qty Required For Repair: 4 Minimum Order Qty: 10 Qty Required For Repair: 4 Minimum Order Qty: 10	NLA
8	SPRING, GRATER - INTERNAL WIRING HARNESS (#24-28975) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	SCREW, GROUND WIRE TO BOTTOM COWL (#10-45087) Comment: SERIAL 00000000-02208677 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02208677	NLA
9	SCREW, GROUND WIRE TO BOTTOM COWL (#10-98256) Comment: SERIAL 02208678-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02208678-09999999	NLA
10	LOCKWASHER, GROUND WIRE SCREW (#13-25244) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	LOCKWASHER, GROUND WIRE SCREW (#13-24669) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
12	NUT, GROUND WIRE SCREW (#11-20088) Comment: SERIAL 00000000-02208677 Qty Required For Repair: 2 Minimum Order Qty: 5 SERIAL 00000000-02208677 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
13	RECTIFIER ASSEMBLY (#78614A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$150.94 ~~$165.50~~
14	SCREW, RECTIFIER TO MOUNTING SCREW (#10-22485) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	NUT, RECTIFIER MOUNTING SCREW (#11-8M0207775) Qty Required For Repair: 2 Qty Required For Repair: 2	$7.52 ~~$9.40~~
16	WASHER, RECTIFIER STATOR LEAD TERMINAL (#12-45075) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
17	NUT, FASTENING - RECTIFIER STATOR LEADS (#11-45076) Qty Required For Repair: 3 Minimum Order Qty: 10 Qty Required For Repair: 3 Minimum Order Qty: 10	$1.36 ~~$1.70~~
18	STARTER MOTOR ASSEMBLY (#50-45822A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	PLATE, SPACER - STARTER MOTOR (#45125) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	SCREW, STARTER MOTOR TO CRANKCASE FLANGE (#10-22698) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
21	LOCKWASHER, STARTER MOTOR FASTENING SCREW (#13-8M0204647) Qty Required For Repair: 2 Qty Required For Repair: 2	$1.36 ~~$1.70~~
22	BRACKET, SUPPORT - STARTER MOTOR (#38747) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	LOCKWASHER, THRU BOLT (#13-24669) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
24	NUT, THRU BOLT - BRACKET TO STARTER MOTOR (#11-20088) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
25	CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET (#84-93389A12) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	SCREW, HARNESS GROUND LEAD TO STARTER MOTOR (#10-69035) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.36 ~~$1.70~~
27	CABLE, WIRE - STARTER MOTOR TO SOLENOID (#84-93388A14) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.56 ~~$19.33~~
28	SOLENOID, STARTER (#32082) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	GROUND STRAP ASSEMBLY, STARTER SOLENOID (#46466) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	LOCKWASHER, SOLENOID TERMINAL (5/16") (#13-8M0204647) Qty Required For Repair: 2 Qty Required For Repair: 2	$1.36 ~~$1.70~~
31	NUT, SOLENOID TERMINAL (5/16") (#11-22053) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.16 ~~$0.20~~
32	LOCKWASHER, SOLENOID TERMINAL (#10) (#13-26996) Qty Required For Repair: 2 Minimum Order Qty: 15 Qty Required For Repair: 2 Minimum Order Qty: 15	$0.96 ~~$1.20~~
33	NUT, SOLENOID TERMINAL (#10) (#11-68219) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.32 ~~$2.90~~
34	SCREW, SOLENOID TO STARTER MOTOR (#10-29282) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
35	LOCKWASHER, STARTER MOTOR TERMINAL (#13-26992) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.96 ~~$1.20~~
36	NUT, STARTER MOTOR TERMINAL (#11-20890) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.28 ~~$1.60~~
37	SWITCH BOX ASSEMBLY (#332-2986A21) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (#10-64278) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
39	NUT, SWITCH BOX SCREW (#11-8M0207775) Qty Required For Repair: 4 Qty Required For Repair: 4	$7.52 ~~$9.40~~
40	SCREW, SWITCH BOX (#10-45218) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
41	WASHER, SWITCH BOX TERMINAL (#12-45075) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
42	NUT, SWITCH BOX TERMINAL (#11-45076) Qty Required For Repair: 7 Minimum Order Qty: 10 Qty Required For Repair: 7 Minimum Order Qty: 10	$1.36 ~~$1.70~~
43	WIRE, RECTIFIER TO SWITCH BOX (USED ON EARLY MODELS) (#45146) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	GROMMET, RECTIFIER TO SWITCH BOX WIRE (#25-26547) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MERCURY > 1100
