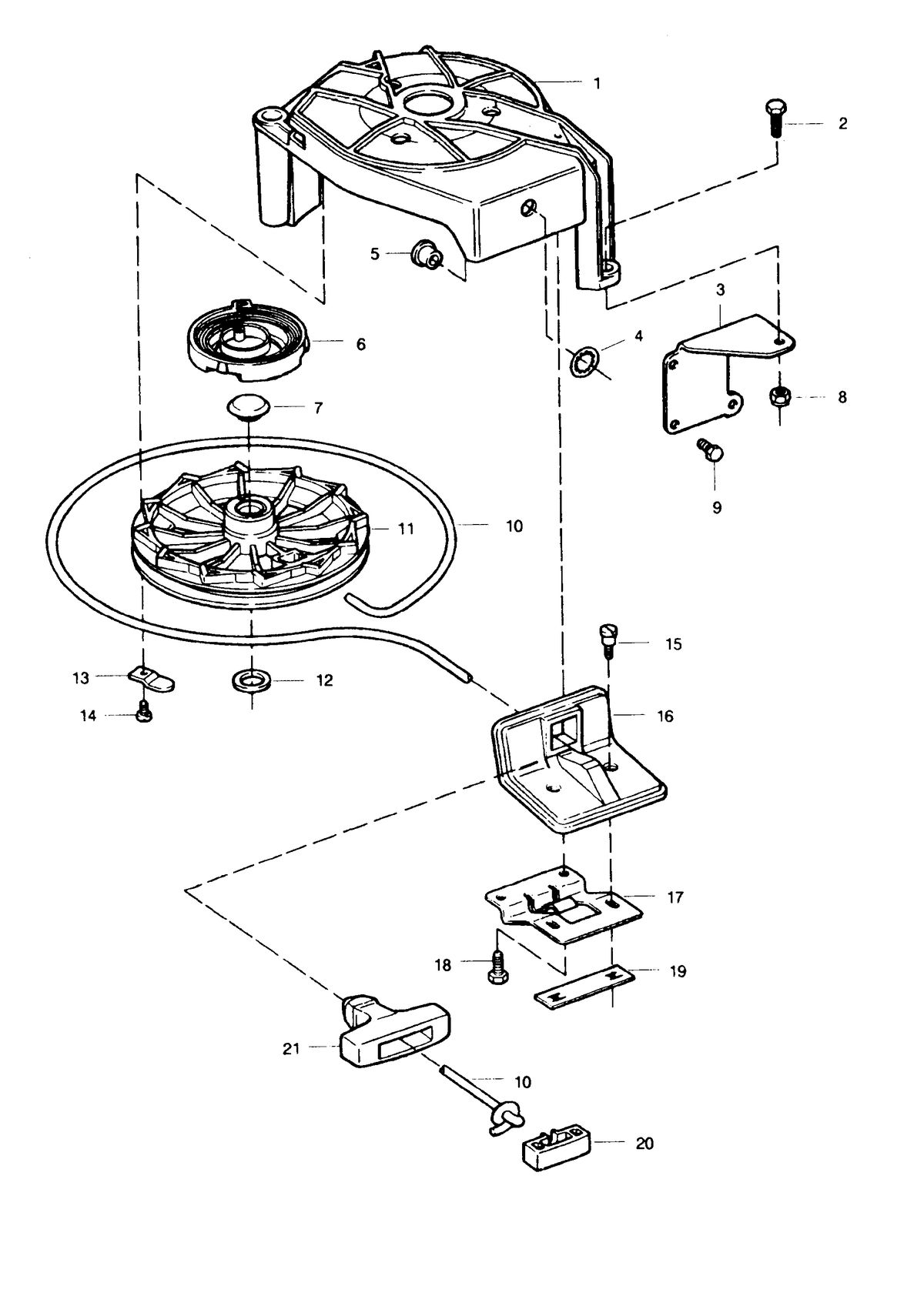

SEARS - 9.9 H.P. (1992-1993) - Starter

Ref ID	Description	Price
1	Housing (#681408 1) Qty Required For Repair: 1	NLA
2	Screw, hex head 1/4 - 20 x 3/4 S.S. (#1399-1864) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
3	Bracket (#681427 2) Qty Required For Repair: 1	NLA
4	Ring, retaining (#681741) Qty Required For Repair: 1	NLA
5	Insert, starter housing rope (#681428) Qty Required For Repair: 1	NLA
6	Spring, starter rewind (#681970) Qty Required For Repair: 1	NLA
7	Plug (#681971) Qty Required For Repair: 1	NLA
8	Locknut, 1/4 - 20 (#1832) Qty Required For Repair: 1	NLA
9	Screw, fill. head 10 - 24 x 9/16 (#1090) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
10	Rope (#681232) Qty Required For Repair: 1	NLA
11	Starter pulley assembly w/plug and seal (#A681239) Qty Required For Repair: 1	NLA
12	Seal (#681579) Qty Required For Repair: 1	NLA
13	Retainer, starter pulley (#681592) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
14	Screw, pan head 10 - 16 x 1/2 S.S. (#2209) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
15	Screw, shoulder (#84026) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
16	Support, handle (#A681630) Qty Required For Repair: 1	NLA
17	Plate, handle support (#681090) Qty Required For Repair: 1	NLA
18	Screw, pan head 1/4 - 14 x 1/2 S.S. (#1335-2210) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
19	Fastener, handle support plate (#681874) Qty Required For Repair: 1	NLA
20	Retainer, starter rope (#681817) Qty Required For Repair: 1	NLA
21	Handle, starter rope (#681132) Qty Required For Repair: 1	NLA

SEARS 9.9 H.P. STD. 20" LEG OUTBOARD MOTOR Starter

This assembly is found in these models:

SEARS > 9.9 H.P. (1992-1993)
