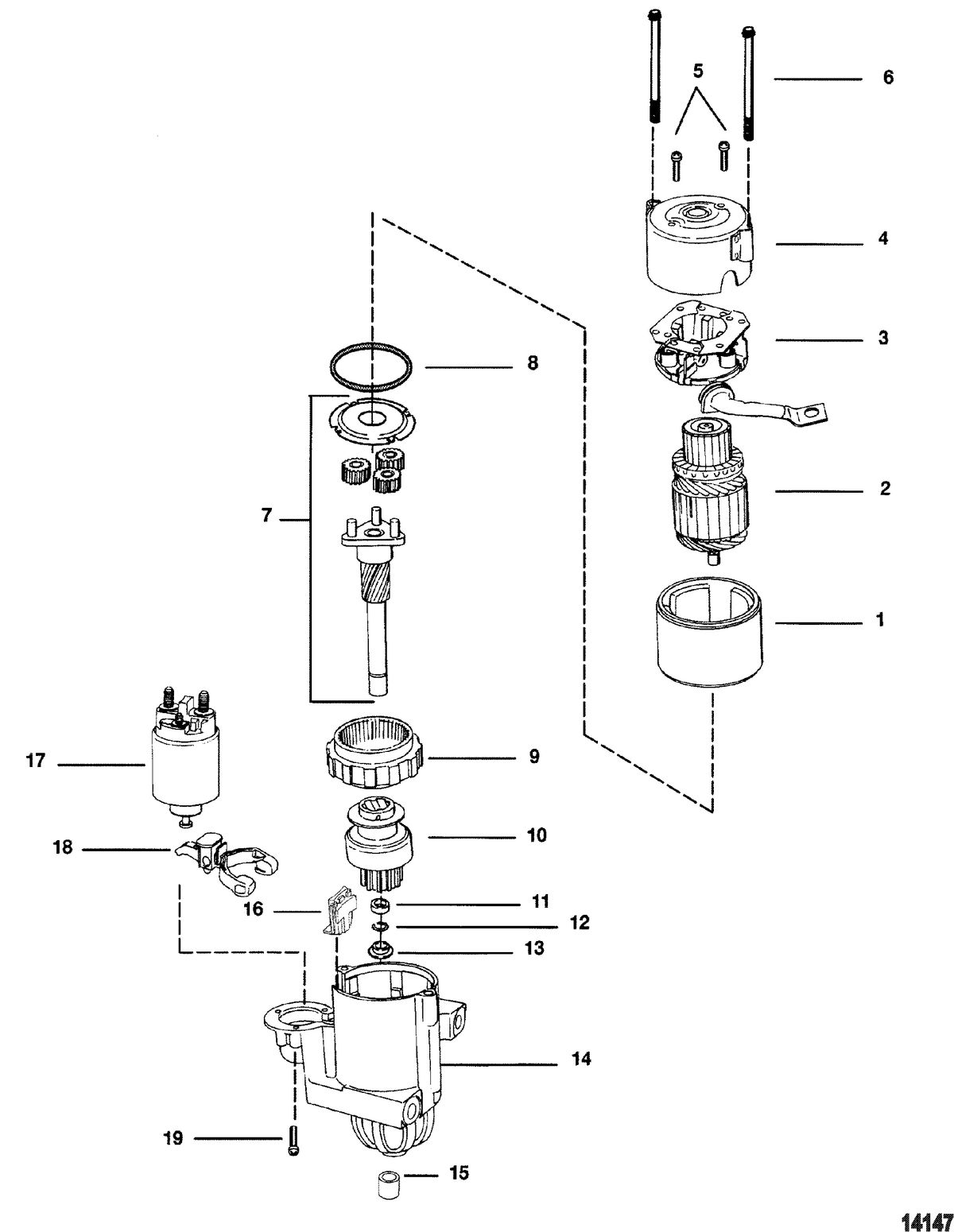

MERCRUISER - 5.0L EFI GM 305 V-8 1999-2001 - Starter Motor(PG260-F1)

Ref ID	Description	Price
1	STARTER MOTOR ASSEMBLY (#50-863007A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$250.99 ~~$292.49~~
2	NOT SOLD SEPARATE, Armature (#NSS) Qty Required For Repair: 1	NLA
3	NOT SOLD SEPARATE, Brush Holder And Spring (#NSS) Qty Required For Repair: 1	NLA
4	NOT SOLD SEPARATE, Frame (#NSS) Qty Required For Repair: 1	NLA
5	NOT SOLD SEPARATE, Screw (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
6	THRU BOLT, Add Size (#16-803004) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.44 ~~$4.30~~
6	THRU BOLT, Add Size (#10-803005) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	NOT SOLD SEPARATE, Shaft And Gear (#NSS) Qty Required For Repair: 1	NLA
8	NOT SOLD SEPARATE, Gasket (#NSS) Qty Required For Repair: 1	NLA
9	NOT SOLD SEPARATE, Gear (#NSS) Qty Required For Repair: 1	NLA
10	DRIVE (#803003) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	COLLAR (#33291) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	RING, Retaining (#53-33290) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
13	NOT SOLD SEPARATE, Collar Thrust (#NSS) Qty Required For Repair: 1	NLA
14	HOUSING, Drive (#803001T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 803001 Supersedes: 803001	NLA
15	BUSHING (#23-814476) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	NOT SOLD SEPARATE, Grommet (#NSS) Qty Required For Repair: 1	NLA
17	SOLENOID KIT (#809463A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$168.06 ~~$197.49~~
18	NOT SOLD SEPARATE, Lever (#NSS) Qty Required For Repair: 1	NLA
19	NOT SOLD SEPARATE, Screw (#NSS) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
