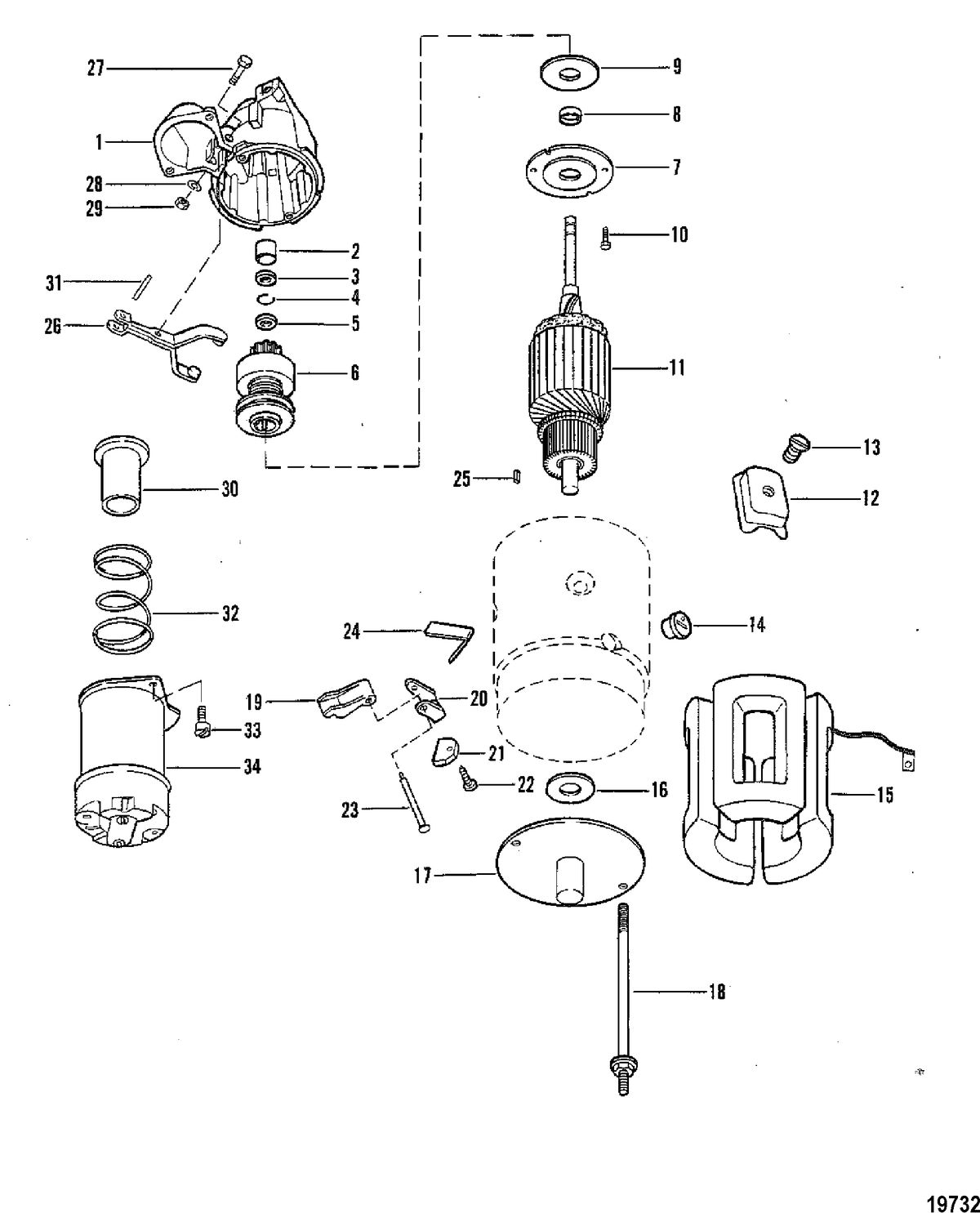

MERCRUISER - 5.7L MIE GM 350 V-8 1988-1993 - Starter Motor

Ref ID	Description	Price
-	STARTER MOTOR ASSEMBLY, L.H. ROTATION (DELCO REMY #1109485) (#50-808011A05) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 50-808011A 4 Supersedes: 50-808011A 4	$332.49 ~~$387.99~~
-	STARTER MOTOR ASSEMBLY, R.H. ROTATION (DELCO REMY #1109484) (#50-97499A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	HOUSING ASSEMBLY, Drive End, DRIVE END (#79206) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BUSHING, DRIVE END HOUSING (#23-33369) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	COLLAR, THRUST (#23-809457) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 814474, 33292 Supersedes: 814474, 33292	NLA
4	RING, Retaining, PINION STOP COLLAR (#53-33290) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
5	COLLAR, PINION STOP (#33291) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	DRIVE ASSEMBLY, CLUTCH (L.H. ROTATION) (#68608) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	DRIVE ASSEMBLY, CLUTCH (R.H. ROTATION) (#68609) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	PLATE, BEARING (#79396) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	BUSHING, BEARING PLATE (#23-71694) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	WASHER, BEARING PLATE (#12-68614) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	SCREW, BEARING PLATE (#10-75659) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	ARMATURE (L.H. ROTATION) (#68606) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	ARMATURE (R.H. ROTATION) (#68607) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	Not Sold Separate, SHOE, POLE - FIELD COIL (DELCO REMY #810601) (#N.S.S.) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
13	Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396) (#N.S.S.) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
14	Not Sold Separate, GROMMET, FIELD COIL - FIELD FRAME (DELCO REMY #1846097) (#N.S.S.) Qty Required For Repair: 1	NLA
15	Not Sold Separate, FIELD COIL (L.H. ROTATION) (DELCO REMY #1970467) (#N.S.S.) Qty Required For Repair: 1	NLA
15	COIL ASSEMBLY (R.H. ROTATION) (#75664) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	WASHER, Leather, LEATHER - COMMUTATOR END FRAME (#12-33258) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	FRAME, COMMUTATOR END - LOWER (#79211) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	Not Sold Separate, BOLT, THRU (DELCO REMY #1941111) (#N.S.S.) Qty Required For Repair: 1	NLA
18	Not Sold Separate, BOLT, THRU (DELCO REMY #1939970) (#N.S.S.) Qty Required For Repair: 1	NLA
19	HOLDER, INSULATED - FIELD FRAME BRUSH (#33284) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
20	HOLDER, FIELD FRAME BRUSH GROUND (#33283) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
21	BRUSH, FIELD FRAME (#33270) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$4.72 ~~$5.90~~
22	Not Sold Separate, SCREW-BRUSH LEAD (DELCO REMY #1967747) (#N.S.S.) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
22	Not Sold Separate, SCREW-BRUSH LEAD (DELCO REMY #443527) (#N.S.S.) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
23	SUPPORT, GROUND AND INSULATED HOLDERS (#33294) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
24	SPRING, FIELD FRAME BRUSH (#24-33285) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
25	Not Sold Separate, DOWEL PIN - FIELD FRAME (DELCO REMY #809593) (#N.S.S.) Qty Required For Repair: 1	NLA
26	LEVER, SHIFT (#33297) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	Not Sold Separate, STUD, SHIFT LEVER (DELCO REMY #1814529) (#N.S.S.) Qty Required For Repair: 1	NLA
28	WASHER, SHIFT LEVER STUD (#12-68615) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	NUT, (.312-18), SHIFT LEVER STUD (#11-8M0204646) Qty Required For Repair: 1	$3.84 ~~$4.80~~
30	PLUNGER, SHIFT LEVER (#33317) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	PIN, PLUNGER TO SHIFT LEVER (#17-79207) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	SPRING, PLUNGER RETURN (#24-46889) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	Not Sold Separate, SCREW, SOLENOID SWITCH (DELCO REMY #9413260) (#N.S.S.) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
34	SOLENOID SWITCH (4-1/4" LONG) (#13037) Qty Required For Repair: 1 Minimum Order Qty: 1	$78.20 ~~$85.75~~
34	SOLENOID SWITCH, (3.625) (#89-18080) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

MERCRUISER 230 HP/5.0L 260 HP/5.7L ENGINE Starter Motor

Notes

1: Part listed NSS (Not Sold Separate) should be ordered from local supplier using the appropriate manufacturer's part number.

Mercury Marine Parts Catalog

MERCRUISER - 5.7L MIE GM 350 V-8 1988-1993 - Starter Motor

Notes

This assembly is found in these models:
