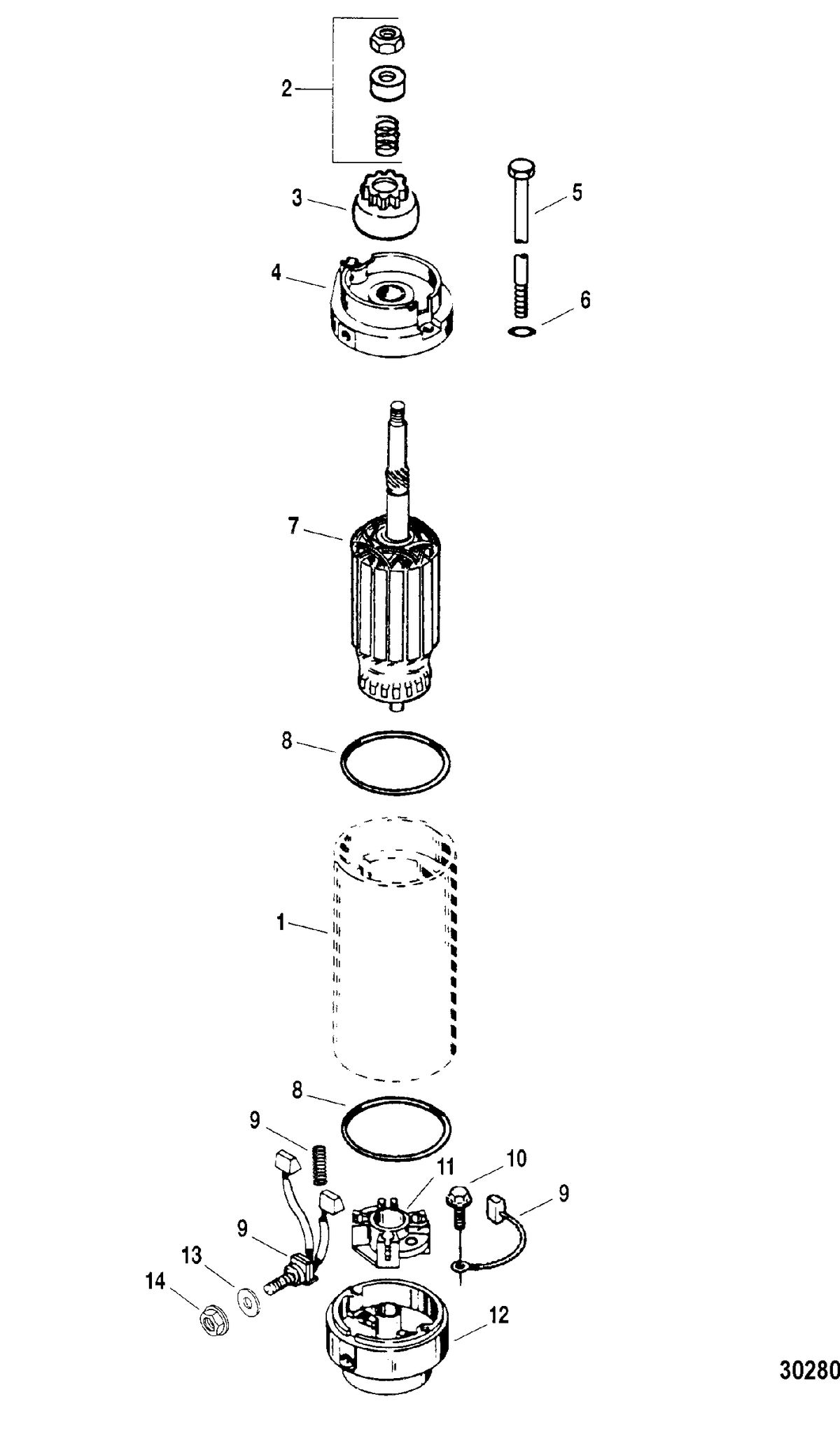

SPORTJET - 240 EFI JET DRIVE (POWERHEAD) - Starter Motor Assembly

Ref ID	Description	Price
1	STARTER MOTOR ASSEMBLY (#50-832997003) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 50-832997 2 Supersedes: 50-832997 2	NLA
2	DRIVE KIT, Pinion (#90645) Qty Required For Repair: 1 Minimum Order Qty: 1	$46.00 ~~$47.92~~
3	PINION ASSEMBLY, Drive (#13310T1) Qty Required For Repair: 1 Minimum Order Qty: 1	$64.00 ~~$66.67~~
4	CAP ASSEMBLY, Drive End (#851990) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	THRU BOLT (#10-749681) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.56 ~~$13.20~~
6	O-RING, Thru Bolt (#851995) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	ARMATURE (#851992) Qty Required For Repair: 1 Minimum Order Qty: 1	$100.78 ~~$110.50~~
8	O-RING, Starter Motor Frame (#852084) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 851994 Qty Required For Repair: 2 Supersedes: 851994	NLA
9	BRUSH/SPRING KIT (#898265016) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 75384, 75384 1 Supersedes: 75384, 75384 1	NLA
10	SCREW, Brush Holder (#F15158) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	HOLDER, Brush (#898265014) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 61787 Supersedes: 61787	NLA
12	CAP, Comm End (#851993) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	WASHER, Insulator - Brush Post (#12-804700) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F15160 Supersedes: F15160	NLA
14	NUT, Brush Post (#F15162) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F15072, FA15072 Supersedes: F15072, FA15072	NLA

SPORTJET 240 EFI JET DRIVE Starter Motor Assembly

Mercury Marine Parts Catalog

SPORTJET - 240 EFI JET DRIVE (POWERHEAD) - Starter Motor Assembly

This assembly is found in these models:
