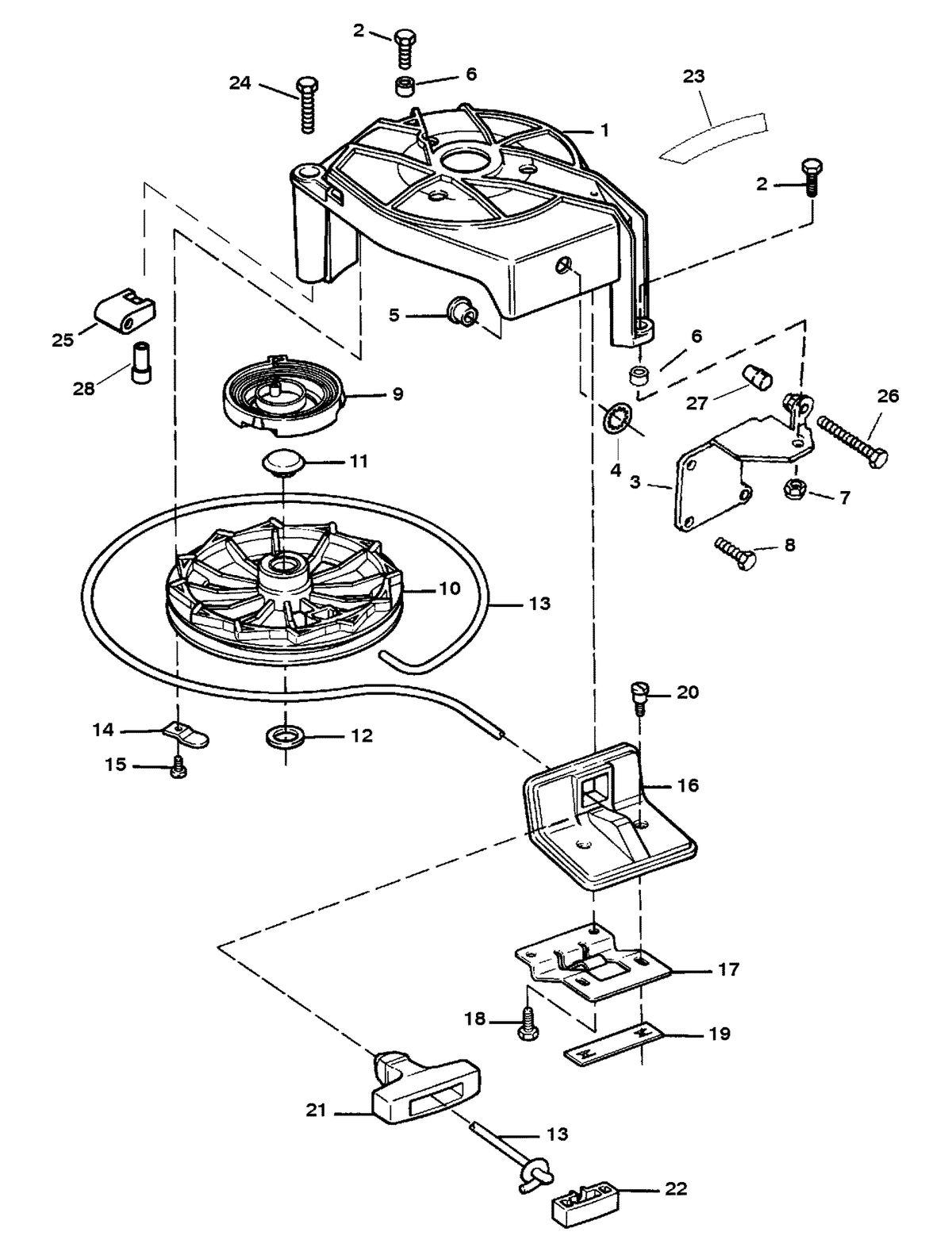

SEARS - 9.9 H.P. (1996-1997 1/2) - STARTER ASSEMBLY

Ref ID	Description	Price
1	HOUSING-STARTER (#826693) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SCREW (1/4-20 X 3/4") (#10-90192) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.36 ~~$1.70~~
3	BRACKET ASSEMBLY-STARTER HOUSING FRONT (#826559A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	RING-RETAINING (#53-818853) Qty Required For Repair: 1 Minimum Order Qty: 2 Supersedes: 53-42689 Minimum Order Qty: 2 Supersedes: 53-42689	$1.36 ~~$1.70~~
5	INSERT-STARTING HOUSING ROPE (#F681428) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	INSERT-STARTER HOUSING (#23-F681405T) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 23-F681405 Qty Required For Repair: 2 Supersedes: 23-F681405	NLA
7	NUT (1/4-20) (#11-8M0207776) Qty Required For Repair: 1	$5.44 ~~$6.80~~
8	SCREW (1/4-20 X 5/8") (#10-F1922) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: F1239, F1540 Qty Required For Repair: 4 Supersedes: F1239, F1540	NLA
9	SPRING-STARTER REWIND (#24-F681970) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	PULLEY ASSEMBLY-STARTER REWIND (#42034A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	PLUG (#19-817362) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 19-F681971 Supersedes: 19-F681971	$0.24 ~~$0.30~~
12	SEAL-PULLEY BEARING (#26-124941) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	ROPE (64/67") (#50-12066T03) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.92 ~~$9.89~~
14	RETAINER-STARTER PULLEY (#F681592) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
15	SCREW (10-16 X 1/2") (#10-48408) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$2.10 ~~$2.16~~
16	SUPPORT ASSEMBLY-HANDLE (#FA681630T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FA681630, F681953, F681630 Supersedes: FA681630, F681953, F681630	$35.76 ~~$37.25~~
17	PLATE-HANDLE SUPPORT (#F681090) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	SCREW (1/4-14 X 1/2") (#10-F2210) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
19	FASTENER-HANDLE SUPPORT PLATE (#F681874-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F681874 Supersedes: F681874	NLA
20	SCREW-SHOULDER (#10-819625) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-F84026 Qty Required For Repair: 2 Supersedes: 10-F84026	NLA
21	HANDLE-STARTER ROPE (#F681132) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	RETAINER-STARTER ROPE (#F681817) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	DECAL KIT-SHIFT TO NEUTRAL (#37-825149A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	SCREW (1/4-20 X 1-1/4") (#10-F2030) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F2046 Supersedes: F2046	$2.64 ~~$3.30~~
25	RETAINER-THROTTLE CABLE (#830265) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	SCREW (1/4-28 X 2")-IDLE ADJUST (#10-826676) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	CAP-NYLON-IDLE ADJUST SCREW (#26852) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.04 ~~$3.80~~
28	SPACER-THROTTLE CABLE RETAINER (#23-830196) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

SEARS SEARS9.9 H.P (OUTBOARD MOTOR) W/6 GAL. REMOTE TANK STARTER ASSEMBLY

This assembly is found in these models:

SEARS > 9.9 H.P. (1996-1997 1/2)
