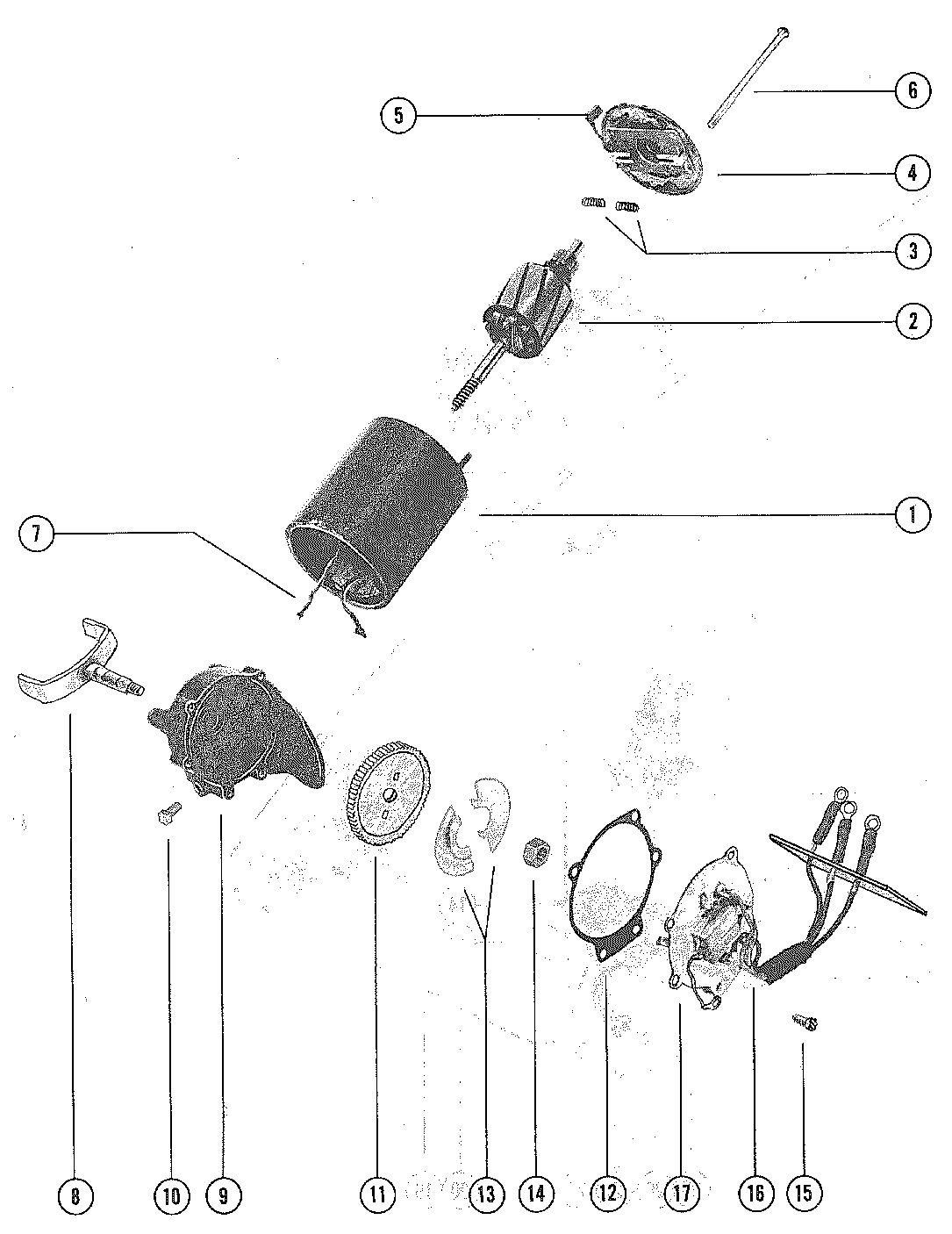

MERCRUISER - 228 MIE (4 BBL.) GM 305 V-8 1977-1978 - SHIFT ACTUATOR ASSEMBLY (MCM 228 TR)

Ref ID	Description	Price
1	SHIFT ACTUATOR ASSEMBLY, COMPLETE(SEE NOTE BELOW) (#69392A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	ARMATURE (#392-4949) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SPRING SET, BRUSH (#392-4960) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	HEAD ASSEMBLY, COMMUTATOR END (#392-4955) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	BRUSH SET (#392-4956) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	THRU BOLT (#392-4962) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	FIELD COIL ASSEMBLY (#392-5928) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	CRANK ARM ASSEMBLY (#392-4951) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	HEA ASSEMBLY, DRIVE END (#392-4957) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	SCREW AND DISC PACKAGE (#392-4959) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	GEAR AND GASKET PACKAGE (#392-4952) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	GASKET, COVER (#392-4953) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	PLATE, CAM (#392-4958) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	NUT, CRANK ARM (#11-20890) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.28 ~~$1.60~~
15	SCREW, COVER ATTACHING (3/8") (#10-47220) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
16	HARNESS ASSEMBLY (3 WIRE LEAD) (#84-62995A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	SWITCH PLATE (INCLUDES 1 PIECE OF REF. NO. 12) (#42528A6) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

MERCRUISER 228 ENGINE (G.M.) SHIFT ACTUATOR ASSEMBLY (MCM 228 TR)

Mercury Marine Parts Catalog

MERCRUISER - 228 MIE (4 BBL.) GM 305 V-8 1977-1978 - SHIFT ACTUATOR ASSEMBLY (MCM 228 TR)

This assembly is found in these models:
