MERCRUISER - D1.7L DTI - SERVICE AND SUPPORT MATERIAL

Ref ID	Description	Price
NS	D1.7L DTI STERNDRIVE (ALPHA), Parts ( D1.7L DTI ) (#90-883273) Qty Required For Repair: 1 Minimum Order Qty: 1	$26.40 ~~$21.50~~
NS	MANUAL, Service ( D1.7L DTI ) (#90-863016001) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 90-863016 Supersedes: 90-863016	$120.84 ~~$114.00~~
NS	MANUAL, Owners (#90-863136020) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 90-863136010 Supersedes: 90-863136010	$35.20 ~~$31.00~~

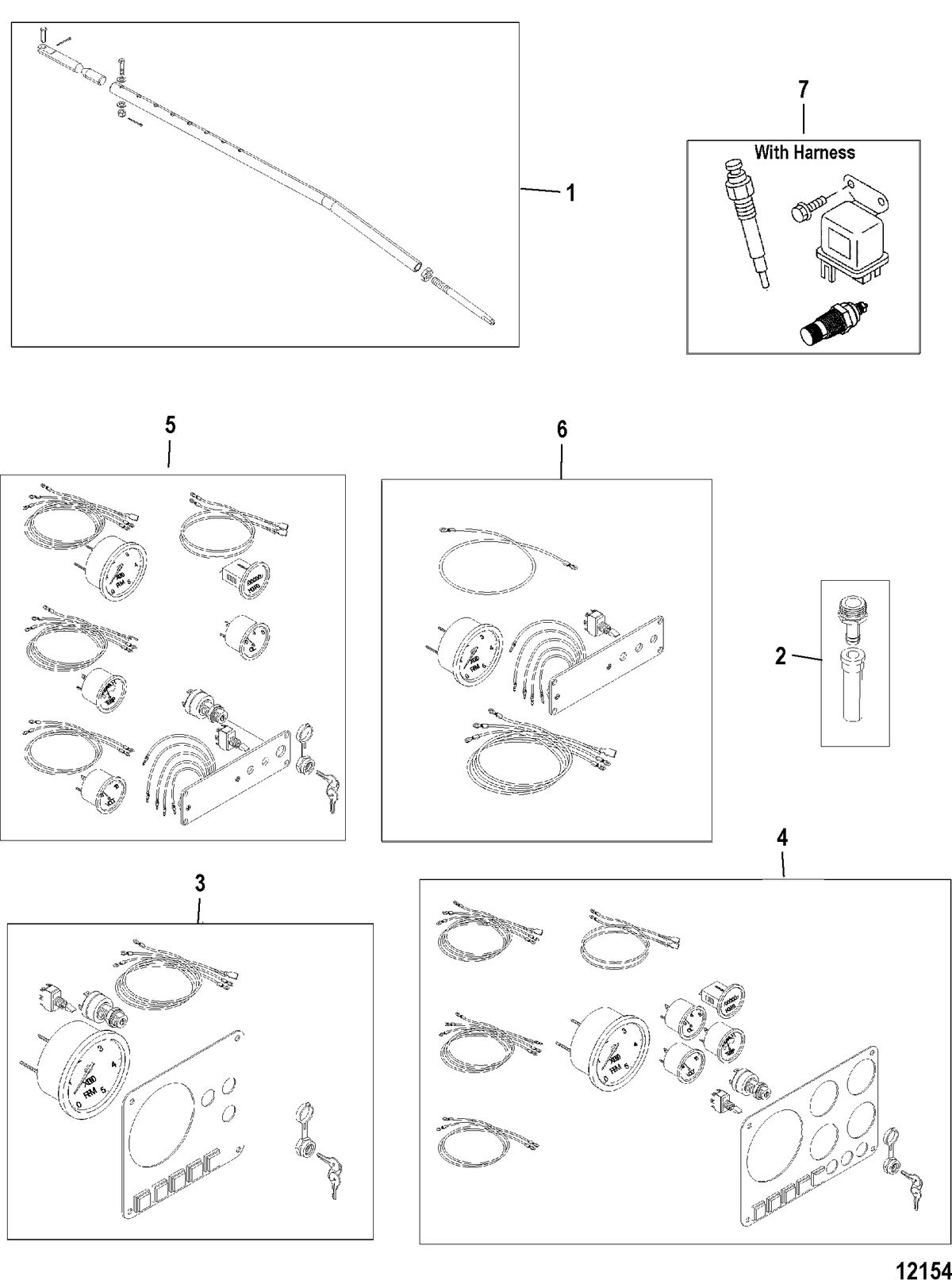

1	TIE BAR KIT (#92020A7) Qty Required For Repair: AR Qty Required For Repair: AR	NLA
2	HOSE, Oil Pump Adaptor (#32-863642) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	$28.16 ~~$29.33~~
3	INSTRUMENT PANEL KIT, Basic, Basic (#881800A1) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
4	INSTRUMENT PANEL KIT, Full, Full (#881801A1) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
5	GAUGE KIT, Primary Station (#850764A4) Comment: QSI Qty Required For Repair: 1 Minimum Order Qty: 1 QSI	NLA
5	GAUGE KIT, Primary Station (#79-850764A06) Comment: Admiral Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 850764A 5 Admiral Supersedes: 850764A 5	NLA
5	GAUGE KIT, Primary Station (#79-859701A22) Comment: Flagship Qty Required For Repair: 1 Minimum Order Qty: 1 Flagship	NLA
6	GAUGE KIT, Second Station (#850767A4) Comment: QSI Qty Required For Repair: 1 Minimum Order Qty: 1 QSI	NLA
6	GAUGE KIT, Secondary Station (#79-850767A06) Comment: Admiral Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 850767A 5 Admiral Supersedes: 850767A 5	NLA
6	GAUGE KIT, Secondary Station (#79-859707A1) Comment: Flagship Qty Required For Repair: 1 Minimum Order Qty: 1 Flagship	NLA
7	GLOW PLUG KIT (#889504A01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 889504 Supersedes: 889504	NLA
N.S.	HARNESS ASSEMBLY, (13 Feet), Extension, 4m (#84-860615002) Qty Required For Repair: AR Minimum Order Qty: 1 Supersedes: 84-860615, 84-862609, 84-853183 Qty Required For Repair: AR Supersedes: 84-860615, 84-862609, 84-853183	$248.50 ~~$315.00~~
N.S.	HARNESS ASSEMBLY, (23 Feet), Extension, 7m (#84-860616002) Qty Required For Repair: AR Minimum Order Qty: 1 Supersedes: 84-860616, 84-862607, 84-853202 Qty Required For Repair: AR Supersedes: 84-860616, 84-862607, 84-853202	NLA
N.S.	DECAL SET (#37-863241A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 37-863241A 1 Supersedes: 37-863241A 1	NLA
N.S.	POWER STEERING KIT (#864186A1) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
N.S.	JACKSHAFT KIT (With Out Drive Shaft) (#863914A02) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
N.S.	HEATER KIT, Hot Water (#22-806837A2) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	$11.18 ~~$13.98~~

MERCRUISER D1.7L DTI STERNDRIVE (ALPHA) SERVICE AND SUPPORT MATERIAL

This assembly is found in these models:

MERCRUISER > D1.7L DTI
