MERCRUISER - 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996 - SENDERS AND HARNESS BRACKET

	Ref ID	Description	Price
	1	BRACKET/LIFTING EYE (REAR) (#805441T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	2	SCREW, (.437-14 x 1.00) (#10-47461) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.40 ~~$1.50~~
	3	WASHER, (.453 x .875 x .060) (#12-22248) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.91 ~~$1.10~~
	4	PLATE KIT, Wire Harness Mount (#26079A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.28 ~~$14.10~~
	5	SCREW, (#8-16 x .875) (#10-15001) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$0.91 ~~$1.10~~
	6	SENDER ASSEMBLY, Water Temperature (#806490T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 806490, 97257A 1 Supersedes: 806490, 97257A 1	$28.07 ~~$27.92~~
	6	SENDER ASSEMBLY, Water Temperature (DUAL) (#49734) Qty Required For Repair: OPT. Minimum Order Qty: 1	$71.20 ~~$64.08~~
	7	SENDER ASSEMBLY, Oil Pressure (#8M0068784) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 815425T, 815425, 90806 Supersedes: 815425T, 815425, 90806	$63.64 ~~$62.92~~
	7	SENDER ASSEMBLY, Oil Pressure (DUAL) (#37293T) Qty Required For Repair: OPT. Minimum Order Qty: 1	$157.20 ~~$209.42~~
	8	LOCKWASHER, (#10) Stainless Steel (#13-26996) Qty Required For Repair: 2 Minimum Order Qty: 15 Qty Required For Repair: 2 Minimum Order Qty: 15	$0.74 ~~$0.84~~
	9	NUT, (#10-32) Stainless Steel (#11-68219) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.90 ~~$2.00~~
	10	FITTING (#22-805059) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.96 ~~$7.80~~
	11	FITTING, Elbow (45 Degree) (#22-8M0123050) Qty Required For Repair: 1	$17.16
	12	SENSOR ASSEMBLY (#805544T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	13	SENSOR (#805218T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 805218 Supersedes: 805218	$48.50 ~~$32.83~~

To zoom in, move your mouse over the diagram.

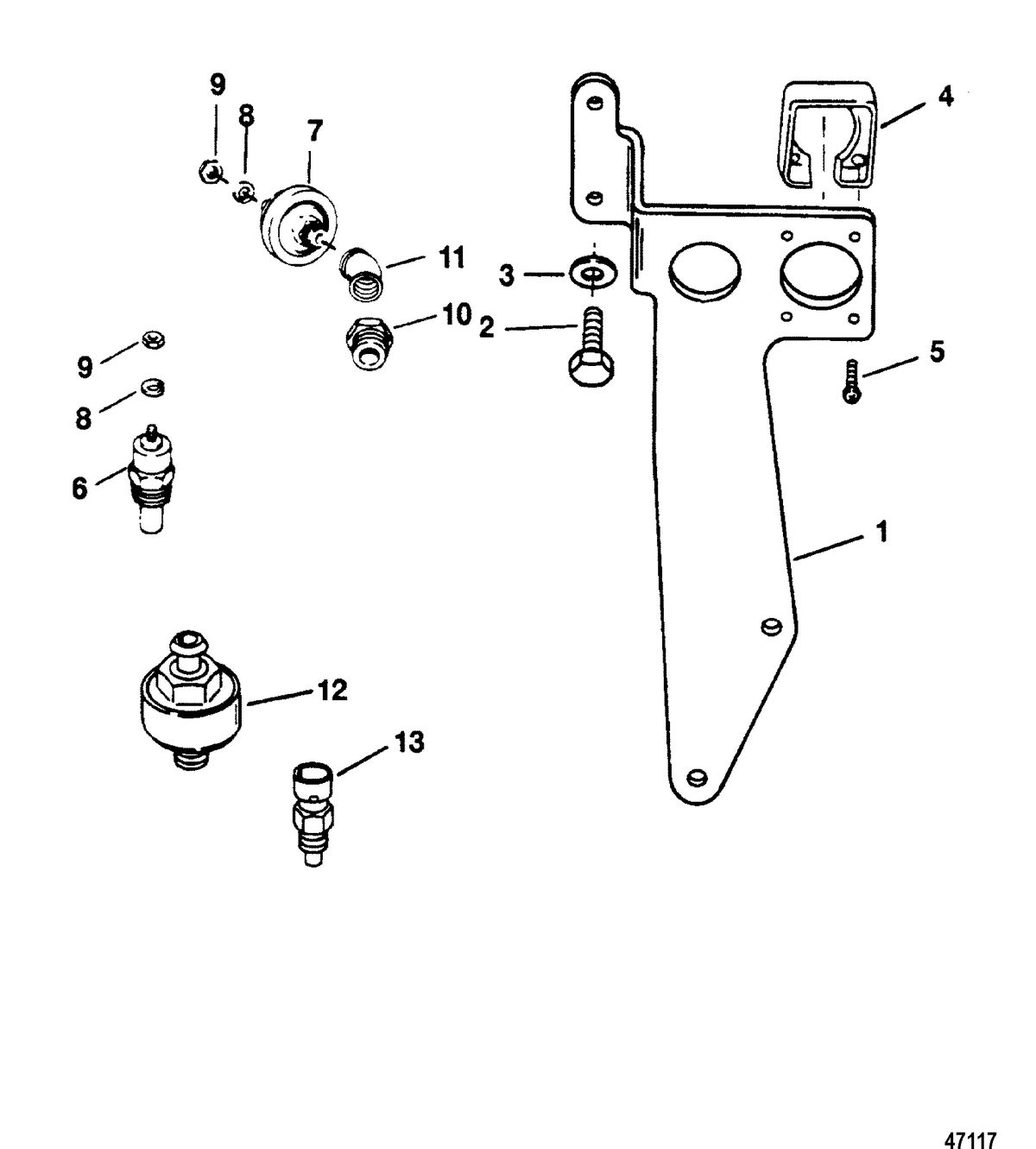

MERCRUISER 7.4 LX (EFI-MP) BRAVO SENDERS AND HARNESS BRACKET

This assembly is found in these models:

MERCRUISER > 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996
