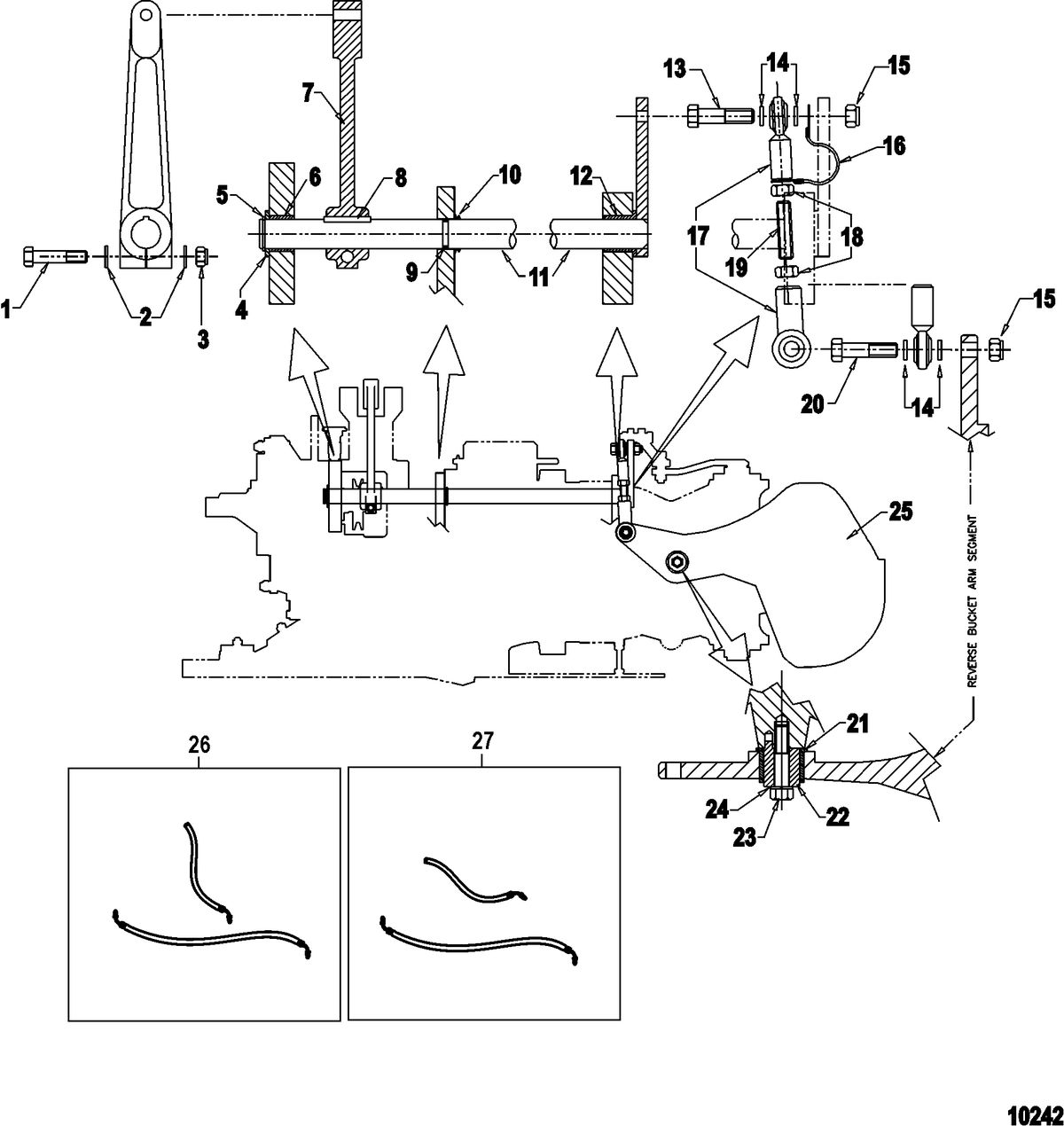

MERCRUISER - JETDRIVE 2004 - Reverse Detail

Ref ID	Description	Price
1	BOLT, (M10 x Coarse @ 60) (#10-887260) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	WASHER, (M10) (#12-896379) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
3	LOCKNUT, (M10) (#11-887223) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	WASHER (#12-886894) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	CIRCLIP (#53-886893) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	BUSHING, Bronze (#23-886892) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	INPUT TILLER , Reverse (#64-886901) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	KEY (#28-886902) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	O-RING, Steering Shaft Seal (#25-886891) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	SEAL (#26-887255) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	SHAFT AND TILLER, Reverse (#64-886900) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	BUSHING, Flanged (#23-887276) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	BOLT, (.500 x 2.00) (#10-886906) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SPACERS ROD ENDS (#23-886897) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
15	LOCKNUT, (.50) (#11-886908) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
16	BONDING WIRE (#84-886998) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	ROD END (#887253) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
18	NUT, (.50) (#11-886909) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
19	THREADED ROD, (.500) (#887264) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	BOLT, (.500 x 2.250) (#10-886907) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	BUSHING, Reverse Gate (#23-886903) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
22	PIN, Reverse Gate (#17-886895) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	BOLT, (M12 x Coarse @ 70) (#10-887256) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
24	WASHER, (M12) (#12-887257) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
25	GATE, Reverse (#886899) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	HOSE (#32-80622136) Comment: 1.7 Qty Required For Repair: 1 Minimum Order Qty: 1 1.7	NLA
26	HOSE (#32-80622216) Comment: 1.7 Qty Required For Repair: 1 Minimum Order Qty: 1 1.7	$154.21 ~~$181.00~~
27	HOSE, Pressure (#32-8M0063021) Comment: 2.8, 4.2 Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-866687, 32-865387060, 8M0066782 2.8, 4.2 Supersedes: 32-866687, 32-865387060, 8M0066782	$168.91 ~~$198.25~~
27	HOSE, Return (#32-865390068) Comment: 2.8, 4.2 Qty Required For Repair: 1 Minimum Order Qty: 1 2.8, 4.2	$79.42 ~~$87.08~~

This assembly is found in these models:

MERCRUISER > JETDRIVE 2004
