RACE STERNDRIVE - 900 SC Dry Sump 2000 - Reservoir Bottle(Transmission Fluid)

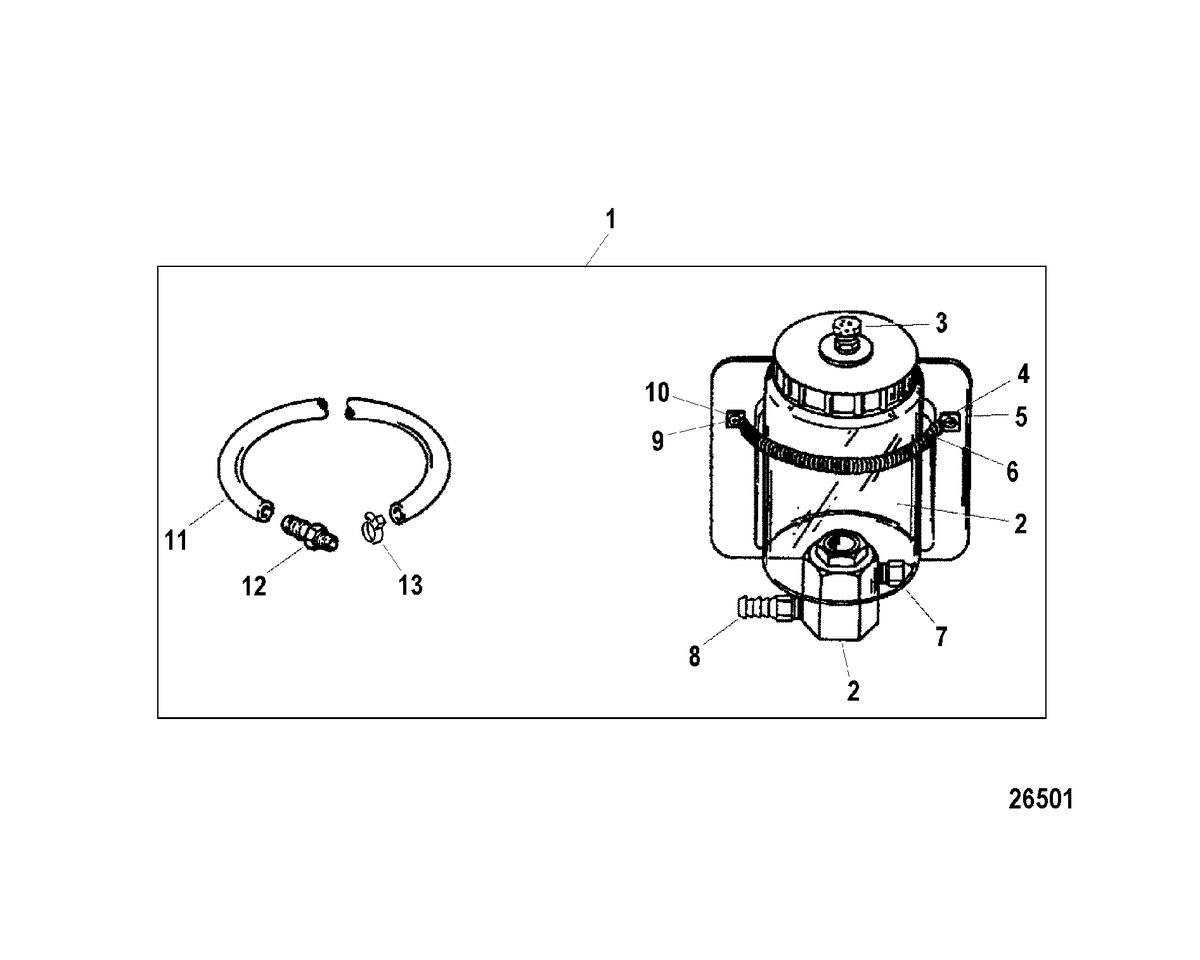

Ref ID	Description	Price
1	RESERVOIR KIT, Transmission Models (#86250A5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BOTTLE ASSEMBLY, Reservoir (#86250A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$356.51 ~~$363.79~~
3	FITTING, Breather (#22-47902) Qty Required For Repair: 1 Minimum Order Qty: 1	$14.08 ~~$17.60~~
-	GASKET, Reservoir Bottle Cover (#27-69620) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.68 ~~$7.10~~
4	RETAINER, Reservoir Spring (#67905) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$4.08 ~~$5.10~~
5	BRACKET, Reservoir Mount (#86030) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	SPRING, Reservoir Bracket (#24-67908) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.88 ~~$23.83~~
7	FITTING, (.250-18 x .62) Brass (#22-36382) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.24 ~~$5.30~~
8	FITTING, Barb (.250-18) (#22-63187) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$12.24 ~~$15.30~~
9	WASHER, (.188 x .438 x .050) (#12-58198) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$1.76 ~~$2.20~~
10	SCREW, (#9-14 x .875) (#10-22793) Qty Required For Repair: 3 Minimum Order Qty: 2 Qty Required For Repair: 3 Minimum Order Qty: 2	$0.96 ~~$1.20~~
11	HOSE, (48.00 Inches Bulk), Cut As Required (#32-774572) Qty Required For Repair: 1 Minimum Order Qty: 1	$64.88 ~~$67.58~~
12	FITTING, (.125-27) (#22-63186) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
13	TIE STRAP, (5.50 Inches), End Of Hoses (#8M0214940) Qty Required For Repair: 2 Qty Required For Repair: 2	$0.64 ~~$0.80~~

RACE STERNDRIVE 900 SC - DRY SUMP Reservoir Bottle(Transmission Fluid)

Mercury Marine Parts Catalog

RACE STERNDRIVE - 900 SC Dry Sump 2000 - Reservoir Bottle(Transmission Fluid)

This assembly is found in these models:
