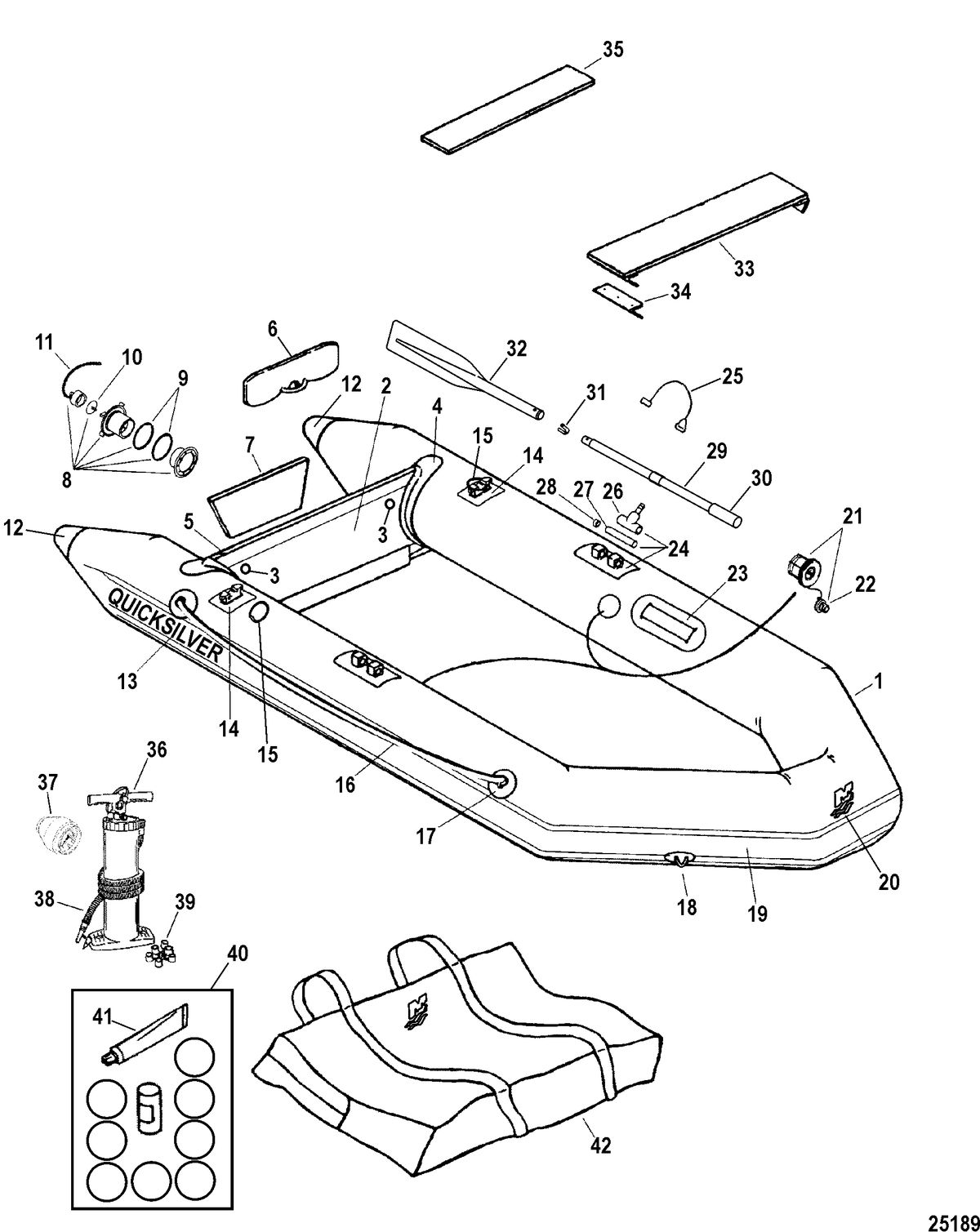

INFLATABLES - Quicksilver Hypalon Soft Bottom AUST 2005-2006 - Quicksilver Roll Up Models(White)

Ref ID	Description	Price
1	SKIN ASSEMBLY, Achilles Hypalon (7 Feet 11 Inches) (#62-896450002) Comment: - 240 Model Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896450001 - 240 Model Supersedes: 62-896450001	NLA
2	TRANSOM ASSEMBLY, PVC Coated - Light Gray (T18 mm) (#62-880956T01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-880956 Supersedes: 62-880956	NLA
3	TOWING HOLE SET, (13 mm x T18 mm) Stainless Steel (#62-898172002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
4	HOLDER, Transom - Hypalon Dark Gray (T18 mm) (#62-896451) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	CAP, Transom Cover (W18 mm x 90 cm) PVC Dark Gray (#62-855403005) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	PAD, Transom - Aluminum (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
7	PLATE, Transom - Dark Gray Wood (#62-8113363) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	PLUG ASSEMBLY, Drain - Light Gray (18 mm) (#62-830222A05) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.71 ~~$14.03~~
9	GASKET, Drain Plug (#27-830221) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	CHECK VALVE, Drain Plug (#62-824409) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.30 ~~$1.16~~
11	CAP/STRING AND CLIP, Drain Plug - Light Gray (#62-8097801) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.04 ~~$9.86~~
12	END CONE CAP, Hypalon - Dark Gray With Flat End (120 mm x H96 mm) (#62-899877003) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899877001 Qty Required For Repair: 2 Supersedes: 62-899877001	NLA
13	LOGO, Side - Raised Quicksilver - Hypalon - White On Dark Gray (#62-896449) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	RETAINER ASSEMBLY, Oarlock - Hypalon Dark Gray (#62-896454) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$11.49 ~~$10.27~~
15	BUNGEE STRAP, White (#62-878052) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.53 ~~$0.46~~
16	ROPE, (12.00 Feet) White (#62-8097781) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	$15.65 ~~$13.97~~
17	HOLDER, Rope - Hypalon Dark Gray (#62-896457) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 62-891687 Qty Required For Repair: 4 Supersedes: 62-891687	$10.40 ~~$9.30~~
18	D RING, Large - Stainless Steel On Achilles White Hypalon Fabric (#62-896456) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891686 Qty Required For Repair: 2 Supersedes: 62-891686	$23.55 ~~$21.01~~
19	RUBSTRAKE, Side - Hypalon - Two Red Lines On Dark Gray (L8 m x W8 cm) (#62-891683001) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896455 Supersedes: 62-896455	$248.98 ~~$250.48~~
20	LOGO, Bow - Hypalon - White M With Light Gray Wave On Dark Gray (#62-883900002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899657 Supersedes: 62-899657	NLA
21	VALVE ASSEMBLY, Air - 8 Slots - Gray (#62-809887) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
22	CAP ASSEMBLY, Air Valve - Gray (#62-8096961) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	WEBBING, Seat - Dark Gray Web/Achilles Hypalon White Fabric (#62-896452) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891679 Qty Required For Repair: 2 Supersedes: 62-891679	$15.70 ~~$14.01~~
24	OARLOCK ASSEMBLY, Dark Gray (#62-896453) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891680A01 Qty Required For Repair: 2 Supersedes: 62-891680A01	$51.12 ~~$45.65~~
25	CAP/STRING AND CLIP, Oarlock - Dark Gray (#62-8M0054771) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811329 2 Qty Required For Repair: 2 Supersedes: 62-811329 2	$5.25 ~~$4.68~~
26	HOLDER, Oarlock - PVC Dark Gray (#62-8244102) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.80 ~~$9.65~~
27	PIN, Oarlock (#62-824411) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.79 ~~$1.62~~
28	CAP, Oarlock - Hypalon Dark Gray (#62-809779003) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.78 ~~$1.59~~
29	OAR HANDLE ASSEMBLY, (97.5 cm) Dark Gray - Center Hole Location (#62-885158) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$28.72 ~~$25.65~~
30	GRIP, Oar Handle - Dark Gray (#62-8118362) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$5.26 ~~$4.70~~
31	CLIP, Oar Handle (#62-824417) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.59 ~~$2.31~~
32	OAR BLADE, Dark Gray - M Logo (#62-885157) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$23.98 ~~$21.41~~
33	SEAT ASSEMBLY, Wood - Dark Gray (L85 cm x W20 cm x T22 mm) (#62-811307T04) Comment: - Design I Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-811307 4 - Design I Supersedes: 62-811307 4	$73.18 ~~$65.36~~
33	SEAT ASSEMBLY, Aluminum (L85 cm x W20 cm x T15 mm) (#62-811307T05) Comment: - Design II Qty Required For Repair: 1 Minimum Order Qty: 1 - Design II	NLA
34	BRACKET, Seat - Light Gray Plastic (#62-8113131) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.40 ~~$9.30~~
35	FLOOR SLAT, (L10 cm x W82 cm x H0.9 cm) Dark Gray (#62-892793001) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
36	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
37	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
38	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
39	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
40	REPAIR KIT, Achilles Hypalon Light Gray/White And PVC Light Gray - Mercury (#62-896344A05) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896344A03, 62-896344A04, 62-896344A02, 62-896344A01, 62-891689A01 Supersedes: 62-896344A03, 62-896344A04, 62-896344A02, 62-896344A01, 62-891689A01	$17.73 ~~$15.84~~
41	CEMENT, Hypalon (30 ml) (#92-891690) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.02 ~~$11.64~~
42	BAG, Storage/Carrying - Flap Style - M Logo (#62-811327T2) Qty Required For Repair: 1 Minimum Order Qty: 1	$136.59 ~~$128.37~~

INFLATABLES MERCURY AND QUICKSILVER HYPALON SOFT BOTTOM Quicksilver Roll Up Models(White)
