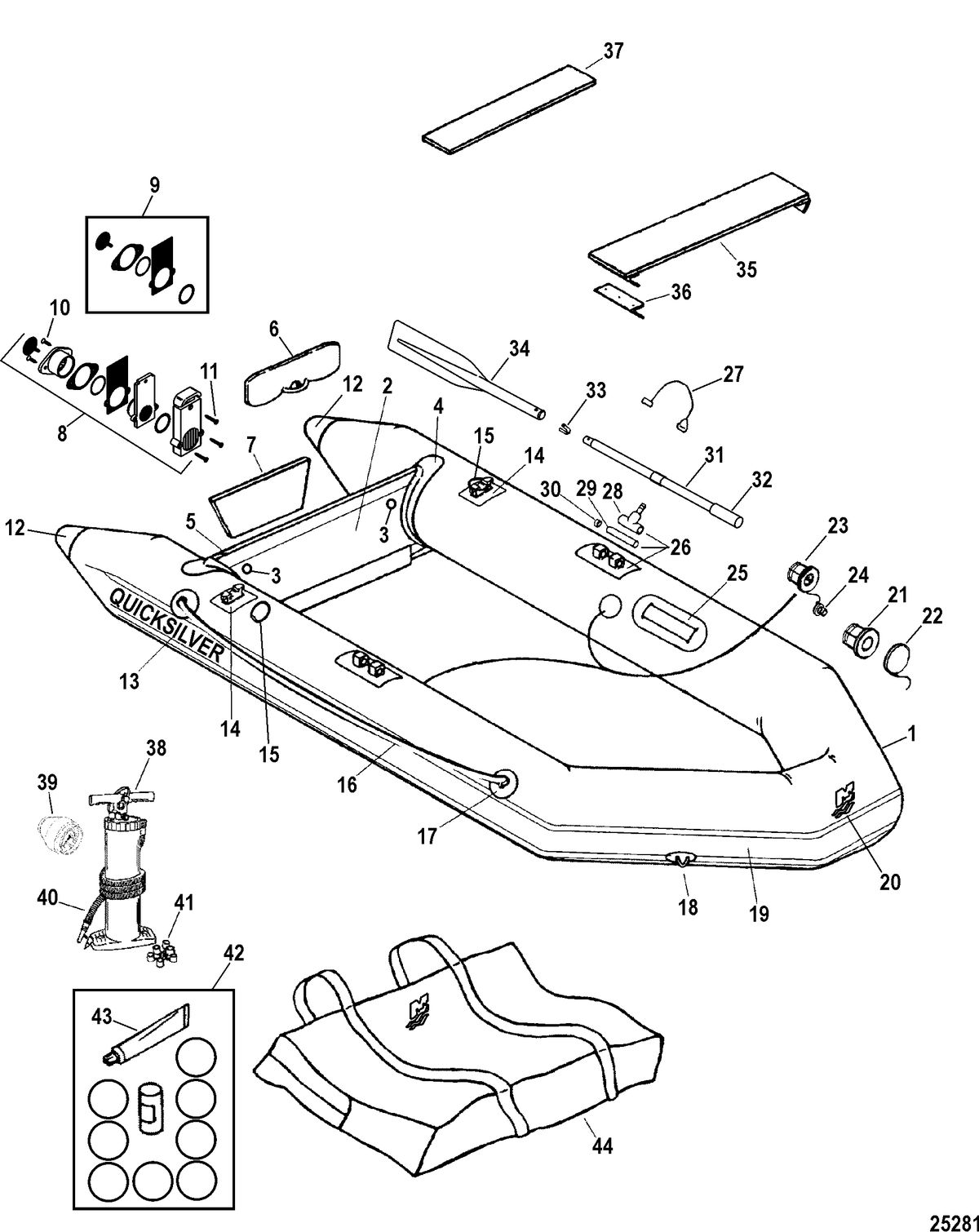

INFLATABLES - Mercury Hypalon Soft Bottom USA 2007 - Quicksilver Roll Up Models(White)

Ref ID	Description	Price
1	SKIN ASSEMBLY, Achilles Hypalon (7 Feet 11 Inches) (#62-896450002) Comment: - 240 Model Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896450001 - 240 Model Supersedes: 62-896450001	NLA
2	TRANSOM ASSEMBLY, PVC Coated - Dark Gray (T18 mm) (#62-880956T03) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	TOWING HOLE SET, (13 mm x T18 mm) Stainless Steel (#62-898172002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
4	HOLDER, Transom - Hypalon Dark Gray (T18 mm) (#62-896451) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	CAP, Transom Cover (W18 mm x 90 cm) PVC Dark Gray (#62-855403005) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	PAD, Transom - Aluminum (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
7	PLATE, Transom - Dark Gray Wood (#62-8113363) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	DRAIN VALVE ASSEMBLY, Light Gray (18 mm) (#62-899763A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899763A01 Supersedes: 62-899763A01	$18.29 ~~$16.33~~
9	REPAIR KIT, Drain Valve (#62-899676A01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	ORDER PART LOCAL, Flat Head Screw (4 mm x 16 mm) (#ORDLOCAL) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
11	ORDER PART LOCAL, Flat Head Screw (4 mm x 25 mm) (#ORDLOCAL) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
12	END CONE CAP, Hypalon - Dark Gray With Flat End (120 mm x H96 mm) (#62-899877003) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899877001 Qty Required For Repair: 2 Supersedes: 62-899877001	NLA
13	LOGO, Side - Raised Quicksilver - Hypalon - White On Dark Gray (#62-896449) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	RETAINER ASSEMBLY, Oarlock - Hypalon Dark Gray (#62-896454) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$11.49 ~~$10.27~~
15	BUNGEE STRAP, White (#62-878052) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.53 ~~$0.46~~
16	ROPE, (12.00 Feet) White (#62-8097781) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	$15.65 ~~$13.97~~
17	HOLDER, Rope - Hypalon Dark Gray (#62-896457) Qty Required For Repair: 8 Minimum Order Qty: 1 Supersedes: 62-891687 Qty Required For Repair: 8 Supersedes: 62-891687	$10.40 ~~$9.30~~
18	D RING, Large - Stainless Steel On Achilles White Hypalon Fabric (#62-896456) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891686 Qty Required For Repair: 2 Supersedes: 62-891686	$23.55 ~~$21.01~~
19	RUBSTRAKE, Side - Hypalon - Two Red Lines On Dark Gray (L8 m x W8 cm) (#62-891683001) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896455 Supersedes: 62-896455	$248.98 ~~$250.48~~
20	LOGO, Bow - Hypalon - White M With Light Gray Wave On Dark Gray (#62-883900002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899657 Supersedes: 62-899657	NLA
21	VALVE ASSEMBLY, Over Pressure - Gray (#62-899879A01) Qty Required For Repair: 1 Minimum Order Qty: 1	$40.77 ~~$36.42~~
22	CAP ASSEMBLY, Over Pressure Valve - Red (#62-899879002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	VALVE ASSEMBLY, Air - 8 Slots - Gray (#62-809887) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
24	CAP ASSEMBLY, Air Valve - Gray (#62-8096961) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
25	WEBBING, Seat - Dark Gray Web/Achilles Hypalon White Fabric (#62-896452) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891679 Qty Required For Repair: 2 Supersedes: 62-891679	$15.70 ~~$14.01~~
26	OARLOCK ASSEMBLY, Dark Gray (#62-896453) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891680A01 Qty Required For Repair: 2 Supersedes: 62-891680A01	$51.12 ~~$45.65~~
27	CAP/STRING AND CLIP, Oarlock - Dark Gray (#62-8M0054771) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811329 2 Qty Required For Repair: 2 Supersedes: 62-811329 2	$5.25 ~~$4.68~~
28	HOLDER, Oarlock - PVC Dark Gray (#62-8244102) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.80 ~~$9.65~~
29	PIN, Oarlock (#62-824411) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.79 ~~$1.62~~
30	CAP, Oarlock - Hypalon Dark Gray (#62-809779003) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.78 ~~$1.59~~
31	OAR HANDLE ASSEMBLY, (97.5 cm) Dark Gray - Center Hole Location (#62-885158) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$28.72 ~~$25.65~~
32	GRIP, Oar Handle - Dark Gray (#62-8118362) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$5.26 ~~$4.70~~
33	CLIP, Oar Handle (#62-824417) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.59 ~~$2.31~~
34	OAR BLADE, Dark Gray - M Logo (#62-885157) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$23.98 ~~$21.41~~
35	SEAT ASSEMBLY, Aluminum (L85 cm x W20 cm x T15 mm) (#62-811307T05) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	BRACKET, Seat - Light Gray Plastic (#62-8113131) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.40 ~~$9.30~~
37	FLOOR SLAT, (L12 cm x W75/80 cm x H1.2 cm) Dark Gray (#62-892793002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	FLOOR SLAT, (L12 cm x W83 cm x H1.2 cm) Dark Gray (#62-892793003) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
38	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
39	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
40	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
41	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
42	REPAIR KIT, Hypalon - White (#62-898175) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.29 ~~$16.33~~
43	CEMENT, Hypalon (30 ml) (#92-891690) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.02 ~~$11.64~~
44	BAG, Storage/Carrying - Flap Style - M Logo (#62-811327T2) Qty Required For Repair: 1 Minimum Order Qty: 1	$136.59 ~~$128.37~~

INFLATABLES MERCURY AND QUICKSILVER HYPALON SOFT BOTTOM Quicksilver Roll Up Models(White)

Mercury Marine Parts Catalog

INFLATABLES - Mercury Hypalon Soft Bottom USA 2007 - Quicksilver Roll Up Models(White)

This assembly is found in these models:
