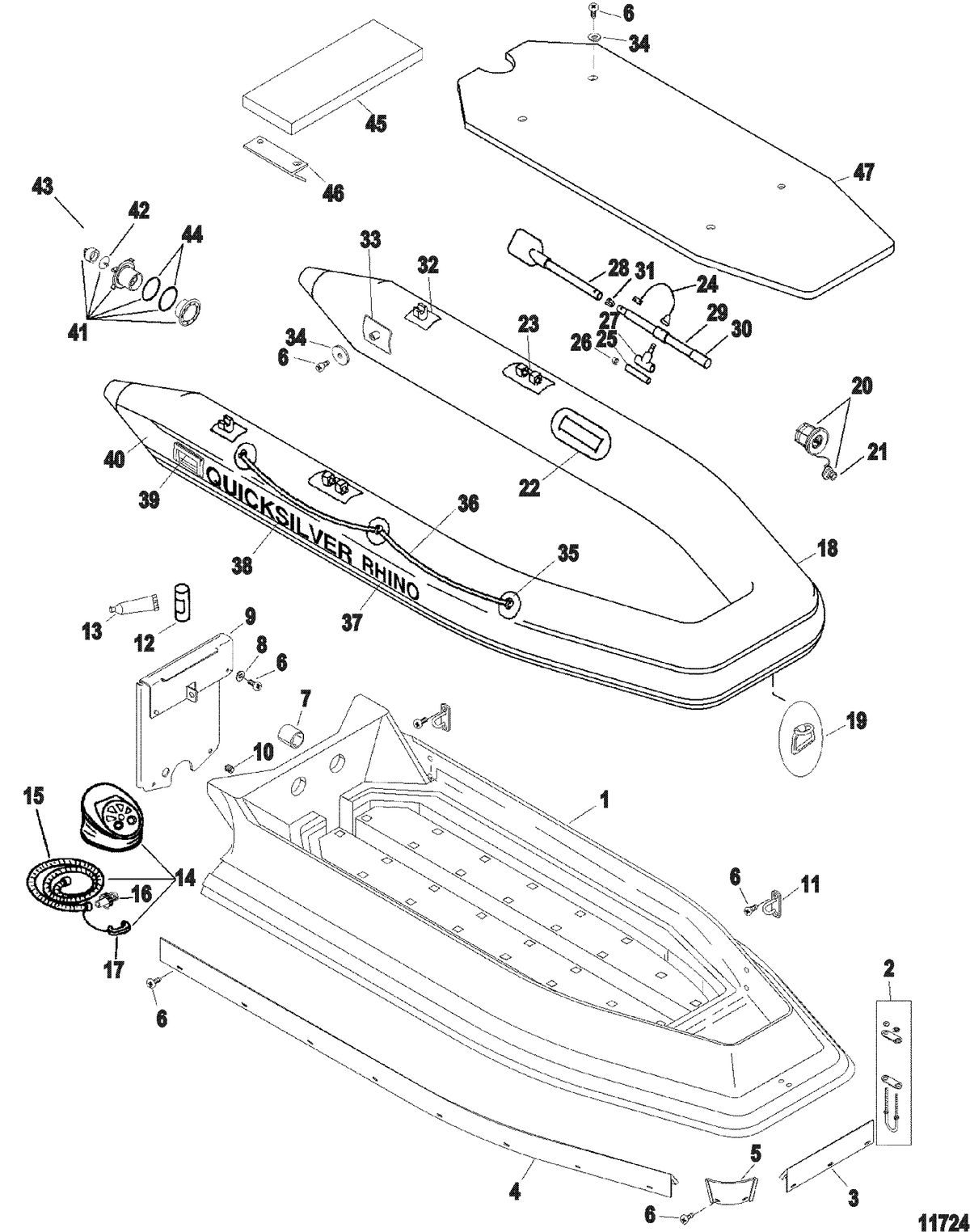

INFLATABLES - Quicksilver PVC RIB USA 1995-1997 - Quicksilver Inflatables Rhino I(10.00 Feet 305R)

Ref ID	Description	Price
1	HULL (#62-830215) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BOW EYE (#67-8306621) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	TRIM CLAMP, Bow (#62-830218) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	TRIM CLAMP (#62-830217) Comment: - Port Qty Required For Repair: 1 Minimum Order Qty: 1 - Port	NLA
4	TRIM CLAMP (#62-8302171) Comment: - Starboard Qty Required For Repair: 1 Minimum Order Qty: 1 - Starboard	NLA
5	TRIM, Corner (#62-830868) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	SCREW, (.250-20 x .750) (#10-830867) Qty Required For Repair: 41 Minimum Order Qty: 1 Qty Required For Repair: 41	NLA
7	SLEEVE (#62-850094) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
8	WASHER, (.281 x .734 x .063) (#12-69057) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$1.36 ~~$1.70~~
9	PLATE/PAD ASSEMBLY, Transom (#62-850797) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	PLUG, (.375-18) (#19-835075) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	PADEYE (#62-850099) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
12	REPAIR KIT (#92-8113141) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
14	PUMP KIT, Foot (#62-8096973) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	HOSE (#62-809698) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	ADAPTOR, Air Pump Hose For Foot Pump (#62-8096853) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
17	CLIP (#62-808572) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	TUBE (#62-8519852) Comment: - 1997 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 1997 Model	NLA
19	HANDLE/LIFTING, Bow - Light Gray Nylon On Light Gray PVC Fabric (#62-809777004) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809777 1 Supersedes: 62-809777 1	$15.70 ~~$14.01~~
20	VALVE ASSEMBLY, Air - 8 Slots - Gray (#62-809887) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
21	CAP ASSEMBLY, Air Valve - Gray (#62-8096961) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
22	WEBBING, Seat - Light Gray Web/PVC Silver Fabric (#62-8187012) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	OARLOCK ASSEMBLY, PVC Light Gray (#62-811311003) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811311 1 Qty Required For Repair: 2 Supersedes: 62-811311 1	$43.33 ~~$38.69~~
24	CAP/STRING AND CLIP, Oarlock - Light Gray (#62-8M0054772) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811329003, 62-811329 1 Qty Required For Repair: 2 Supersedes: 62-811329003, 62-811329 1	$3.60 ~~$3.22~~
25	PIN, Oarlock (#62-824411) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.79 ~~$1.62~~
26	CAP, Oarlock - PVC Light Gray (#62-809779004) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-809779 1 Qty Required For Repair: 2 Supersedes: 62-809779 1	$0.80 ~~$0.69~~
27	HOLDER, Oarlock - PVC Black (#62-824410) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899686 Qty Required For Repair: 2 Supersedes: 62-899686	$10.16 ~~$9.07~~
28	OAR BLADE ASSEMBLY, Light Gray (For 85 cm Oar Handle) (#62-8276661) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$20.91 ~~$18.66~~
29	OAR HANDLE ASSEMBLY, Light Gray (#62-8113181) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$18.96 ~~$16.95~~
30	GRIP, Oar Handle - Light Gray (#62-811836004) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811836 1 Qty Required For Repair: 2 Supersedes: 62-811836 1	$5.25 ~~$4.68~~
31	CLIP, Oar Handle (#62-824417) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.59 ~~$2.31~~
32	RETAINER, Oar (#62-8113461) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$7.81 ~~$6.97~~
33	PAD ASSEMBLY (#62-8099461) Comment: - With .250-20 Stainless Steel Bushing Qty Required For Repair: 2 Minimum Order Qty: 1 - With .250-20 Stainless Steel Bushing Qty Required For Repair: 2	NLA
34	WASHER (#12-67983) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$2.40 ~~$3.00~~
35	HOLDER, Rope - Molded (#62-8118131) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
36	ROPE, (12.00 Feet) Blue (#62-809778) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
37	LOGO, Rhino (#851986) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
38	LOGO, Quicksilver (#62-8113481) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
39	LIFTING HANDLE, Blue (#62-809781) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
40	RUBSTRAKE, Side (#62-8085752) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	PLUG ASSEMBLY, Drain (#62-830222A3) Qty Required For Repair: 1 Minimum Order Qty: 1	$20.96 ~~$18.70~~
42	CHECK VALVE, Drain Plug (#62-824409) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.30 ~~$1.16~~
43	CAP/STRING AND CLIP, Drain Plug - Light Gray (#62-8097801) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.04 ~~$9.86~~
44	GASKET, Drain Plug (#27-830221) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
45	SEAT (#62-811307T01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-811307 1 Supersedes: 62-811307 1	$73.18 ~~$65.37~~
46	BRACKET, Seat - Light Gray Plastic (#62-8113131) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.40 ~~$9.30~~
47	PANEL, Deck Floor - Gray (#62-851984) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

INFLATABLES QUICKSILVER PVC RIB AND RHINO I Quicksilver Inflatables Rhino I(10.00 Feet 305R)

Mercury Marine Parts Catalog

INFLATABLES - Quicksilver PVC RIB USA 1995-1997 - Quicksilver Inflatables Rhino I(10.00 Feet 305R)

This assembly is found in these models:
