Mercury Marine Parts Catalog

Find the Parts You're Looking For

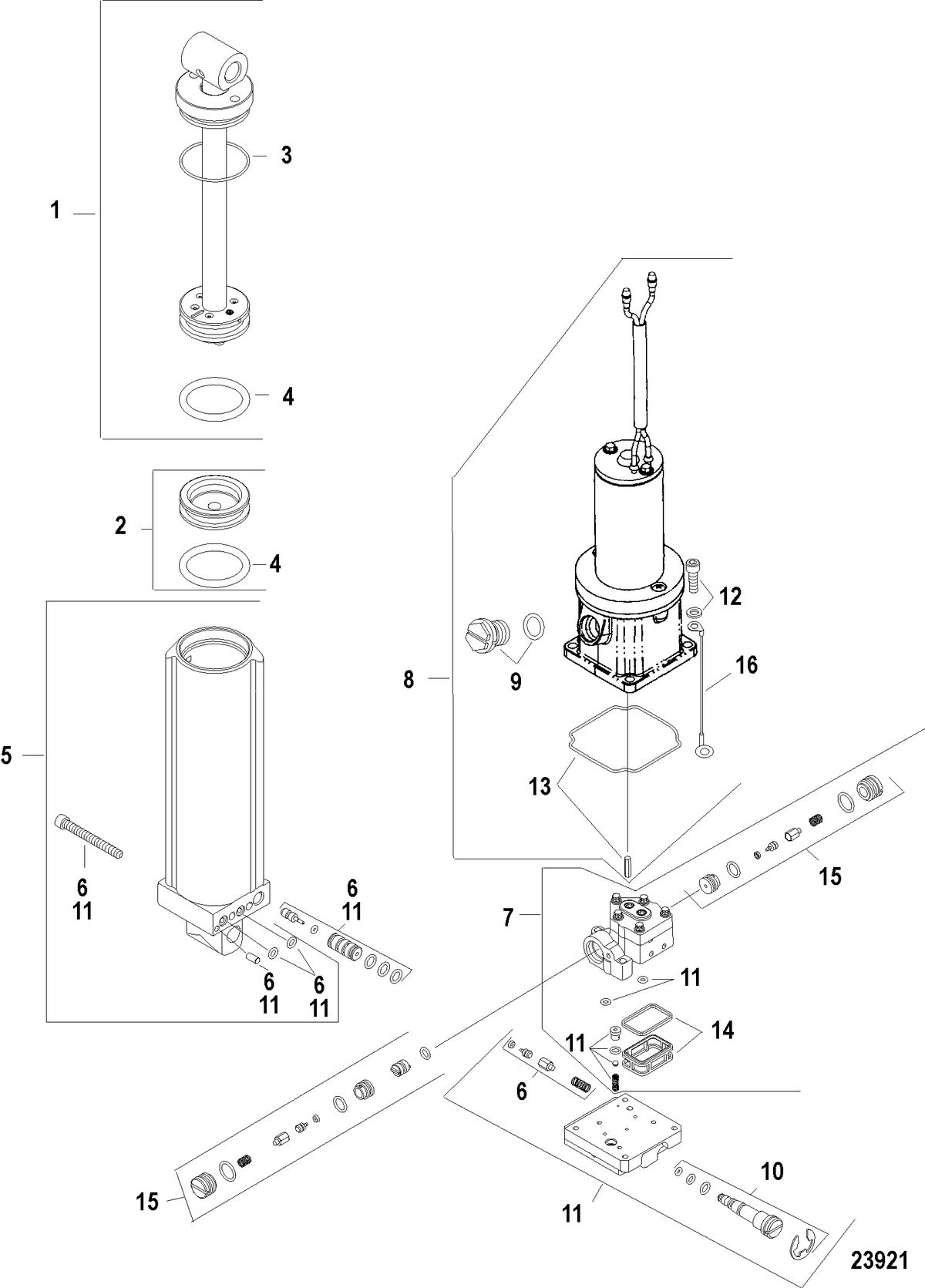

ACCESSORIES - Trim / Tilt / Lift Systems and Components - Pump/Motor Assembly(854472T 1)

	Ref ID	Description	Price
	_	PUMP/MOTOR ASSEMBLY, Power Trim (#854472T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	1	SHOCK ROD KIT (#893943A01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 855833A 1 Supersedes: 855833A 1	$552.97 ~~$572.43~~
	2	PISTON ASSEMBLY, Memory (#8M0171822) Qty Required For Repair: 1	$50.96 ~~$53.08~~
	3	O-RING KIT, Rebuild (#25-8M0171819) Qty Required For Repair: 1	$19.12 ~~$19.92~~
	4	NOT SOLD SEPARATE, O-Ring (#NSS) Qty Required For Repair: 1	NLA
	5	CYLINDER ASSEMBLY (#893904T01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 811228A 1 Supersedes: 811228A 1	NLA
	6	VALVE KIT, Trim Limit (#893905A02) Comment: (Non Big Foot) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 809873A 1 (Non Big Foot) Supersedes: 809873A 1	NLA
	7	PUMP ASSEMBLY, Trim (#893906A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 809874A 1 Supersedes: 809874A 1	NLA
	8	MOTOR ASSEMBLY, Trim (#878098T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	9	PLUG (#22-8134351) Qty Required For Repair: 1 Minimum Order Qty: 1	$38.72 ~~$40.33~~
	10	MANUAL RELEASE ASSEMBLY (#893929A01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 813442A 2 Supersedes: 813442A 2	$67.60 ~~$70.42~~
	11	MANIFOLD KIT (#893909A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 809875A 1 Supersedes: 809875A 1	NLA
	12	SCREW KIT (4 Each) (#10-809876A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$21.84 ~~$22.75~~
	13	DRIVESHAFT/SEAL KIT (#809877A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$36.80 ~~$38.33~~
	14	FILTER KIT (#35-893912A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 809878A 1 Supersedes: 809878A 1	$21.60 ~~$22.50~~
	15	POPPET KIT (#893913A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 809879A 1 Supersedes: 809879A 1	$113.85 ~~$124.83~~
	16	CABLE ASSEMBLY (#88238A18) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.68 ~~$7.10~~
	-	O-RING KIT (#25-893914A02) Comment: (Complete) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 25-809880A 1 (Complete) Supersedes: 25-809880A 1	NLA

ACCESSORIES TRIM / TILT / LIFT SYSTEMS AND COMPONENTS Pump/Motor Assembly(854472T 1)

ACCESSORIES TRIM / TILT / LIFT SYSTEMS AND COMPONENTS Pump/Motor Assembly(854472T 1)

This assembly is found in these models:

ACCESSORIES > Trim / Tilt / Lift Systems and Components
