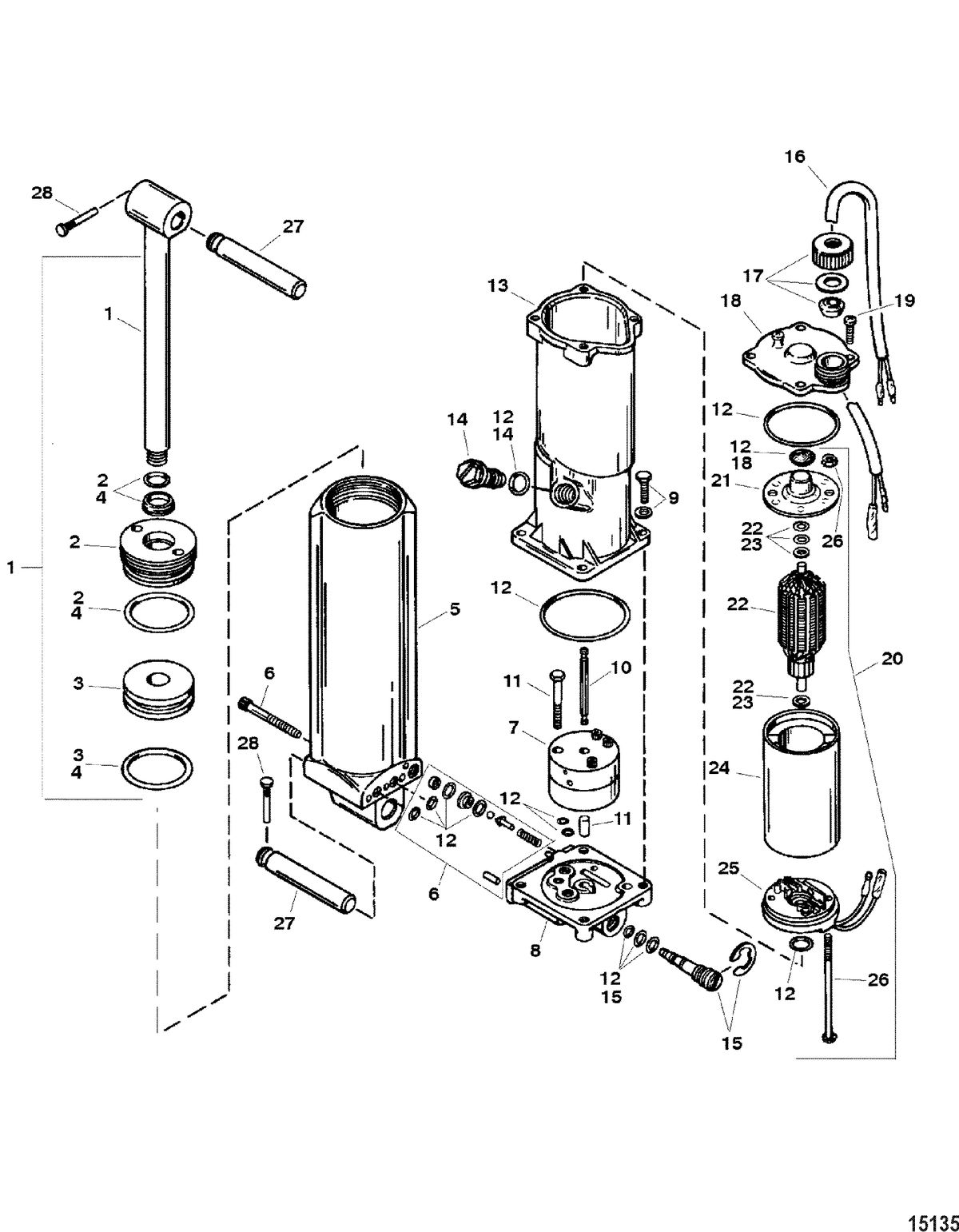

Power Trim, Eaton Motor(19217A6 / 19217A7)

Ref ID	Description	Price
-	POWER TRIM ASSEMBLY, Eaton Motor (#832023T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	POWER TRIM ASSEMBLY, Eaton Motor (#832023T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	NOT SOLD SEPARATE, Shock Rod Assembly (#NSS) Qty Required For Repair: 1	NLA
2	NOT SOLD SEPARATE, End Cap Assembly (#NSS) Qty Required For Repair: 1	NLA
3	NOT SOLD SEPARATE, Shock Piston Assembly (#NSS) Qty Required For Repair: 1	NLA
4	NOT SOLD SEPARATE, Rebuild Kit, Cylinder (#NSS) Qty Required For Repair: 1	NLA
5	NOT SOLD SEPARATE, Cylinder Kit (#NSS) Qty Required For Repair: 1	NLA
6	SCREW AND SEAL KIT (#811678A6) Qty Required For Repair: 1 Minimum Order Qty: 1	$142.50 ~~$156.25~~
7	PUMP KIT (#811702) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	MANIFOLD KIT (#811701) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	SCREW KIT, 4 Pieces (#10-813436) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	DRIVESHAFT (#813437) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	SCREW AND PIN KIT (#811697) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	SEAL KIT (#25-813439A3) Qty Required For Repair: 1 Minimum Order Qty: 1	$77.68 ~~$80.92~~
13	RESERVOIR (#813434A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	PLUG KIT (#22-8134351) Qty Required For Repair: 1 Minimum Order Qty: 1	$38.72 ~~$40.33~~
15	RELIEF VALVE KIT (#893929A01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 813442A 2 Supersedes: 813442A 2	$67.60 ~~$70.42~~
16	HARNESS ASSEMBLY (#84-811698) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 84-813443 1 Supersedes: 84-813443 1	NLA
17	BEZEL KIT (#813444) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	CAP KIT, Reservoir (#813445) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	SCREW (#10-813446) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	MOTOR KIT (#813447) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 811699 Supersedes: 811699	NLA
21	END CAP (#813448) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	ARMATURE (#811700) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	THRUST WASHER KIT (#12-813450) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	SHELL AND MAGNET KIT (#813451) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	END FRAME KIT (#813452) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	BOLT AND NUT KIT (#10-813453) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	PIN, Cylinder Mount (#17-19607) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$21.84 ~~$22.75~~
28	PIN, Trilobe (#17-821539) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 17-13794, 17-19603 Qty Required For Repair: 2 Supersedes: 17-13794, 17-19603	$3.52 ~~$4.40~~

This assembly is found in these models:

ACCESSORIES > Trim / Tilt / Lift Systems and Components
