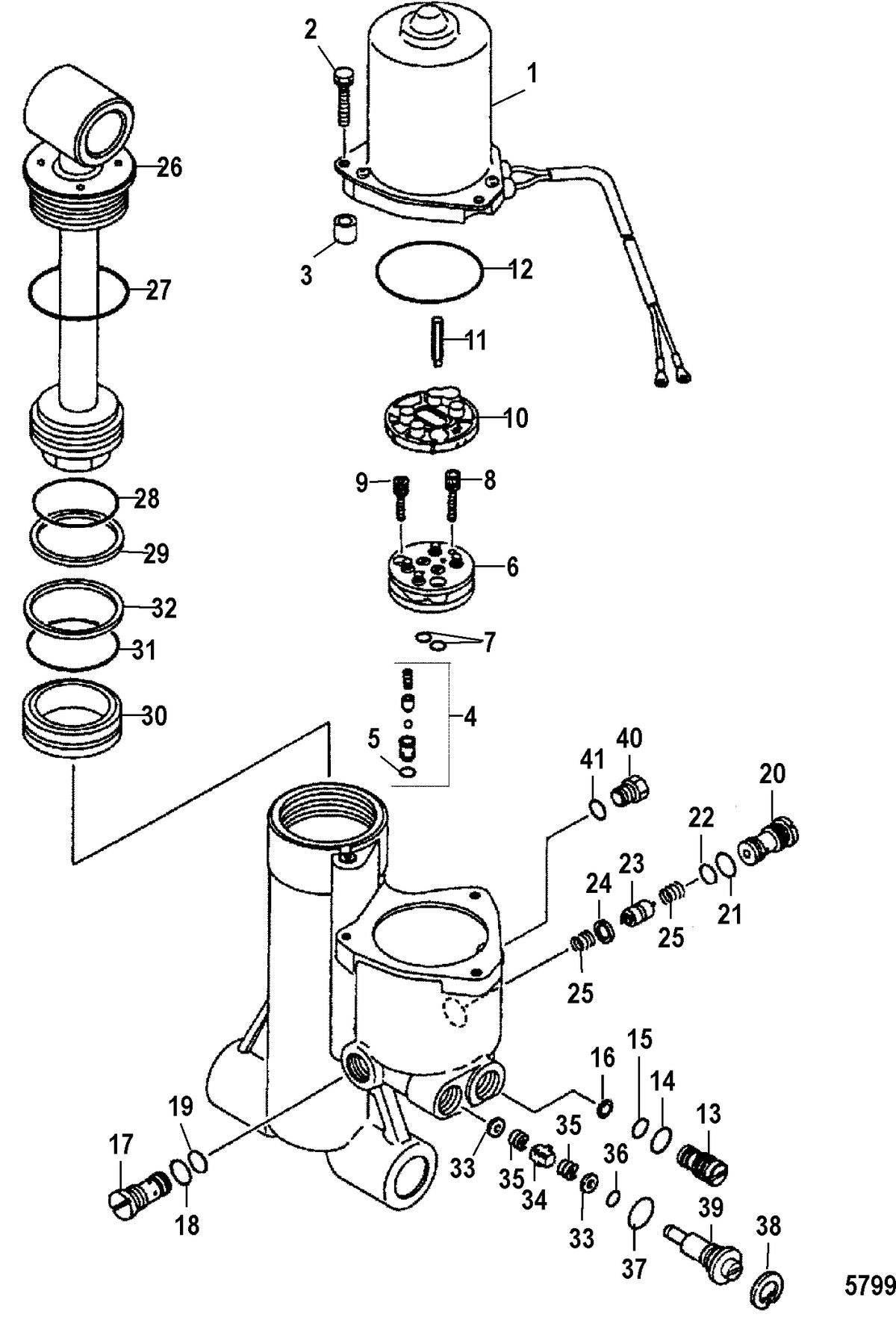

MARINER - 40 MXL MARATHON - Power Trim Components

Ref ID	Description	Price
-	POWER TRIM ASSEMBLY (#851873A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	MOTOR (#8276751) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BOLT (#10-8518662) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
3	COLLAR (#23-9528620) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
4	RELIEF VALVE (Down) (#827672A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	O-RING (#25-161314) Qty Required For Repair: 1 Minimum Order Qty: 1	$8.40 ~~$10.50~~
6	PUMP (#8276741) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	O-RING (#25-161314) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$8.40 ~~$10.50~~
8	BOLT (#10-8518663) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.68 ~~$4.60~~
9	BOLT (#10-8518664) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.68 ~~$4.60~~
10	FILTER (#35-851876) Qty Required For Repair: 1 Minimum Order Qty: 1	$31.92 ~~$33.25~~
11	DRIVE JOINT (#851877) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	O-RING (#25-161315) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	RELIEF VALVE (Up) (#827672A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	O-RING (#25-8555541) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	O-RING (#25-161316) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	FILTER (#851878) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	VALVE SEAT ASSEMBLY (#851879A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	O-RING (#25-161317) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	O-RING (#25-161318) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	VALVE SEAL ASSEMBLY (#851879A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	O-RING (#25-161317) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	O-RING (#25-161318) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	SPOOL (#851880) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	BACKUP RING (#851881) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	SPRING (#24-851882) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	ROD ASSEMBLY, Trim Piston (#827670T03) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 827670A 3 Supersedes: 827670A 3	NLA
27	O-RING (#25-8555542) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	O-RING (#25-8555543) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	BACKUP RING (#8518811) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	PISTON (#8276761) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	O-RING (#25-8555543) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	BACKUP RING (#8518811) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	WASHER (#12-953929) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
34	COLLAR (#23-9528618) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
35	SPRING (#24-8518821) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
36	O-RING (#25-161319) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	O-RING (#25-8126411) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	MANUAL VALVE (#8134421) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	C RING (#53-953451) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	PLUG (#19-8555491) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	O-RING (#25-1613110) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.60 ~~$7.00~~

MERCURY/MARINER 40 LIGHTNING/40 LIGHTNING XR40 SEAPRO/MARATHON/50 INTERNATIONAL Power Trim Components

This assembly is found in these models:

MARINER > 40 LIGHTNING (International)
MARINER > 40 LIGHTNING XR (International)
MARINER > 40 MXL MARATHON
MERCURY > 40 MXL SEAPRO
MARINER > 50MH
