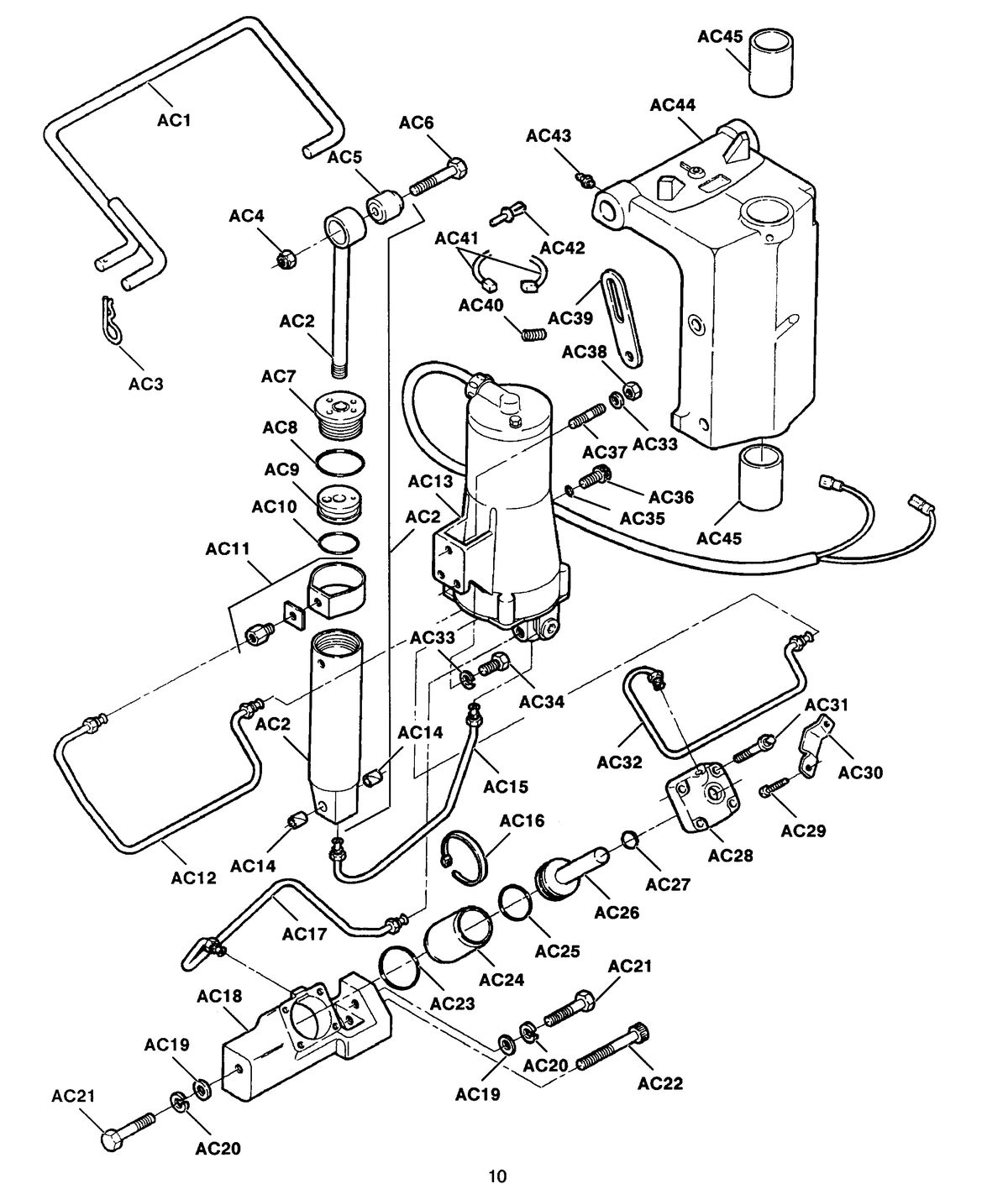

POWER TRIM 5H219-1 (ELECTRICAL COMPONENTS-SEE PG. 18)

Ref ID	Description	Price
AC1	TRAILERING BRACKET (#F5H216) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F5H084, F485541, F5H259, F75H27, F684541 Supersedes: F5H084, F485541, F5H259, F75H27, F684541	NLA
AC2	TILT CYLINDER, COMPLETE (#819100T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC3	PIN, HAIRPIN (#18-F525629) Qty Required For Repair: 1 Minimum Order Qty: 2 Supersedes: F1985 Minimum Order Qty: 2 Supersedes: F1985	NLA
AC4	STOP NUT, ELASTIC, 3/8-16 (#11-F1756) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F1742 Supersedes: F1742	NLA
AC5	BUSHING (#23-F455344) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC6	CAPSCREW, 3/8-16 X 2-1/2 (#10-63826) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.88 ~~$3.60~~
AC7	HEAD ASSEMBLY (#FA654055) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F17560, F17529 Supersedes: F17560, F17529	NLA
AC8	O-RING (#25-F654618) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F17528 Supersedes: F17528	$1.28 ~~$1.60~~
AC9	PISTON ASSEMBLY (#FA654015) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F17562, F17562-1 Supersedes: F17562, F17562-1	NLA
AC10	O-RING (#25-F654984) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F17561, F17561-1, FA17561, FA17561-1 Supersedes: F17561, F17561-1, FA17561, FA17561-1	$5.20 ~~$6.50~~
AC11	CYLINDER BAND ASSEMBLY (#F2A654983) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F17530, F17531, F17577, F17578, F17579, F17532 Supersedes: F17530, F17531, F17577, F17578, F17579, F17532	$74.64 ~~$77.75~~
AC12	HYDRAULIC LINE, TILT CYLINDER, TOP (#32-F691758) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC13	PUMP AND MOTOR ASSEMBLY (#F694541-2) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F660541, F17621, F17622, F17623, F17626, F17628, F694541, F694541-1 Supersedes: F660541, F17621, F17622, F17623, F17626, F17628, F694541, F694541-1	NLA
AC14	BEARING (#23-F455362) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
AC15	HYDRAULIC LINE, TILT CYLINDER, BOTTOM (#32-F691754) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC16	TY-RAP (#54-816311T) Qty Required For Repair: 2 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Qty Required For Repair: 2 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.48 ~~$0.59~~
AC17	HYDRAULIC LINE, TRIM CYLINDER, BOTTOM (#32-F691253) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC18	HOUSING (#F455545) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC19	WASHER, PLAIN (#12-8M0214963) Qty Required For Repair: 2 Qty Required For Repair: 2	$2.00 ~~$2.50~~
AC20	LOCKWASHER, 3/8 (#13-58643) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.36 ~~$1.70~~
AC21	SCREW, 3/8-16 X 1-3/4 (#10-F1984) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
AC22	SCREW, 3/8-16 X 3-1/2 (#10-F1635) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC23	SEAL (#25-F455305) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.52 ~~$1.90~~
AC24	CYLINDER (#F455010) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC25	SEAL, PISTON (#25-F455278) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F455270 Supersedes: F455270	NLA
AC26	PISTON (#FA455015) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC27	SEAL (#25-45711) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.36 ~~$1.70~~
AC28	COVER ASSEMBLY, WITH SEAL AND RETAINER (#FA455149) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC29	SCREW W/LOCKWASHER, 1/4-20 X 1/2 (#10-34939) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
AC30	BRACKET, THRUST (#F455354) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC31	SCREW, 1/4-20 X 1-1/4 (#10-F1980) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
AC32	HYDRAULIC LINE, TRIM CYLINDER, TOP (#32-F691254) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC33	LOCKWASHER, 5/16 (#13-53166) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.36 ~~$1.70~~
AC34	SCREW, 5/16-18 X 7/8 (#10-28782) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$2.32 ~~$2.90~~
AC35	O-RING (#25-627021) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$1.28 ~~$1.59~~
AC36	FILLER CAP (#F17518) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC37	STUD (#16-827512) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 16-F660273 Supersedes: 16-F660273	NLA
AC38	NUT, 5/16-18 (#11-8M0204668) Qty Required For Repair: 1	$2.96 ~~$3.70~~
AC39	TILT STOP (#F366433-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F366433 Supersedes: F366433	NLA
AC40	SPRING SET, BRUSH (#392-2529) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC41	BRUSH SET (#392-8989) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC42	PLUG (#19-F1966) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC43	FITTING, GREASE (#22-F213274) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: F1952, F213374, F55274 Qty Required For Repair: 3 Supersedes: F1952, F213374, F55274	NLA
AC44	BRACKET, SWIVEL (#1400-817868A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
AC45	BEARING (#23-F191169-1) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F191169 Qty Required For Repair: 2 Supersedes: F191169	NLA

Mercury Marine Parts Catalog

POWER TRIM 5H219-1 (ELECTRICAL COMPONENTS-SEE PG. 18)

This assembly is found in these models:
