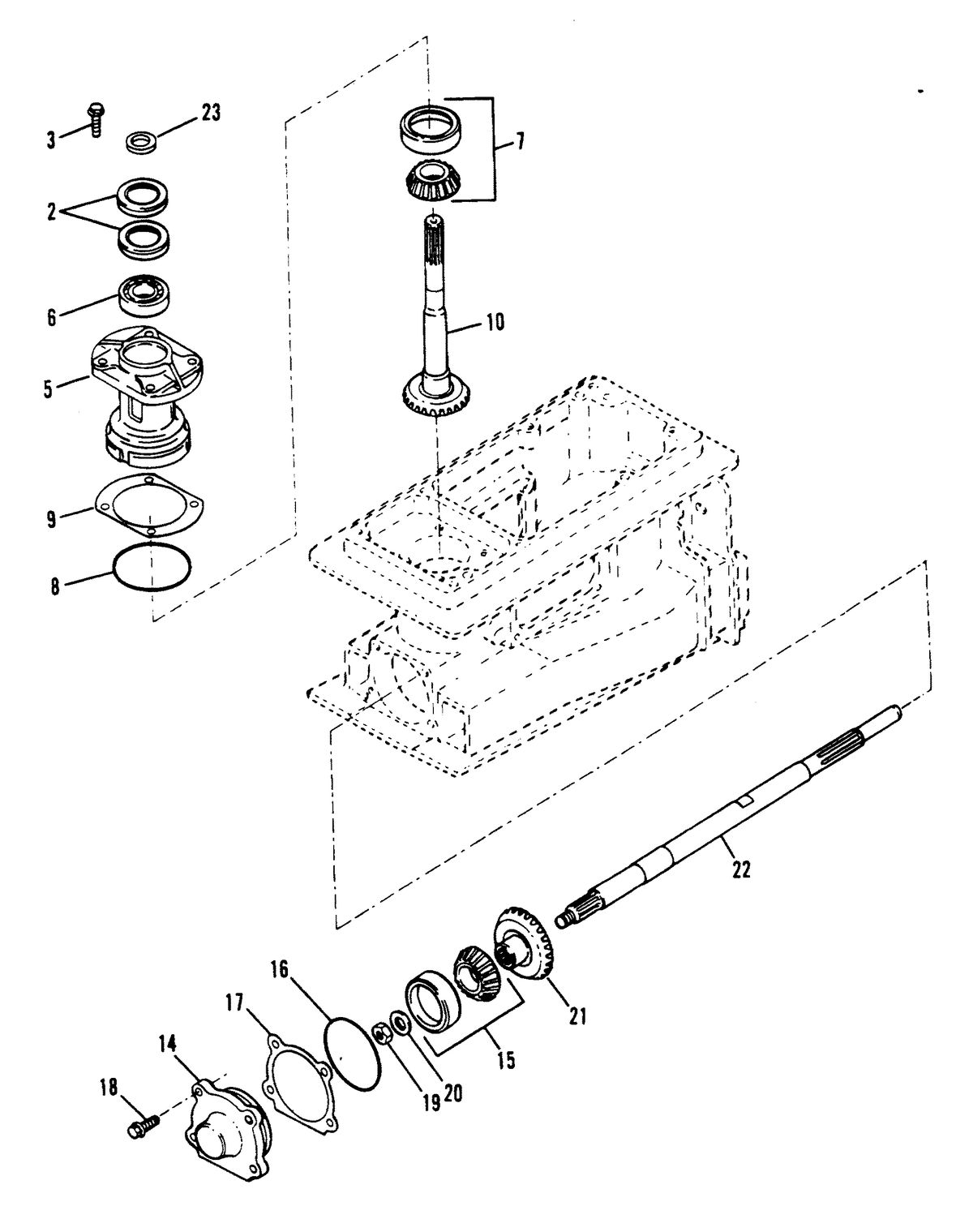

SPORTJET - 90 (JET DRIVE) 1995 - PINION AND IMPELLER SHAFT (SPLINED DRIVE)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 2 |
Qty Required For Repair: 2
|
$22.08
|
|
|
| 3 |
Qty Required For Repair: 4
|
$4.48
|
|
|
| 5 |
(Painted)
|
NLA
|
||
| 6 |
|
$63.68
|
|
|
| 7 |
(Cup And Cone)
Supersedes: 31-86748A 1 |
$49.44
|
|
|
| 8 |
Minimum Order Qty: 5
|
$4.56
|
|
|
| 9 |
(.002)
Qty Required For Repair: AR |
NLA
|
||
| 9 |
(.004)
Qty Required For Repair: AR |
NLA
|
||
| 9 |
(.005)
Qty Required For Repair: AR |
NLA
|
||
| 9 |
(.0075)
Qty Required For Repair: AR |
NLA
|
||
| 9 |
(.010)
Qty Required For Repair: AR |
NLA
|
||
| 9 |
(.020)
Qty Required For Repair: AR |
NLA
|
||
| 10 |
|
NLA
|
||
| 14 |
(Painted)
|
NLA
|
||
| 15 |
(Cup And Cone)
Supersedes: 31-86748A 1 |
$49.44
|
|
|
| 16 |
|
$3.04
|
|
|
| 17 |
(.002)
Qty Required For Repair: AR |
NLA
|
||
| 17 |
(.004)
Qty Required For Repair: AR |
NLA
|
||
| 17 |
(.005)
Qty Required For Repair: AR |
NLA
|
||
| 17 |
(.0075)
Qty Required For Repair: AR |
NLA
|
||
| 17 |
(.010)
Qty Required For Repair: AR |
NLA
|
||
| 17 |
(.020)
Qty Required For Repair: AR |
NLA
|
||
| 18 |
Qty Required For Repair: 4
|
$4.48
|
|
|
| 19 |
|
$2.80
|
|
|
| 20 |
|
NLA
|
||
| 21 |
|
NLA
|
||
| 22 |
|
NLA
|
||
| 23 |
|
$1.52
|
|
|
| - |
(Complete) (Painted) (No Impeller)
|
NLA
|
||
| - |
|
$149.03
|
|
Notes
1: AR = As Required
