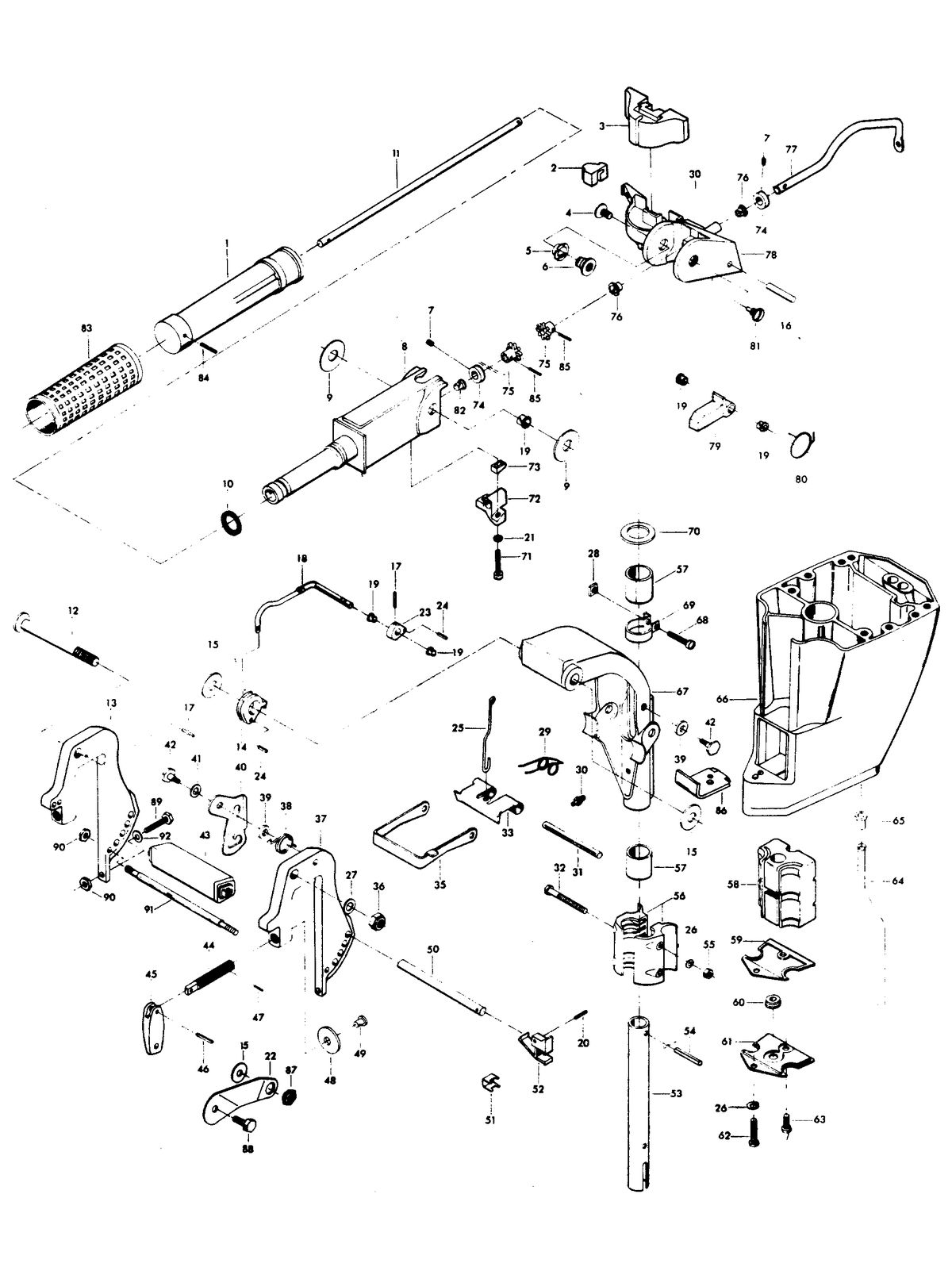

CHRYSLER - 6 (1976) - MOTOR LEG

Ref ID	Description	Price
1	GRIP, STEERING HANDLE W/SLEEVE (#FA456137) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F458137, FA458137, F2A458137 Supersedes: F458137, FA458137, F2A458137	NLA
2	BUMPER (#F318539) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F138539 Supersedes: F138539	NLA
3	SHOCK MOUNT UPPER (#F318347-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F318347 Supersedes: F318347	NLA
4	TRUSS HD SCREW, 5/16 - 18 X 5/8 (#10-F1799) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	BEARING, STEERING HANDLE INSERT (#23-812707) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 23-71984, 23-F286818, 23-F286828, F480818 Supersedes: 23-71984, 23-F286818, 23-F286828, F480818	$6.40 ~~$8.00~~
6	INSERT, STEERING HANDLE (#F286224-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286224 Supersedes: F286224	NLA
7	SOCKET HD SET SCREW, 1/4 - 28 X 3/16 (#10-832794) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-F1859 Qty Required For Repair: 2 Supersedes: 10-F1859	$8.24 ~~$10.30~~
8	STEERING HANDLE (#F717079-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286079, F286079-1, F286079-2, F717079 Supersedes: F286079, F286079-1, F286079-2, F717079	NLA
9	WASHER (#12-F286220) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.72 ~~$0.90~~
10	STEERING HANDLE GRIP DAMPENER (#25-8M0204645) Qty Required For Repair: 1	$1.84 ~~$2.30~~
11	SHAFT, STEERING HANDLE (#F717688) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F429688 Supersedes: F429688	NLA
12	STERN BRACKET PIVOT BOLT (#10-F318037) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	STERN BRACKET STARBOARD W/CLAMP SCREW, AND FOOT (#FK567532) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286032, FK517032, FK517532, F2A286032, F2A386032, F2A424032, F2A424532, FA286032, FFF000697, FFF000698, FFF000699, FS286032, FS286532 Supersedes: F286032, FK517032, FK517532, F2A286032, F2A386032, F2A424032, F2A424532, FA286032, FFF000697, FFF000698, FFF000699, FS286032, FS286532	NLA
14	LEVER, REVERSE LOCK RELEASE (#F286827) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	WASHER, STERN BRACKET (#12-F286286-1) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: F286286 Qty Required For Repair: 3 Supersedes: F286286	NLA
16	GROOVE PIN (#17-F1807) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	SPRING PIN (#17-F8538) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F8539 Qty Required For Repair: 2 Supersedes: F8539	NLA
18	LEVER REVERSE LOCK INTERMEDIATE (#820095A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$19.68 ~~$20.50~~
19	BEARING (#23-26856) Qty Required For Repair: 5 Minimum Order Qty: 1 Qty Required For Repair: 5	$3.20 ~~$4.00~~
20	SPRING PIN (#17-38489) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.00 ~~$5.00~~
21	INTERNAL TOOTH LOCKWASHER (#13-F8058) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F17028, F17089, FE4296238 Qty Required For Repair: 2 Supersedes: F17028, F17089, FE4296238	NLA
22	BRACKET, LOCK STEERING (#F516078) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	LEVER, REVERSE LOCK (#F286364T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286364 Supersedes: F286364	NLA
24	SPRING PIN (#17-F1794) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F8535, 17-F8536, F8534 Qty Required For Repair: 2 Supersedes: F8535, 17-F8536, F8534	NLA
25	LINK, REVERSE LOCK LEVER (#FA341510) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F341510, F286363, F286412, F286413, F286732, FA286885 Supersedes: F341510, F286363, F286412, F286413, F286732, FA286885	NLA
26	SPRING LOCKWASHER (#13-26992) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$0.96 ~~$1.20~~
27	PLAIN WASHER (#12-34931) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.00 ~~$2.50~~
28	NUT, 1/4 - 20 (#11-F1608) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	SPRING, REVERSE LOCK (#24-F286300) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	GREASE FITTING (#22-F213274) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: F1952, F213374, F55274 Qty Required For Repair: 3 Supersedes: F1952, F213374, F55274	NLA
31	GROOVE PIN (#F1839) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	HEX BOLT, 1/4 - 20 X 2 3/8 (#FA1844) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1801 Qty Required For Repair: 2 Supersedes: F1801	NLA
33	REVERSE LOCK (#F516349) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F513349 Supersedes: F513349	NLA
35	BRACKET SHALLOW WATER DRIVE (#F318433) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	STOP NUT, 3/8 - 16 (#11-F7026) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F7005 Supersedes: F7005	NLA
37	STERN BRACKET PORT W/CLAMP SCREW, AND FOOT (#FK567532) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286032, FK517032, FK517532, F2A286032, F2A386032, F2A424032, F2A424532, FA286032, FFF000697, FFF000698, FFF000699, FS286032, FS286532 Supersedes: F286032, FK517032, FK517532, F2A286032, F2A386032, F2A424032, F2A424532, FA286032, FFF000697, FFF000698, FFF000699, FS286032, FS286532	NLA
38	SPRING, TILT LOCK (#24-F286544-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286544, F285544 Supersedes: F286544, F285544	NLA
39	SPACER, TILT LOCK (#23-819226) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F286451 Qty Required For Repair: 2 Supersedes: F286451	NLA
40	TILT LOCK (#F429541) Qty Required For Repair: 1 Minimum Order Qty: 1	$55.92 ~~$58.25~~
41	BOWED SPRING WASHER (#13-69150) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.96 ~~$3.70~~
42	TILT LOCK PIVOT (#10-F286422-1) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F286422 Qty Required For Repair: 2 Supersedes: F286422	NLA
43	CARRYING HANDLE (#F318647) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	CLAMP SCREW (#10-826248A1) Comment: W/ITEMS 47, 48 & 49 ORIGINAL FORCE P/N A298073-1 Qty Required For Repair: 2 Minimum Order Qty: 1 W/ITEMS 47, 48 & 49 ORIGINAL FORCE P/N A298073-1 Qty Required For Repair: 2	NLA
45	HANDLE, CLAMP SCREW (#F424075T3) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F424075T, F424075, F298075, F425075 Qty Required For Repair: 2 Supersedes: F424075T, F424075, F298075, F425075	NLA
46	SPRING PIN (#17-24198) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
47	SPRING PIN (#17-F8537) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
48	CLAMP SCREW FOOT (#F24074) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F9074-2 Qty Required For Repair: 2 Supersedes: F9074-2	NLA
49	STUD CLAMP SCREW (#17-F66480) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F66380 Qty Required For Repair: 2 Supersedes: F66380	NLA
50	LOCK BAR W/HANDLE AND SPRING (#851924A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	SPRING, LOCK BAR HANDLE (#24-F286461) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	LOCK BAR HANDLE (#F286114) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
53	KING PIN (#F318019) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
54	SPRING PIN (#10-830112A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
55	HEX NUT, 1/4 - 20 (#11-64015) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	$2.16 ~~$2.70~~
56	BRACKET SHOCK MOUNT LOWER (#F318956) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
57	BEARING, SWIVEL BRACKET (#23-F286169) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
58	SHOCK MOUNT LOWER (#F318346) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
59	GASKET, SHOCK MOUNT PLATE (#27-F318967) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	SEAL, SHOCK MOUNT PLATE (#25-F318861) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
61	PLATE, SHOCK MOUNT LOWER (#F318963) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
62	HEX CAP SCREW, 1/4 - 28 X 5/8 (#10-F1715) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F17017, F1746, FE4296228 Supersedes: F17017, F1746, FE4296228	NLA
63	HEX CAP SCREW, 1/4 - 20 X 1/2 (#10-73286) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.36 ~~$1.70~~
64	WATER LINE (#F409244) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
65	SEAL, INLET WATER LINE UPPER (#26-F318342) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
66	MOTOR LEG (#F516133) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
67	SWIVEL BRACKET (#A318072 3) Comment: W/ITEMS 30 AND 57 Qty Required For Repair: 1 W/ITEMS 30 AND 57	NLA
68	FILL HD SCREW, 1/4 - 20 X 1 3/8 (#10-F1820) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
69	STEERING FRICTION LAMP (#54-F286573-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286573 Supersedes: F286573	NLA
70	WASHER, SWIVEL BRACKET (#12-F286011) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
71	FILL HD SCREW, 10 - 24 X 7/8 (#10-F1829) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
72	BEARING, STEERING HANDLE (#F487816-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F487816 Supersedes: F487816	NLA
73	WEDGE, STEERING HANDLE (#819227) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F341693 Supersedes: F341693	NLA
74	RETAINER W/SET SCREW (#FA343178) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F286178, F343178 Qty Required For Repair: 2 Supersedes: F286178, F343178	NLA
75	STEERING HANDLE GEAR (#43-8180091) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
76	BEARING (#23-26841) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	$5.84 ~~$7.30~~
77	SHAFT, MAGNETO CONTROL (#F429838) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
78	STEERING ARM (#817779A1) Comment: W/ITEMS 2 AND 30 ORIGINAL FORCE P/N A341582-1 Qty Required For Repair: 1 Minimum Order Qty: 1 W/ITEMS 2 AND 30 ORIGINAL FORCE P/N A341582-1	NLA
79	STOP, STEERING HANDLE (#F286490T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286490 Supersedes: F286490	NLA
80	SPRING, STEERING HANDLE STOP (#24-F286868) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
81	SCREW, STEERING HANDLE PIVOT (#10-823595) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 10-F286080 Supersedes: 10-F286080	NLA
82	BEARING (#23-97896) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.44 ~~$4.30~~
83	SLEEVE (#828406) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F458695 Supersedes: F458695	NLA
84	SPRING PIN (#17-25810) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$4.48 ~~$5.60~~
85	SPRING PIN (#17-29908) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
86	STRAP, REVERSE THRUST (#F516835) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
87	NUT, STEERING LOCK BRACKET (#11-F516697) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
88	SCREW, STEERING LOCK BRACKET (#10-F516552) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
89	HEX SLOTTED HD SCREW, 1/4 - 20 X 3 3/16 (#10-F1887) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1489 Qty Required For Repair: 2 Supersedes: F1489	NLA
90	LOCK NUT (#11-8267118) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$3.28 ~~$3.39~~
91	TIE BAR (#F516273) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
92	PLAIN WASHER (#12-8M0204649) Qty Required For Repair: 2 Qty Required For Repair: 2	$0.96 ~~$1.20~~
	STEERING HANDLE INDICATOR (NOT SHOWN) (#37-F286894-3) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286894-2, F286894-1, F286894, F286984-3, F338894, FC286894, FFF000499, FFF000500, FFF000501 Supersedes: F286894-2, F286894-1, F286894, F286984-3, F338894, FC286894, FFF000499, FFF000500, FFF000501	NLA
	DECAL, TILT RELEASE (NOT SHOWN) (#37-F286585-2) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286585-1, F286585, FC286585, FFF000498 Supersedes: F286585-1, F286585, FC286585, FFF000498	NLA

This assembly is found in these models:

CHRYSLER > 6 (1976)
CHRYSLER > 6 (1977)
