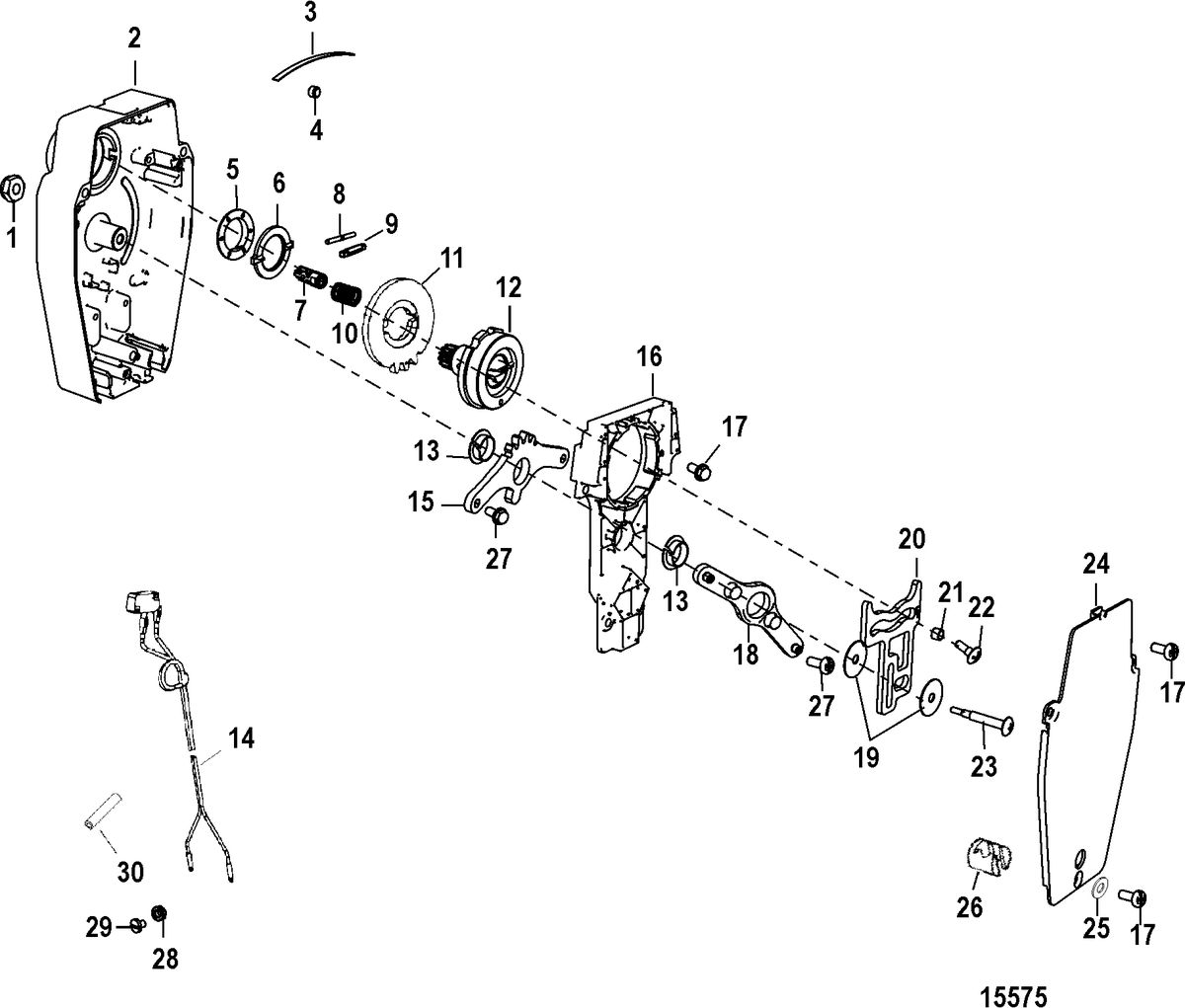

ACCESSORIES - Remote Controls and Components - Modular Components(4500 Models)

Ref ID	Description	Price
-	HOUSING ASSEMBLY (#877701T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	NOT SOLD SEPARATE, Bolt, Locking, Special (#NSS) Qty Required For Repair: 1	NLA
2	NOT SOLD SEPARATE, Housing, Control (#NSS) Qty Required For Repair: 1	NLA
3	NOT SOLD SEPARATE, Spring, Detent (#NSS) Qty Required For Repair: 6 Qty Required For Repair: 6	NLA
4	NOT SOLD SEPARATE, Roller, Detent (#NSS) Qty Required For Repair: 6 Qty Required For Repair: 6	NLA
5	BUSHING (#23-856638) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	NOT SOLD SEPARATE, Lock, Throttle Only (#NSS) Qty Required For Repair: 1	NLA
7	NOT SOLD SEPARATE, Shaft, Throttle Only (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
8	NOT SOLD SEPARATE, Pin, Lock, Round (#NSS) Qty Required For Repair: 1	NLA
9	NOT SOLD SEPARATE, Pin, Drive, Square (#NSS) Qty Required For Repair: 1	NLA
10	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
11	NOT SOLD SEPARATE, Gear, Shift (#NSS) Qty Required For Repair: 1	NLA
12	NOT SOLD SEPARATE, Shaft, Handle (#NSS) Qty Required For Repair: 1	NLA
13	NYLINER (#23-74647) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.10 ~~$2.16~~
14	SWITCH ASSEMBLY, Neutral Start (#87-822198A2) Comment: (Bayliner) Qty Required For Repair: 1 Minimum Order Qty: 1 (Bayliner)	$41.22 ~~$36.78~~
14	SWITCH ASSEMBLY, Neutral Start (#87-822198A1) Comment: (Mercury) Qty Required For Repair: 1 Minimum Order Qty: 1 (Mercury)	$44.51 ~~$40.18~~
-	SWITCH (#87-822198) Qty Required For Repair: 1 Minimum Order Qty: 1	$9.73 ~~$10.13~~
15	NOT SOLD SEPARATE, Arm Assembly, Shift (#NSS) Qty Required For Repair: 5 Qty Required For Repair: 5	NLA
16	NOT SOLD SEPARATE, Support Assembly, Shaft (#NSS) Qty Required For Repair: 1	NLA
17	SCREW, (#10-32 x .625) (#10-824831) Qty Required For Repair: 7 Minimum Order Qty: 1 Supersedes: 10-824831T Qty Required For Repair: 7 Supersedes: 10-824831T	$1.12 ~~$1.16~~
18	NOT SOLD SEPARATE, Arm Assembly, Throttle (#NSS) Qty Required For Repair: 1	NLA
19	NOT SOLD SEPARATE, Washer, Plastic (#NSS) Qty Required For Repair: 1	NLA
20	NOT SOLD SEPARATE, Plate, Throttle (#NSS) Qty Required For Repair: 1	NLA
21	NOT SOLD SEPARATE, Roller, Throttle Plate (#NSS) Qty Required For Repair: 1	NLA
22	NOT SOLD SEPARATE, Bolt, Shoulder, Special (#NSS) Qty Required For Repair: 1	NLA
23	NOT SOLD SEPARATE, Bolt, Shoulder, Special (#NSS) Qty Required For Repair: 1	NLA
24	NOT SOLD SEPARATE, Back Plate (#NSS) Qty Required For Repair: 1	NLA
25	WASHER, (.200 x .440 x .032) (#12-24676) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.12 ~~$1.40~~
26	GROMMET (#25-85879) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.90 ~~$2.97~~
27	SCREW, (#8-32 x .375) (#10-8M0204698) Qty Required For Repair: 2 Qty Required For Repair: 2	$2.00 ~~$2.50~~
28	NUT, (#10-32) (#11-859667) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	SCREW, (#10-32 x .250) (#10-859666) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
30	INSULATOR, (2.00 Inch) (#85-623594) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.48 ~~$0.60~~

ACCESSORIES REMOTE CONTROL SYSTEMS AND COMPONENTS Modular Components(4500 Models)
