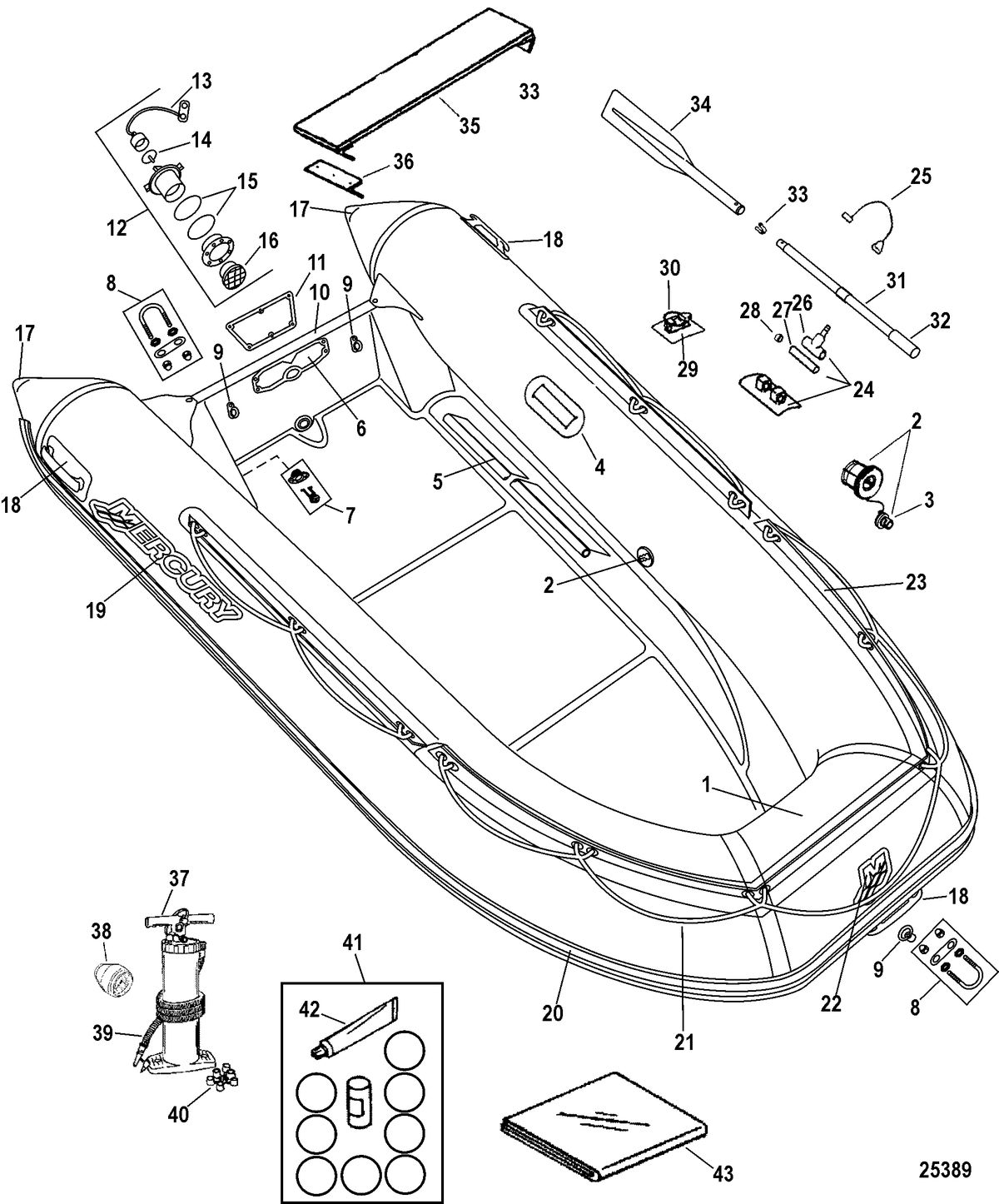

INFLATABLES - Mercury OceanRunner Hypalon RIB 2006-2009 - Mercury RIB OceanRunner - 290 Model(2006)

Ref ID	Description	Price
1	TUBE ASSEMBLY, Hypalon - White (#62-899898029) Comment: - 2006 Models - NOTE: Includes Fabric Patches And Protection Rim Qty Required For Repair: 1 Minimum Order Qty: 1 - 2006 Models - NOTE: Includes Fabric Patches And Protection Rim	NLA
1	NOT SOLD SEPARATE, Hull (#NSS) Qty Required For Repair: 1	NLA
2	VALVE ASSEMBLY, Air - 8 Slots - Gray (#62-809887) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
3	CAP ASSEMBLY, Air Valve - Gray (#62-8096961) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
4	WEBBING, Seat - Dark Gray Web/Achilles Hypalon White Fabric (#62-896452) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891679 Qty Required For Repair: 2 Supersedes: 62-891679	$15.70 ~~$14.01~~
5	PROTECTION RIM, PVC (620 cm Bulk) (#62-899641T) Comment: - NOTE: Located Between Tube And Hull - Cut As Required Qty Required For Repair: 1 Minimum Order Qty: 1 - NOTE: Located Between Tube And Hull - Cut As Required	NLA
6	PAD, Transom - Plastic, Dark Gray (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
7	DRAIN SOCKET ASSEMBLY, Hull (#62-898169) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.02 ~~$11.64~~
8	U BOLT ASSEMBLY, (M10 x 9.7 cm x 4.2 cm) Stainless Steel (#62-898173) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
9	EYE NUT, (M10) Stainless Steel (#62-898174) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
10	CAP, Transom Cover (W30 mm x 79 cm) Stainless Steel (#62-855403007) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.63 ~~$10.37~~
11	PLATE, Transom - Aluminum (#62-811336005) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899639 Supersedes: 62-899639	$20.30 ~~$18.14~~
12	PLUG ASSEMBLY, Drain - Light Gray (24 mm) (#62-830222A3) Qty Required For Repair: 1 Minimum Order Qty: 1	$20.96 ~~$18.70~~
13	CAP/STRING AND CLIP, Drain Plug - Light Gray (#62-8097801) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.04 ~~$9.86~~
14	CHECK VALVE, Drain Plug (#62-824409) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.30 ~~$1.16~~
15	GASKET, Drain Plug (#27-830221) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
16	FILTER/SCREEN, Drain Plug - Light Gray (#62-881829) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.53 ~~$2.25~~
17	END CONE CAP, Hypalon - Dark Gray With Flat End (120 mm x H96 mm) (#62-899877003) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899877001 Qty Required For Repair: 2 Supersedes: 62-899877001	NLA
18	HANDLE/LIFTING, Side Or Bow - Hypalon Dark Gray (#62-896462) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: 62-891688, 62-898176 Qty Required For Repair: 3 Supersedes: 62-891688, 62-898176	$62.72 ~~$56.00~~
19	LOGO, Side - Raised Mercury - Hypalon - Navy Blue On White (#62-883901001) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899655 Qty Required For Repair: 2 Supersedes: 62-899655	$35.12 ~~$31.39~~
20	RUBSTRAKE, Side - Hypalon - One Navy Blue Line On Dark Gray (#62-891683) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	ROPE, (12.00 Feet) Navy Blue (#62-8097782) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.66 ~~$13.99~~
22	LOGO, Bow - Hypalon - White M With Light Gray Wave On Dark Gray (#62-883900002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899657 Supersedes: 62-899657	NLA
23	LACING CUFF ASSEMBLY, Rope - Hypalon - Navy Blue Hogging With Eyelets (5.2 m) (#62-898196) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-898190012 Supersedes: 62-898190012	NLA
24	OARLOCK ASSEMBLY, Dark Gray (#62-896453) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-891680A01 Qty Required For Repair: 2 Supersedes: 62-891680A01	$51.12 ~~$45.65~~
25	CAP/STRING AND CLIP, Oarlock - Dark Gray (#62-8M0054771) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-811329 2 Qty Required For Repair: 2 Supersedes: 62-811329 2	$5.25 ~~$4.68~~
26	HOLDER, Oarlock - PVC Dark Gray (#62-8244102) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.80 ~~$9.65~~
27	PIN, Oarlock (#62-824411) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.79 ~~$1.62~~
28	CAP, Oarlock - Hypalon Dark Gray (#62-809779003) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.78 ~~$1.59~~
29	RETAINER ASSEMBLY, Oarlock - Hypalon Dark Gray (#62-896454) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$11.49 ~~$10.27~~
30	BUNGEE STRAP, White (#62-878052) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.53 ~~$0.46~~
31	OAR HANDLE ASSEMBLY, (110 cm) Dark Gray - Center Hole Location (#62-885160) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$29.36 ~~$30.59~~
32	GRIP, Oar Handle - Dark Gray (#62-8118362) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$5.26 ~~$4.70~~
33	CLIP, Oar Handle (#62-824417) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.59 ~~$2.31~~
34	OAR BLADE, Dark Gray - M Logo (#62-885157) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$23.98 ~~$21.41~~
35	SEAT ASSEMBLY, Aluminum (L85 cm x W20 cm x T15 mm) (#62-811307T05) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	BRACKET, Seat - Light Gray Plastic (#62-8113131) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.40 ~~$9.30~~
37	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
38	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
39	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
40	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
41	REPAIR KIT, Hypalon - White (#62-898175) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.29 ~~$16.33~~
-	REMOVER/INSTALLER TOOL, Air Valve - Plastic (#62-896317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.73 ~~$3.33~~
42	CEMENT, Hypalon (30 ml) (#92-891690) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.02 ~~$11.64~~
43	BAG, Storage (L2.75 m x W1.48 m) Gray (#62-899647T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

INFLATABLES OCEANRUNNER HYPALON RIB Mercury RIB OceanRunner - 290 Model(2006)

Mercury Marine Parts Catalog

INFLATABLES - Mercury OceanRunner Hypalon RIB 2006-2009 - Mercury RIB OceanRunner - 290 Model(2006)

This assembly is found in these models:
