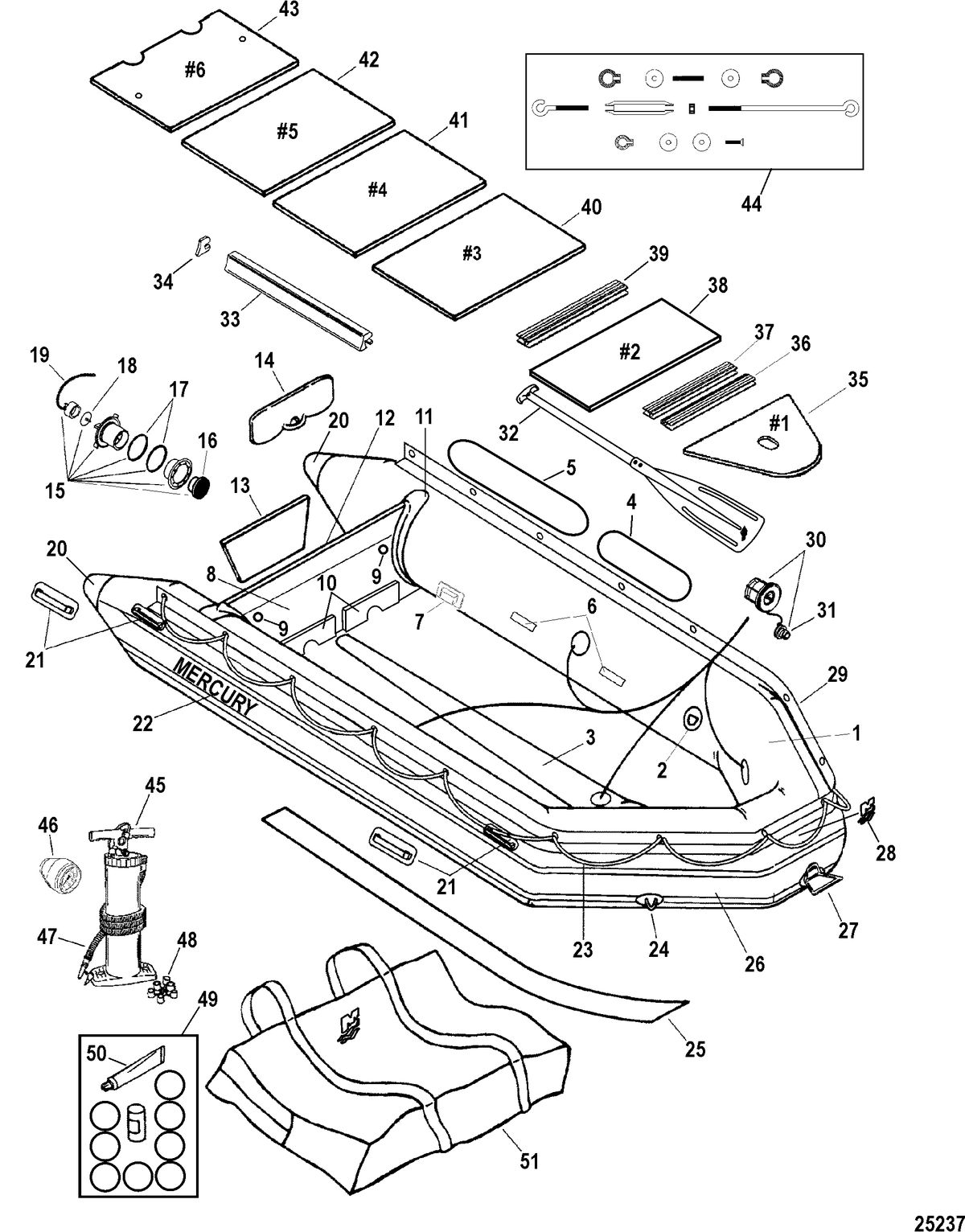

Mercury Heavy Duty 530 Model(With Aluminum Floors)

Ref ID	Description	Price
1	SKIN ASSEMBLY, Achilles Hypalon - Red/Black (17 Feet 4 Inches), 2005/2006 Models (#62-896480002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896480001, 62-896480 Supersedes: 62-896480001, 62-896480	NLA
2	D RING, Medium - Stainless Steel On Achilles Red Hypalon Fabric (#62-891697) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$20.91 ~~$18.66~~
3	KEEL, Achilles Hypalon (L380 cm) Black (#62-896481) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	WEAR PATCH, Hypalon - Red (L96.3 cm x W29 cm) (#62-899717002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	WEAR PATCH, Hypalon - Red (L139.6 cm x W29 cm) (#62-899718002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	STRAP, T Paddle - Red Hypalon Fabric With Black Velcro (#62-891696) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 62-891696001 Qty Required For Repair: 4 Supersedes: 62-891696001	$2.29 ~~$2.03~~
7	STOPPER, Side Joiner - Hypalon Black (#62-891694) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
8	TRANSOM ASSEMBLY, PVC Coated - Black (#62-809536005) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	TOWING HOLE SET, (28 mm x T36 mm) Stainless Steel (#62-898172001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	RETAINER, (L20 cm) Black (#62-899677) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	HOLDER, Transom - Hypalon Black (T36 mm) (#62-891693) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
12	CAP, Transom Cover (W36 mm x 135 cm) PVC Black (#62-802607004) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.10 ~~$5.44~~
13	PLATE, Transom - Black Wood (#62-8113362) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	PAD, Transom - Aluminum (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
15	PLUG ASSEMBLY, Drain - Black (24 mm) (#62-830222A4) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$25.52 ~~$22.80~~
16	FILTER/SCREEN, Drain Plug - Light Gray (#62-881829) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.53 ~~$2.25~~
17	GASKET, Drain Plug (#27-830221) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
18	CHECK VALVE, Drain Plug (#62-824409) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.30 ~~$1.16~~
19	CAP/STRING AND CLIP, Drain Plug - Black (#62-8097802) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$7.07 ~~$6.31~~
20	END CONE CAP, Hypalon - Black With Flat End (120 mm x H96 mm) (#62-899877004) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
21	HANDLE/LIFTING, Side - Black (#62-891703) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$41.79 ~~$37.33~~
22	LOGO, Side - Raised Mercury - Hypalon - Black On Red (#62-883915) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	ROPE, (12.00 Feet) Black (#62-8097783) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
24	D RING, Large - Stainless Steel On Achilles Black Hypalon Fabric (#62-891702) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
25	RUBSTRAKE, Bottom - Hypalon Black With Three Ridges (L4.5 m x W8 cm) (#62-891701001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	RUBSTRAKE, Side - Hypalon - With One Red Line On Black (L10.8 m x W10 cm) (#62-891700001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	HANDLE, Bow Lifting - Chrome/Black Fabric (#62-891699) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	LOGO- M, Bow - Hypalon - Black On Red (#62-883916001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	LACING CUFF ASSEMBLY, Hypalon Black Hogging With Eyelets (L10.23 m) (#62-809784018) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809784010 Supersedes: 62-809784010	NLA
30	VALVE ASSEMBLY, Air - 8 Slots - Black (#62-879184A02) Qty Required For Repair: 6 Minimum Order Qty: 1 Supersedes: 62-809887 1 Qty Required For Repair: 6 Supersedes: 62-809887 1	$25.52 ~~$26.59~~
31	CAP ASSEMBLY, Air Valve - Black (#62-879184003) Qty Required For Repair: 6 Minimum Order Qty: 1 Supersedes: 62-809696 2 Qty Required For Repair: 6 Supersedes: 62-809696 2	$2.61 ~~$2.32~~
32	T PADDLE, (130 cm) Black (#62-8809991) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
33	SIDE JOINER, (L80 cm) Aluminum (#62-809521009) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
34	CAP, Side Joiner - Front Port Or Rear Starboard (#62-809522004) Comment: - Front Port Or Rear Starboard Qty Required For Repair: 6 Minimum Order Qty: 1 - Front Port Or Rear Starboard Qty Required For Repair: 6	NLA
34	CAP, Side Joiner - Rear Port Or Front Starboard (#62-809522005) Comment: - Rear Port Or Front Starboard Qty Required For Repair: 6 Minimum Order Qty: 1 - Rear Port Or Front Starboard Qty Required For Repair: 6	NLA
35	FLOORBOARD #1, Fiberglass - Dark Gray (L66.5 cm x W117 cm x H15) (#62-896482T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896482 Supersedes: 62-896482	NLA
36	H CHANNEL, Tongue Style - A Shape (L108 cm x D15 mm) Aluminum (#62-809524001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	H CHANNEL, Groove Style - H Shape (L108 cm x D15 mm) (#62-809525001) Qty Required For Repair: 1 Minimum Order Qty: 1	$25.49 ~~$22.77~~
38	FLOORBOARD #2, Fiberglass - Dark Gray (L36 cm x W122/134 x H15 mm) (#62-896483T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896483 Supersedes: 62-896483	NLA
39	H CHANNEL, Groove - M Shape (L123 cm x W24 mm x T15 mm) (#62-896478001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	FLOORBOARD #3, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896484T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896484 Supersedes: 62-896484	NLA
41	FLOORBOARD #4, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896485T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896485 Supersedes: 62-896485	NLA
42	FLOORBOARD #5, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896486T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896486 Supersedes: 62-896486	NLA
43	FLOORBOARD #6, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896487T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896487 Supersedes: 62-896487	NLA
44	STRUT SET, Transom, Floorboard #6 To Transom (#62-898287T01) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
45	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
46	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
47	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
48	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
49	REPAIR KIT, Achilles Hypalon - Red/Black (#62-896345A01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-891704A01 Supersedes: 62-891704A01	$26.13 ~~$23.33~~
50	CEMENT, Hypalon (30 ml) (#92-891690) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.02 ~~$11.64~~
51	BAG, Storage/Carrying (#62-896488T01) Comment: - Flap Style - For Boat Qty Required For Repair: 1 Minimum Order Qty: 1 - Flap Style - For Boat	NLA
51	BAG, Storage/Carrying (#62-896489T01) Comment: - Zipper Style - For Floorboards Qty Required For Repair: 1 Minimum Order Qty: 1 - Zipper Style - For Floorboards	NLA

Mercury Heavy Duty 530 Model(With Aluminum Floors)

This assembly is found in these models:
