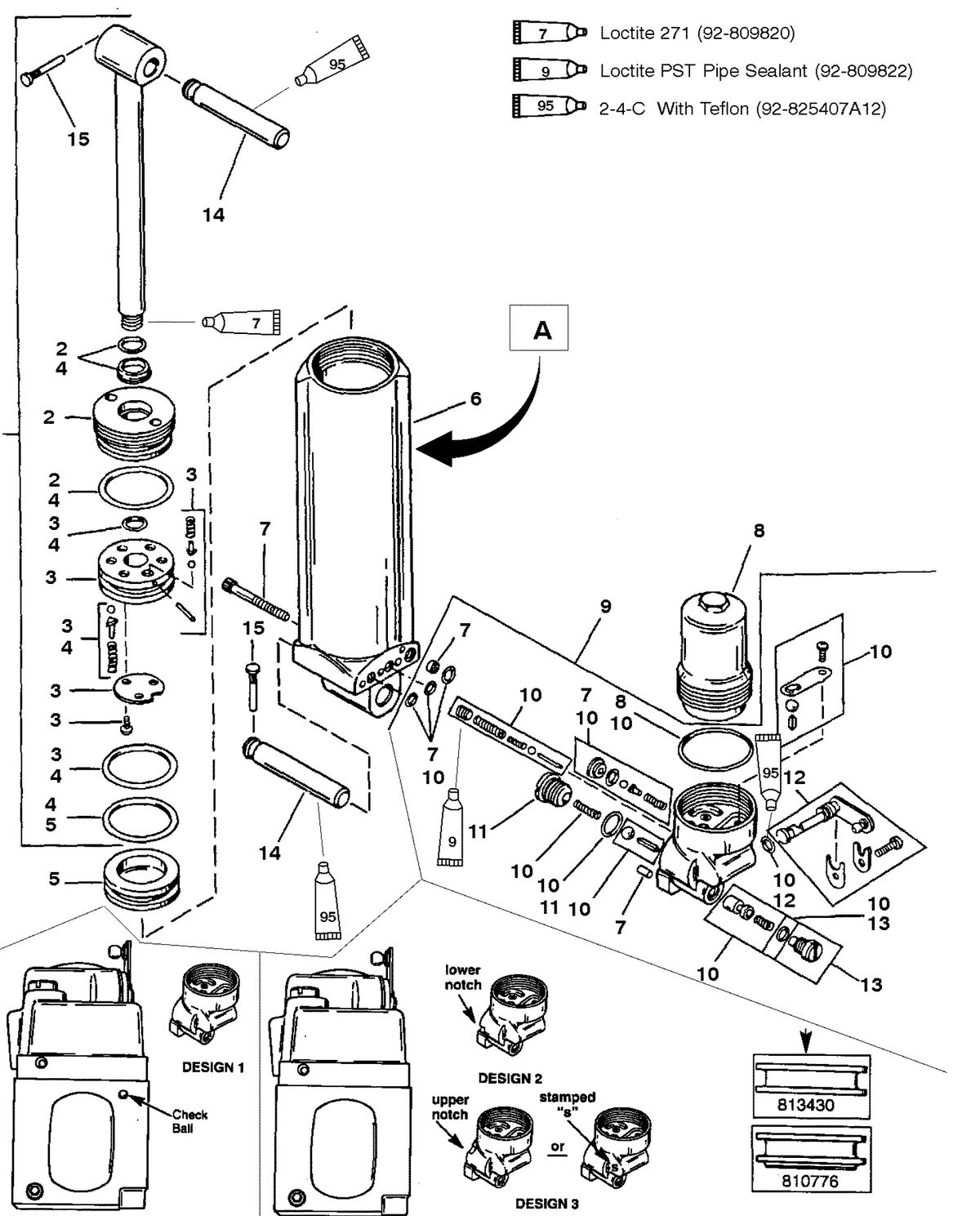

MARINER - 40 (4 CYL.) - MAN. TILT COMPONENTS (DESIGN I) -L. SHAFT (S/N-C159200 & UP)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| - |
(S/N-0D279349 & BELOW) INCLUDES ALL PARTS ON THIS PAGE
|
$1,198.46
|
|
|
| - |
(S/N-0D279350 & UP) INCLUDES ALL PARTS ON THIS PAGE
|
$1,198.46
|
|
|
| 1 |
|
$448.07
|
|
|
| 2 |
|
NLA
|
||
| 3 |
|
NLA
|
||
| 4 |
|
NLA
|
||
| 5 |
SEE FOOTNOTE AND ILLUSTRATION
|
NLA
|
||
| 5 |
SEE FOOTNOTE AND ILLUSTRATION SUPERSEDES TO ANOTHER PART NUMBER
|
NLA
|
||
| 6 |
(DESIGN I) SEE ILLUSTRATION
Supersedes: 813431 |
NLA
|
||
| 6 |
(DESIGN II/III) SEE ILLUSTRATION
Supersedes: 811224A 1 |
$532.13
|
|
|
| 7 |
Supersedes: 813433A 2
|
$35.20
|
|
|
| 8 |
Supersedes: 813454A 2
|
$289.04
|
|
|
| 9 |
Supersedes: 813455T 4
|
$491.69
|
|
|
| 10 |
(DESIGN I/II)
|
NLA
|
||
| 11 |
(DESIGN I/II)
|
NLA
|
||
| 10 |
(DESIGN III)
|
NLA
|
||
| 11 |
(DESIGN III)
|
NLA
|
||
| 12 |
(S/N 0G236678 & BELOW)
|
NLA
|
||
| 12 |
(S/N 0G236679 & UP)
|
NLA
|
||
| 13 |
|
NLA
|
||
| 14 |
Qty Required For Repair: 2
|
$21.84
|
|
|
| 15 |
Qty Required For Repair: 2
Supersedes: 17-13794, 17-19603 |
$3.52
|
|
Notes
5: LUBRICATE ALL O-RINGS USING QUICKSILVER POWER TRIM AND STEERING FLUID OR (ATF) TYPE F, FA OR DEXRON II OR III.
6: TO ENSURE ORDERING CORRECT MEMORY PISTON, CHECK AND COMPARE TO DRAWING ILLUSTRATION.
