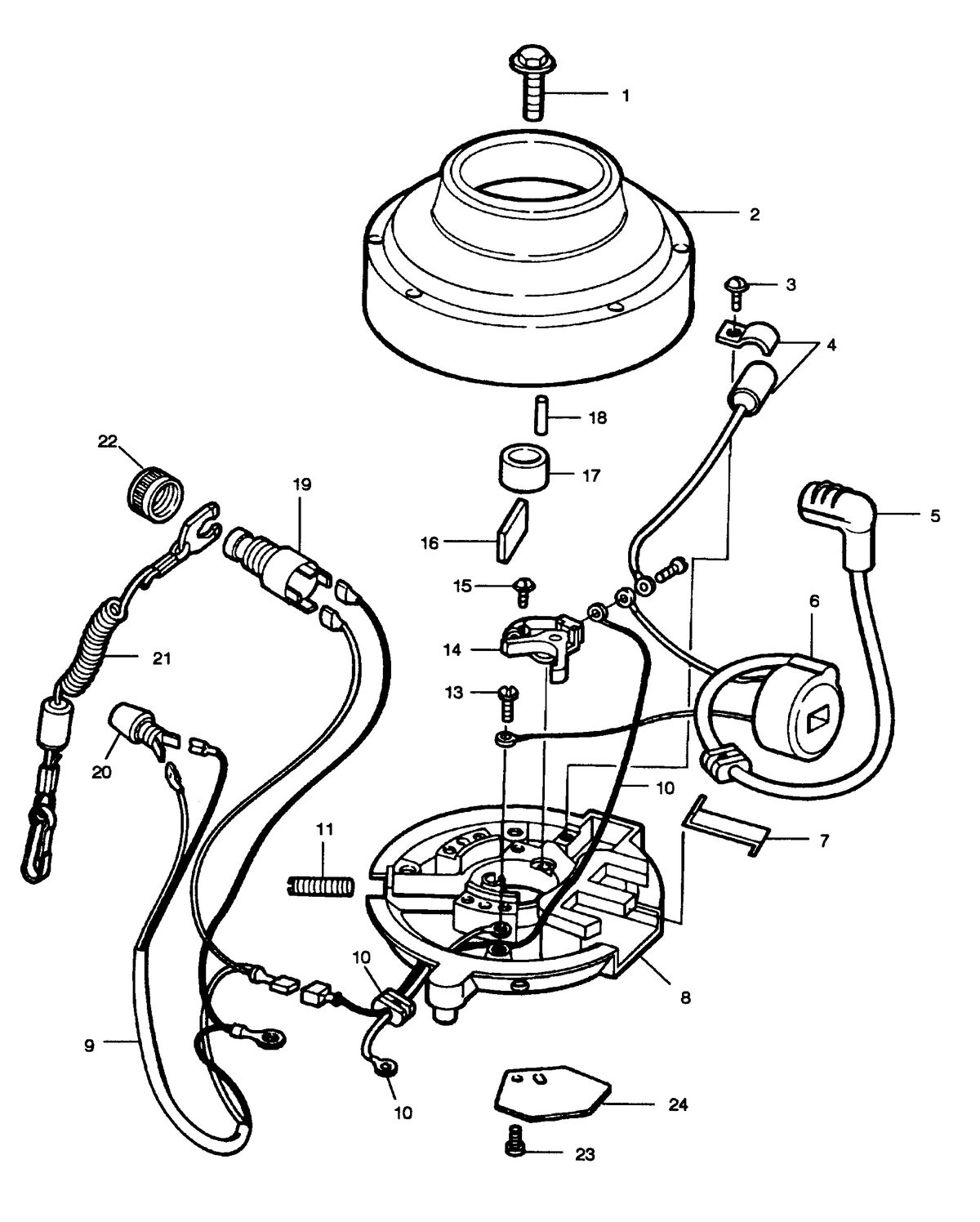

SEARS - 5 H.P. (1988) - MAGNETO

Ref ID	Description	Price
1	SCREW (#10-F521552) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	FLYWHEEL (#F535097) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SCREW (#F12090) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F5900, F59001, FX5900 Qty Required For Repair: 2 Supersedes: F5900, F59001, FX5900	NLA
4	CONDENSER W/CLAMP (#FK12357) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F12357, F12372 Supersedes: F12357, F12372	NLA
5	SPARKIE KIT (#85-63709A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.32 ~~$7.90~~
6	COIL W/LEAD WIRE, WEDGE AND SPARKIE (#FK12369) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F12358, F12369 Supersedes: F12358, F12369	NLA
7	WEDGE SPRING (#F12350) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F12363 Supersedes: F12363	NLA
8	STATOR PLATE W/CORE (#F12362) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	WIRE (#84-F702908) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	WIRE & GROMMET PACKAGE (#F12361) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	FRICTION SCREW (#10-824678) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F12066, FX3428 Supersedes: F12066, FX3428	NLA
13	SCREW, 6 - 32 X 5/16 (#10-819074) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F1755, F1298 Supersedes: F1755, F1298	NLA
14	CONTACT SET (#F12359) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F12349 Supersedes: F12349	$34.96 ~~$36.42~~
15	SCREW (#F12090) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F5900, F59001, FX5900 Qty Required For Repair: 2 Supersedes: F5900, F59001, FX5900	NLA
16	FELT (#F12360) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F11559, F14196, F14538, F12228, F5446 Supersedes: F11559, F14196, F14538, F12228, F5446	NLA
17	CAM (#F521002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	KEY, FLYWHEEL (#28-F521498) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	SWITCH, EMERGENCY STOP (#FK681602) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F5H252, F660329, F660602, F681287, F681602, F686602, F702602 Supersedes: F5H252, F660329, F660602, F681287, F681602, F686602, F702602	NLA
20	SWITCH, STOP (#87-824440A18) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 87-817952A 1, 87-F702449 Supersedes: 87-817952A 1, 87-F702449	NLA
21	LANYARD (#879104) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 819399A 1 Supersedes: 819399A 1	NLA
22	NUT (#11-855594) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 22-F681188, F660188 Supersedes: 22-F681188, F660188	NLA
23	SCREW, 1/4 - 20 X 1/2 (#10-34939) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	CAM, THROTTLE (#F521192-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F521192 Supersedes: F521192	NLA

This assembly is found in these models:

SEARS > 5 H.P. (1988)
