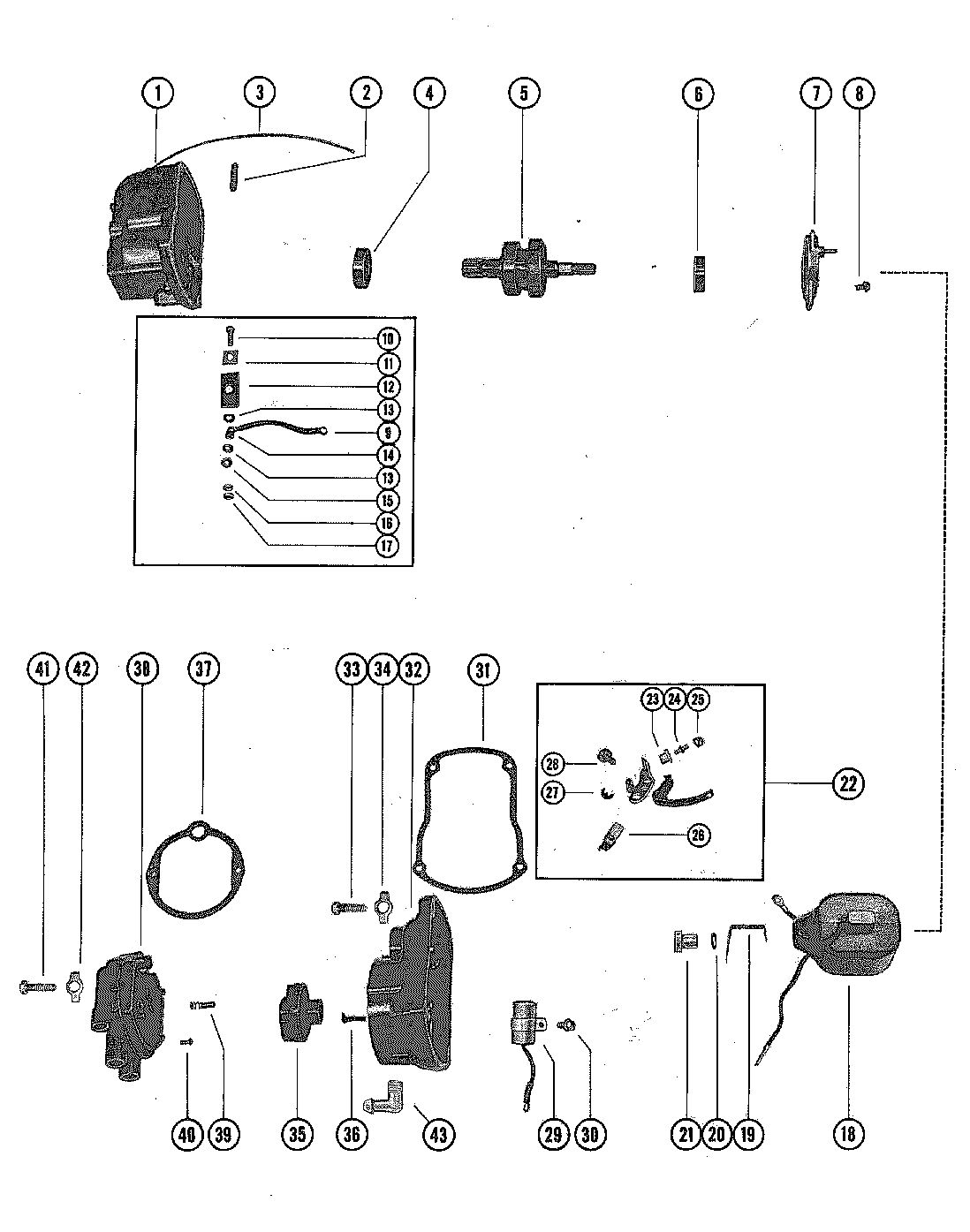

MERCURY - 500 - MAGNETO ASSEMBLY (INTERNAL PARTS)

Ref ID	Description	Price
-	MAGNETO ASSEMBLY, COMPLETE (#394-2271A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	FRAME, MAGNETO HOUSING (#394-1570) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SCREW, SET - COIL BRIDGE (#10-25510) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
3	LOCKWIRE, COIL BRIDGE SET SCREW (#394-1051) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	BEARING, BALL (DRIVE END ) (#30-24998) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	MAGNETIC ROTOR AND SHAFT (#394-1067A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	BEARING, BALL (OPPOSITE DRIVE END) (#30-49090) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	SUPPORT, BALL BEARING (#394-1637) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	SCREW AND LOCKWASHER, SUPPOR5T TO FRAME (#10-25509) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
9	WIRE ASSEMBLY, PRIMARY GROUND LEAD (#84-60466A13) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	SCREW, PRIMARY GROUND (#10) (#10-29182) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	WASHER, PRIMARY GROUND TERMINAL (#12-30267) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	INSULATOR, PRIMARY GROUND TERMINAL (#394-1579) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	WASHER, INSULATING - PRIMARY GROUND SCREW (#12-29099) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	BUSHING , INSULATING - HOUSING FRAME (#23-62769) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	WASHER, PRIMARY GROUND SCREW (#12-26014) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	NUT, LOCK - PRIMARY GROUND SCREW (#11-24656) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
17	NUT, PRIMARY GROUND SCREW (#11-68219) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.32 ~~$2.90~~
18	COIL ASSEMBLY (#394-1128A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	CLIP, COIL - HIGH TENSION (#394-1050) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	LOCKWASHER, COIL TERMINAL (#13-23836) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	NUT, COIL CLIP FASTENING (#394-1131) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	BREAKER ASSEMBLY (#393-1504A11) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	GROMMET, PLASTIC - BREAKER BRACKET (#393-1586) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	STUD, PRIMARY LEAD AND TENSION SPRING (#16-29230) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	NUT, PRIMARY LEAD FASTENING (#11-29236) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	HOLDER AND CAM WICK ASSEMBLY (#394-1106A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	"E" RING, BREAKER TO PIVOT PIN (#53-21058) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	SCREW, BREAKER HOLDER TO HOUSING (#10-20597) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.24 ~~$0.30~~
29	CONDENSER (#394-1130A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$14.32 ~~$17.90~~
30	SCRWE AND LOCKWASHER, CONDENSER FASTENING (#10-25509) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	GASKET, MAGNETO COVER (#27-29166) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	COVER, MAGNETO (#394-1577A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	SCREW, COVER TO FRAME (#10-29418) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
34	TAB WASHER, COVER FASTENING SCREW (#14-38359) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
35	MAGNETO ROTOR ASSEMBLY (#394-2602A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	CLIP, SPRING (#394-1110) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	GASKET, END CAP COVER (#27-25725) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	END CAP COVER ASSEMBLY (#394-1561A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	BRUSH AND SPRING ASSEMBLY (#394-1056A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	SCREW, HIGH TENSION CABLE FASTENING (#10-25517) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
41	SCREW, END CAP COVER TO MAGNETO COVER (#10-29418) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
42	TAB WASHER, COVER FASTENING SCREW (#14-38359) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
43	ELBOW, PLASTIC - MAGNETO COVER VENT (#22-996642) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.08 ~~$2.60~~
