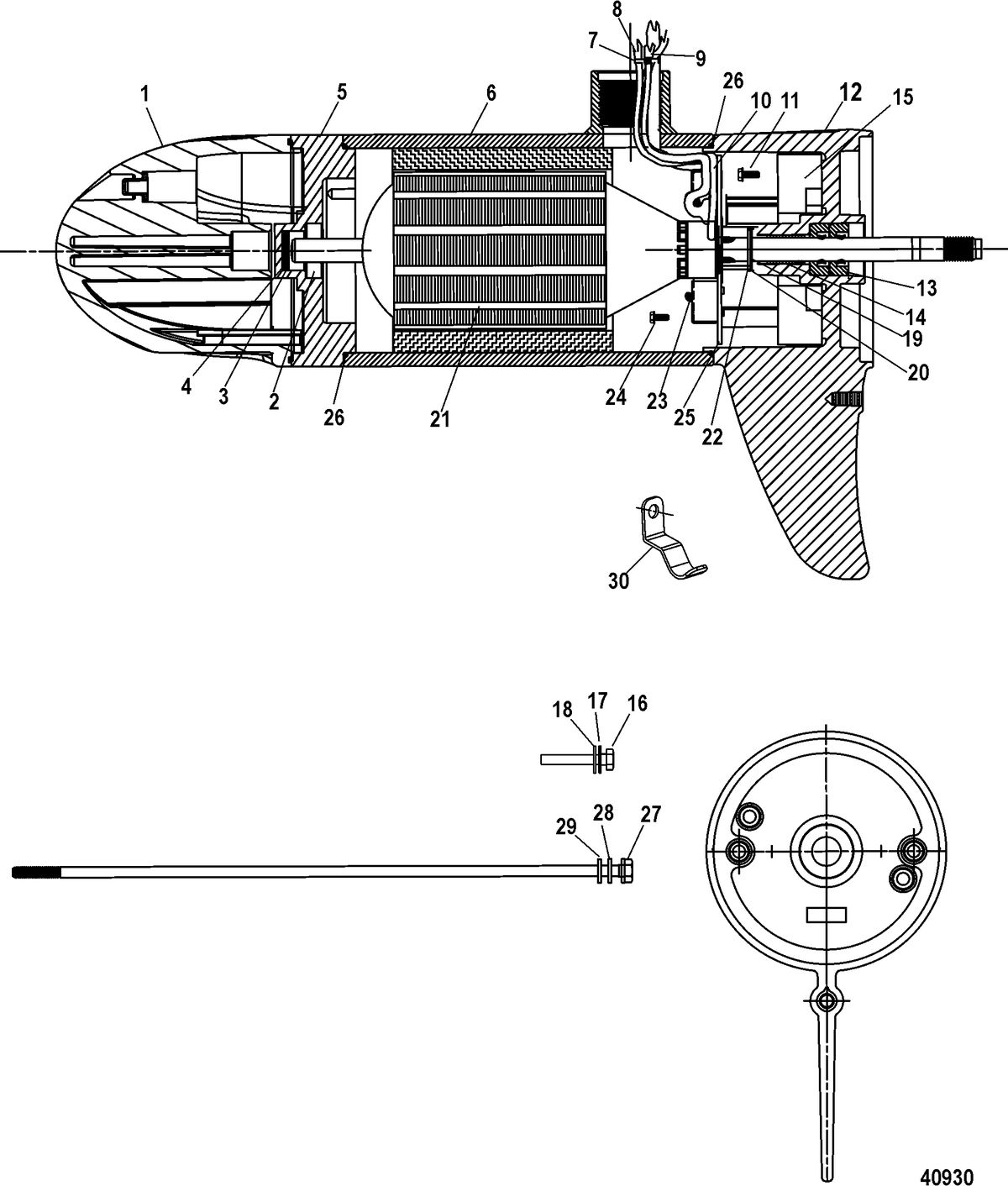

Lower Unit Assembly(70# - Variable) (879317T88)

Ref ID	Description	Price
-	LOWER UNIT ASSEMBLY, Complete (70# - Variable) (#879317T88) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	NOSE CAP ASSEMBLY, With Spacer (#879317T93) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	NOSE CONE ASSEMBLY, Sonar, With Screws, With out Spacer (#8M4002707) Qty Required For Repair: 1 Minimum Order Qty: 1	$127.68 ~~$110.24~~
2	NOT SOLD SEPARATE, BALL BEARING (#NSS) Qty Required For Repair: 1	NLA
3	THRUST DISK, Nylatron (#MR22501T) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: MR22501, 834068E Minimum Order Qty: 5 Supersedes: MR22501, 834068E	$1.76 ~~$2.19~~
4	THRUST DISK, Plated (#MR22401BT) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MR22401B Supersedes: MR22401B	NLA
5	SPACER ASSEMBLY, With Screws, Washers and Bearing (#8M4002708) Qty Required For Repair: 1 Minimum Order Qty: 1	$30.40 ~~$24.99~~
6	HOUSING ASSEMBLY, With Magnets (#879317T94) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	TIE STRAP, (4.00 Inches) (#54-MR22001T) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: 54-MR22001 Qty Required For Repair: 3 Supersedes: 54-MR22001	NLA
8	WIRE ASSEMBLY, (6.330 Feet) Black, With One Ring Terminal (#M899350T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MXC323012 Supersedes: MXC323012	$22.88 ~~$18.69~~
9	WIRE ASSEMBLY, (6.330 Feet) Red, With One Ring Terminal (#M899349T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MXC323022 Supersedes: MXC323022	$22.00 ~~$17.59~~
10	HARNESS ASSEMBLY, Cut As Required (#MM308404T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MM308404, MM308403, MM308402 Supersedes: MM308404, MM308403, MM308402	$17.30 ~~$15.02~~
11	SCREW, (#8-32 x .375) With Patch - Stainless Steel (#MBV13301T) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: MBK13603T, MBK13603 Minimum Order Qty: 5 Supersedes: MBK13603T, MBK13603	$7.92 ~~$6.59~~
12	COMM CAP ASSEMBLY (#8M4002678) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: M899378T, MXC320519 Supersedes: M899378T, MXC320519	$64.24 ~~$52.79~~
13	SEAL, Armature Shaft (#26-MR22301T) Qty Required For Repair: 2 Minimum Order Qty: 2 Supersedes: 26-MR22301 Qty Required For Repair: 2 Minimum Order Qty: 2 Supersedes: 26-MR22301	NLA
14	BEARING, (.750) Sintered Bronze (#23-MR20603T) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: 23-MR20603, 23-MR20601, 23-823310, 834051E, 834431E Minimum Order Qty: 5 Supersedes: 23-MR20603, 23-MR20601, 23-823310, 834051E, 834431E	$8.80 ~~$6.59~~
15	SE MODULE ASSEMBLY, Software Rev 1.08 (#M899371T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MXC096095, MXC096035, MXC096295 Supersedes: MXC096095, MXC096035, MXC096295	$202.35 ~~$189.99~~
16	SCREW, (#10-10 x 1.550) Torx Head (#MXC22901T) Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: MXC22901 Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: MXC22901	$4.40 ~~$3.29~~
17	WASHER, (.204 x .375 x .048) Stainless Steel (#MR21602T) Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: MR21602, 12-MR21601, 12-823321 1 Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: MR21602, 12-MR21601, 12-823321 1	$2.69 ~~$2.23~~
18	SEAL, Static - Teflon Coated (#26-MR22202T) Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: 26-MR22202, 26-MR22201, 25-823315, 834065E, 834424E, 26-MR22201K Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: 26-MR22202, 26-MR22201, 25-823315, 834065E, 834424E, 26-MR22201K	$1.01 ~~$1.24~~
19	THRUST WASHER, (.380 x .660 x .025) (#12-MR22701T) Qty Required For Repair: 1 Minimum Order Qty: 10 Supersedes: 12-MR22701, 12-823319, 834070E, 834428E Minimum Order Qty: 10 Supersedes: 12-MR22701, 12-823319, 834070E, 834428E	$3.20 ~~$4.00~~
20	WASHER, (.378 x .655 x .026) Nylatron (#12-MR22601T) Qty Required For Repair: 1 Minimum Order Qty: 10 Supersedes: 12-MR22601, 12-823320, 834069E, 834429E Minimum Order Qty: 10 Supersedes: 12-MR22601, 12-823320, 834069E, 834429E	$4.40 ~~$3.29~~
21	ARMATURE (#M899401T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MUF320712 Supersedes: MUF320712	NLA
22	E RING (#53-MR21902T) Qty Required For Repair: 1 Minimum Order Qty: 10 Supersedes: 53-MR21902, 53-823307, 834064E, 834430E, 53-823307 1, 53-MR21901, 53-852908E Minimum Order Qty: 10 Supersedes: 53-MR21902, 53-823307, 834064E, 834430E, 53-823307 1, 53-MR21901, 53-852908E	$2.29 ~~$2.19~~
23	SPRING, Brushes (#MR21402T) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: MR21402, 24-823304 1, MR21401 Qty Required For Repair: 2 Supersedes: MR21402, 24-823304 1, MR21401	NLA
24	SCREW, (#8-32 x .375) With Patch - Stainless Steel, Brush Card (#MBV13301T) Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: MBK13603T, MBK13603 Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: MBK13603T, MBK13603	$7.92 ~~$6.59~~
25	BRUSH CARD ASSEMBLY, Less Springs (#M899368T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MXC320145 Supersedes: MXC320145	NLA
26	O-RING, (3.187 x .073) Blue Teflon Coated (#MR21702T) Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: MR21702, 25-MR21701, 25-823302, 834057E, 834437E, 25-MR21701K Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: MR21702, 25-MR21701, 25-823302, 834057E, 834437E, 25-MR21701K	NLA
27	THRU BOLT ASSEMBLY (#10-MR218025T) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-MR218025, 10-MR21802 Qty Required For Repair: 2 Supersedes: 10-MR218025, 10-MR21802	NLA
28	WASHER, (.204 x .375 x .048) Stainless Steel (#MR21602T) Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: MR21602, 12-MR21601, 12-823321 1 Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: MR21602, 12-MR21601, 12-823321 1	$2.69 ~~$2.23~~
29	SEAL, Static - Teflon Coated (#26-MR22202T) Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: 26-MR22202, 26-MR22201, 25-823315, 834065E, 834424E, 26-MR22201K Qty Required For Repair: 2 Minimum Order Qty: 10 Supersedes: 26-MR22202, 26-MR22201, 25-823315, 834065E, 834424E, 26-MR22201K	$1.01 ~~$1.24~~
30	GROUND STRAP (#8M4002419) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	REPAIR KIT, Lower Unit Assembly (#MXC6020) Comment: - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit Qty Required For Repair: 1 Minimum Order Qty: 1 - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit	$36.00 ~~$28.99~~

This assembly is found in these models:

TROLLING MOTOR > MotorGuide Tour Lowerance Digital Series
