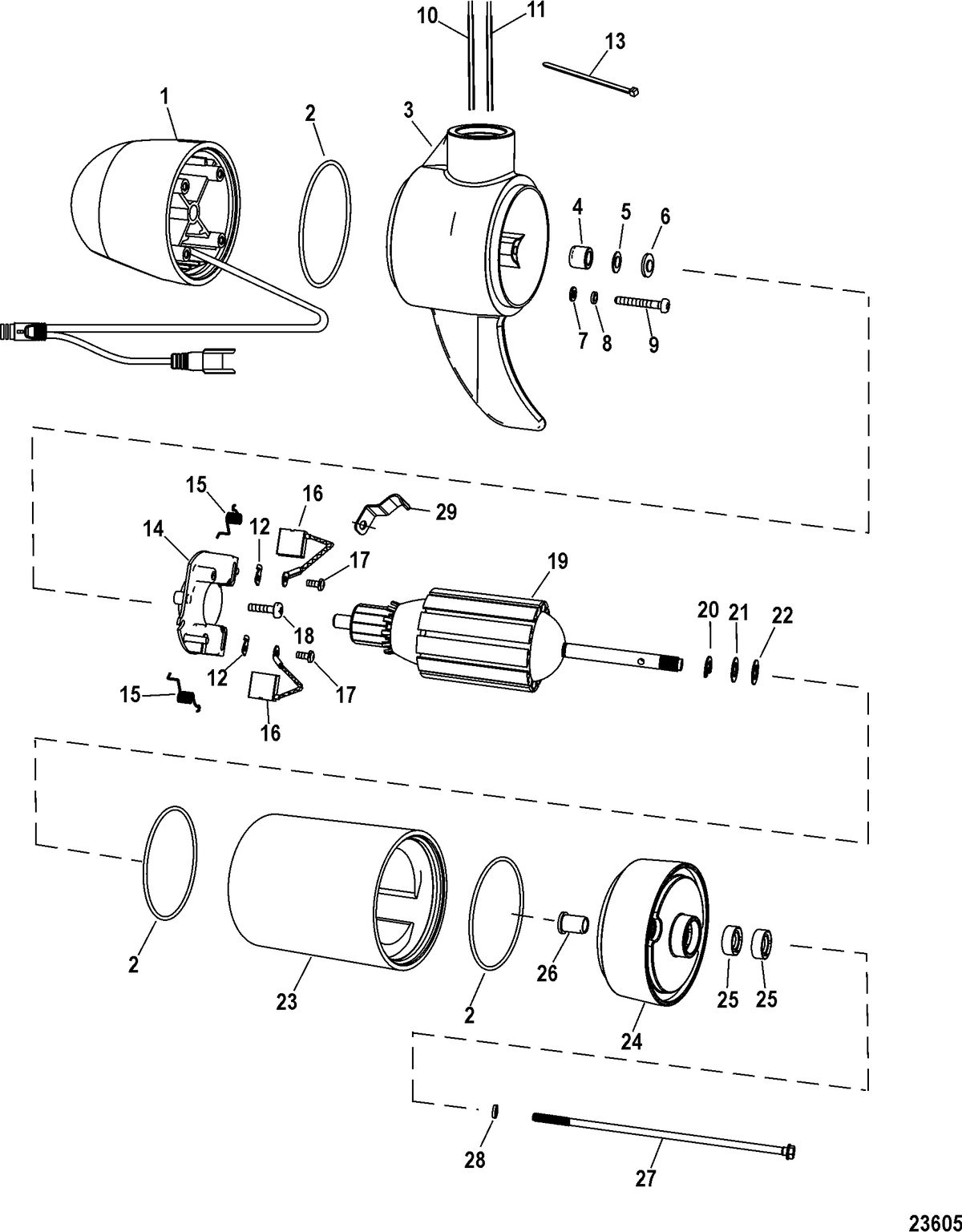

Lower Unit Assembly(55# - Variable) (FW55P Sonar)

Ref ID	Description	Price
-	LOWER UNIT ASSEMBLY, Complete (55# - Variable), 12 Volt FW55P Black Sonar Models - Marked 8M4000224 (#897345T93) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: M899848T Supersedes: M899848T	NLA
1	NOSE CONE ASSEMBLY, Black (#M899787T1) Comment: - Design I - Polycarbonate Material Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: M899787T - Design I - Polycarbonate Material Supersedes: M899787T	$81.93 ~~$70.39~~
1	NOSE CONE ASSEMBLY, Black (#M899787T1) Comment: - Design II - Xenoy Material Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: M899787T - Design II - Xenoy Material Supersedes: M899787T	$81.93 ~~$70.39~~
2	O-RING, (3.237 x .103) Red Teflon Coated (#MBV21701T) Qty Required For Repair: 3 Minimum Order Qty: 3 Qty Required For Repair: 3 Minimum Order Qty: 3	NLA
3	COMM CAP ASSEMBLY, Black (#M889263T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	BEARING, (.500) Sintered Bronze (#23-MR20604T) Qty Required For Repair: 1 Minimum Order Qty: 2 Supersedes: 23-MR20604, 23-MR20602, 834052E Minimum Order Qty: 2 Supersedes: 23-MR20604, 23-MR20602, 834052E	$25.52 ~~$20.89~~
5	THRUST DISK, Plated (#MR22401BT) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MR22401B Supersedes: MR22401B	NLA
6	THRUST DISK, Nylatron (#MR22501T) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: MR22501, 834068E Minimum Order Qty: 5 Supersedes: MR22501, 834068E	$1.76 ~~$2.19~~
7	SEAL, Static - Teflon Coated (#26-MR22202T) Qty Required For Repair: 4 Minimum Order Qty: 10 Supersedes: 26-MR22202, 26-MR22201, 25-823315, 834065E, 834424E, 26-MR22201K Qty Required For Repair: 4 Minimum Order Qty: 10 Supersedes: 26-MR22202, 26-MR22201, 25-823315, 834065E, 834424E, 26-MR22201K	$1.01 ~~$1.24~~
8	WASHER, (.204 x .375 x .048) Stainless Steel (#MR21602T) Qty Required For Repair: 4 Minimum Order Qty: 10 Supersedes: MR21602, 12-MR21601, 12-823321 1 Qty Required For Repair: 4 Minimum Order Qty: 10 Supersedes: MR21602, 12-MR21601, 12-823321 1	$2.69 ~~$2.23~~
9	SCREW, (#10-10 x 1.550) Torx Head (#MXC22901T) Qty Required For Repair: 4 Minimum Order Qty: 5 Supersedes: MXC22901 Qty Required For Repair: 4 Minimum Order Qty: 5 Supersedes: MXC22901	$4.40 ~~$3.29~~
10	WIRE ASSEMBLY, (6.330 Feet) Red (#M899349T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MXC323022 Supersedes: MXC323022	$22.00 ~~$17.59~~
11	WIRE ASSEMBLY, (6.330 Feet) White (#M889265T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	NOT SOLD SEPARATE, #8 Ring Terminal (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
13	TIE STRAP, (4.00 Inches) (#54-MR22001T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 54-MR22001 Supersedes: 54-MR22001	NLA
14	HOLDER, Brushes (#M899733T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: MBV23701T Supersedes: MBV23701T	NLA
15	SPRING, Brush (#MBV21401T) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	NLA
16	BRUSH ASSEMBLY (#M889264T) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$20.24 ~~$16.49~~
17	SCREW, (#8-32 x .375) With Patch - Stainless Steel (#MBV13301T) Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: MBK13603T, MBK13603 Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: MBK13603T, MBK13603	$7.92 ~~$6.59~~
18	SCREW, (#10-32 x .750) Self Tap (#MBV13302T) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
19	ARMATURE (#M889267T) Qty Required For Repair: 1 Minimum Order Qty: 1	$89.68 ~~$76.99~~
20	E RING (#53-MR21902T) Qty Required For Repair: 1 Minimum Order Qty: 10 Supersedes: 53-MR21902, 53-823307, 834064E, 834430E, 53-823307 1, 53-MR21901, 53-852908E Minimum Order Qty: 10 Supersedes: 53-MR21902, 53-823307, 834064E, 834430E, 53-823307 1, 53-MR21901, 53-852908E	$2.29 ~~$2.19~~
21	THRUST WASHER, (.380 x .660 x .025) (#12-MR22701T) Qty Required For Repair: 1 Minimum Order Qty: 10 Supersedes: 12-MR22701, 12-823319, 834070E, 834428E Minimum Order Qty: 10 Supersedes: 12-MR22701, 12-823319, 834070E, 834428E	$3.20 ~~$4.00~~
22	WASHER, (.378 x .655 x .026) Nylatron (#12-MR22601T) Qty Required For Repair: 1 Minimum Order Qty: 10 Supersedes: 12-MR22601, 12-823320, 834069E, 834429E Minimum Order Qty: 10 Supersedes: 12-MR22601, 12-823320, 834069E, 834429E	$4.40 ~~$3.29~~
23	HOUSING ASSEMBLY, Black - With Magnets (#M889260T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	DRIVE CAP ASSEMBLY, Black (#M889261T) Qty Required For Repair: 1 Minimum Order Qty: 1	$38.40 ~~$30.99~~
25	SEAL, Armature Shaft (#26-MR22301T) Qty Required For Repair: 2 Minimum Order Qty: 2 Supersedes: 26-MR22301 Qty Required For Repair: 2 Minimum Order Qty: 2 Supersedes: 26-MR22301	NLA
26	BEARING, Rear (#MR20605T) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
27	THRU BOLT ASSEMBLY (#MV218015T) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
28	SEAL, Static (#MV22201T) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$9.68 ~~$7.69~~
29	GROUND STRAP (#8M4002419) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	REPAIR KIT, Lower Unit Assembly (#8M4000142) Comment: - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit Qty Required For Repair: 1 Minimum Order Qty: 1 - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit	NLA

This assembly is found in these models:

TROLLING MOTOR > MotorGuide Wireless Series
