Mercury Marine Parts Catalog

Find the Parts You're Looking For

MERCRUISER - 8.1L INBOARD (Base) - Lifting Brackets and Wiring Harness

	Ref ID	Description	Price
	1	BRACKET, Front Lifting Eye (#862346T) Qty Required For Repair: 1 Minimum Order Qty: 1	$58.66 ~~$65.50~~
	2	SCREW, (M10 x 20) Hex Flange - Stainless Steel (#10-4010820) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$3.05 ~~$3.30~~
	3	HARNESS ASSEMBLY, Wiring (#84-865457A02) Comment: (Mechanical Throttle and Shift) Qty Required For Repair: 1 Minimum Order Qty: 1 (Mechanical Throttle and Shift)	$886.21 ~~$789.07~~
	3	HARNESS ASSEMBLY, Wiring (#84-865458A01) Comment: (Digital Throttle and Shift) Qty Required For Repair: 1 Minimum Order Qty: 1 (Digital Throttle and Shift)	$588.53 ~~$691.00~~
	4	PLATE KIT, Wire Harness Mount (#26079A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.04 ~~$14.10~~
	5	SCREW, (#8-16 x .875) (#10-15001) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$0.91 ~~$1.10~~
	6	BRACKET, Lifting Eye, Rear (#862347T) Qty Required For Repair: 1 Minimum Order Qty: 1	$96.64 ~~$97.25~~
	7	SCREW, (M10 x 20) Hex Flange - Stainless Steel (#10-4010820) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$3.05 ~~$3.30~~
	8	ALARM KIT (#816492A15) Qty Required For Repair: 1 Minimum Order Qty: 1	$76.73 ~~$67.17~~
	9	CAP, Weather Proof (10 Pin Harness Plug) (#8M3000055) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 891735 Supersedes: 891735	$15.92 ~~$17.20~~
	10	HARNESS ASSEMBLY, Adaptor (#84-884515A3) Comment: (CAN Line) Qty Required For Repair: 1 Minimum Order Qty: 1 (CAN Line)	$70.70 ~~$66.92~~
	11	HARNESS ASSEMBLY, Neutral Safety Switch (#84-861940T1) Qty Required For Repair: 1 Minimum Order Qty: 1	$24.17 ~~$22.58~~
	12	HARNESS ASSEMBLY, Transmission Temperature (#84-862021T1) Qty Required For Repair: 1 Minimum Order Qty: 1	$20.21 ~~$18.83~~
	13	HARNESS ASSEMBLY, Clean Power (#84-8M0113732) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 84-888416T04, 84-888416T03, 84-888416A 1 Supersedes: 84-888416T04, 84-888416T03, 84-888416A 1	$80.54 ~~$77.01~~
	14	FUSE, Tan - 5 Ampere (#862646) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.64 ~~$2.80~~
	15	COVER, Fuse (#828054) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.80 ~~$4.10~~
	NS	HARNESS ASSEMBLY, In Gear Indicator (#84-865145A01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

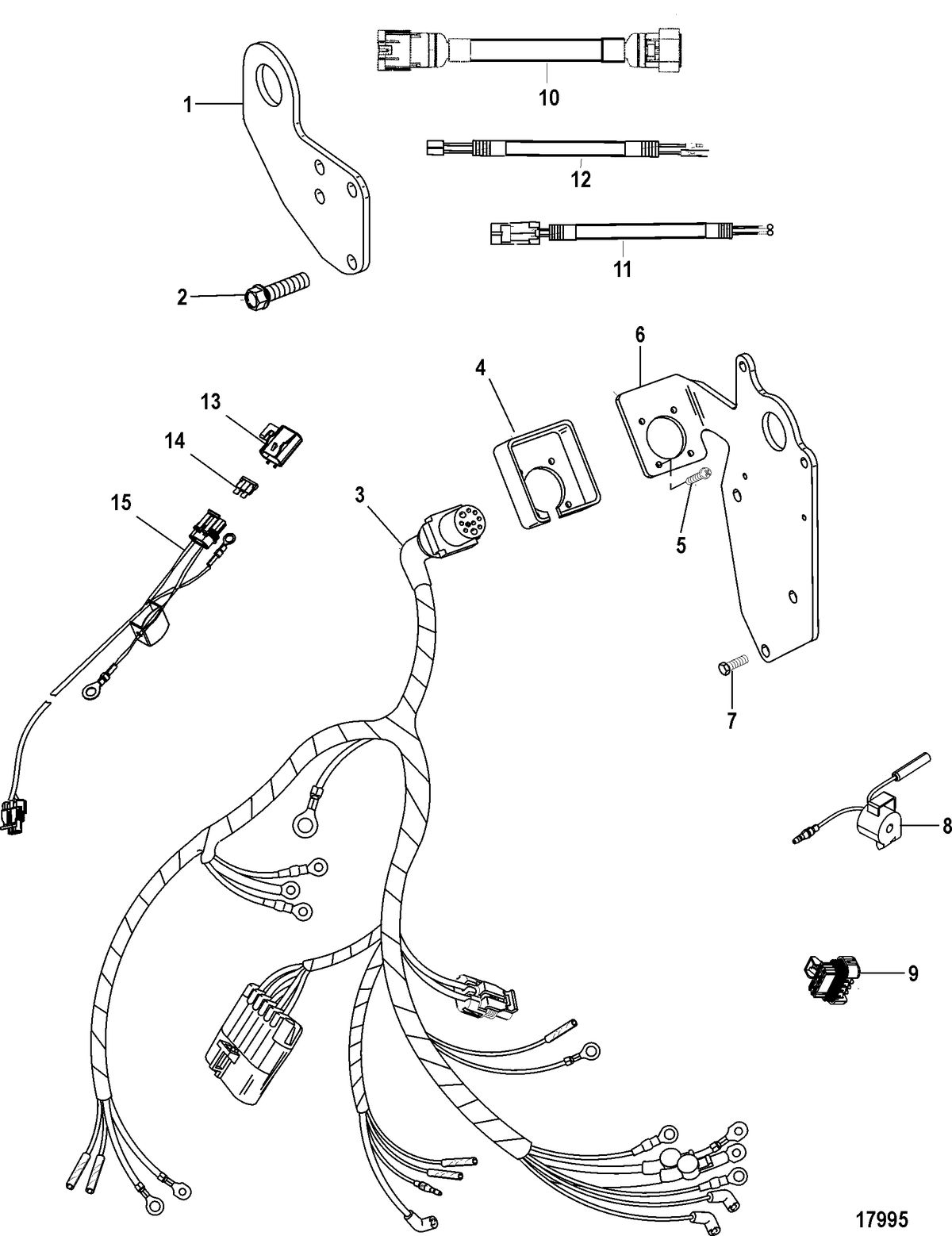

To zoom in, move your mouse over the diagram.

MERCRUISER 8.1L INBOARD Lifting Brackets and Wiring Harness

This assembly is found in these models:
