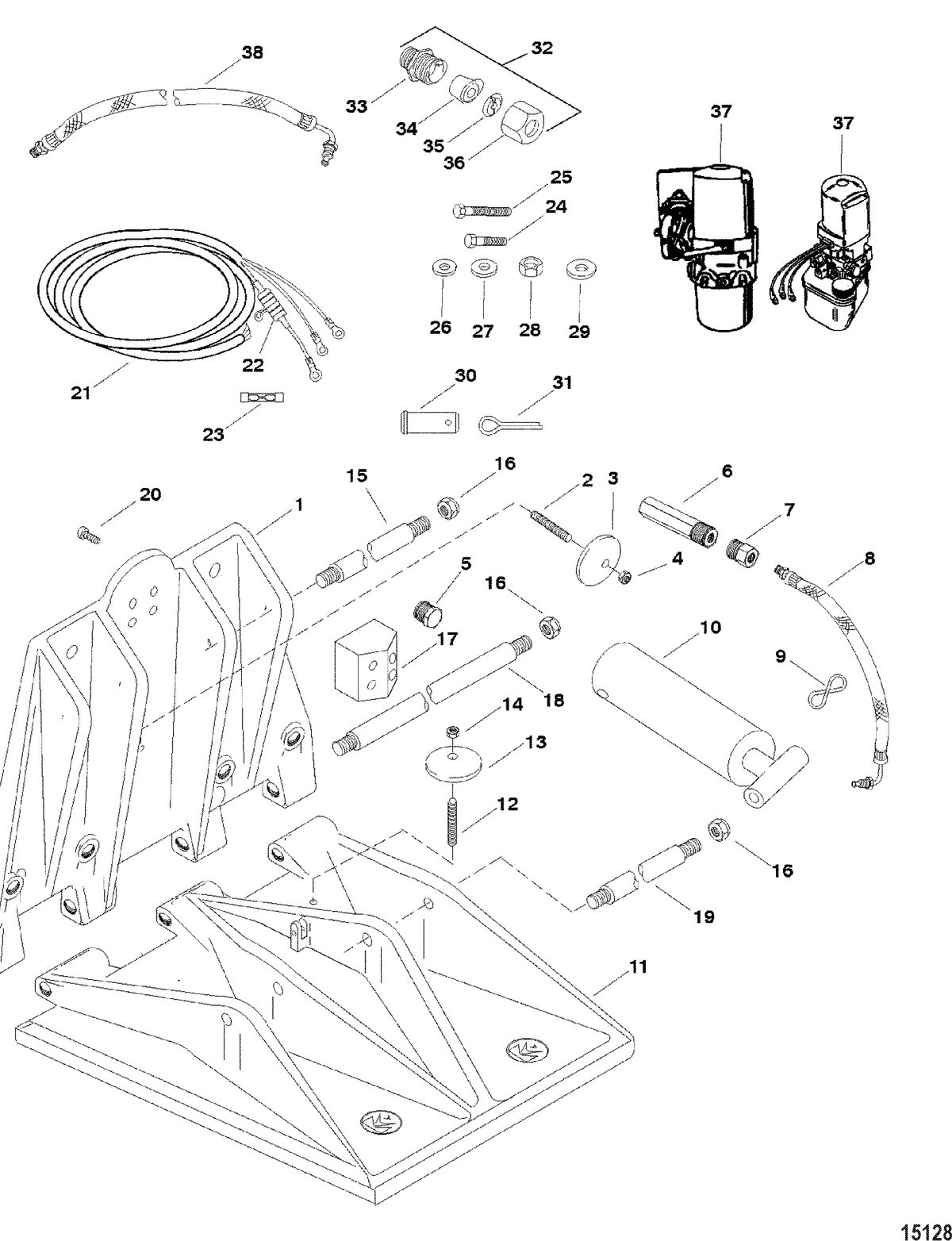

K Plane, 450S(843868A1 / 846244A2)

Ref ID	Description	Price
-	K PLANE ASSEMBLY (#846245A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
1	PLATE ASSEMBLY, Upper (#843819A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	STUD, (#10-32 x .930) (#16-8M0034461) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 16-21085 Supersedes: 16-21085	$19.44 ~~$20.25~~
3	ANODE (#847332) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.24 ~~$16.29~~
4	NUT, (#10-32) (#11-8267096) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.88 ~~$3.60~~
5	PLUG, (.500-14), Pipe (#22-32804) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$12.72 ~~$15.90~~
6	FITTING (#22-843279) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$69.73 ~~$62.28~~
7	FITTING (#22-843278) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$22.08 ~~$19.72~~
8	HOSE, Hydraulic (13.750 Inches) (#32-846049) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$68.91 ~~$61.54~~
9	O-RING (#25-841453) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	CYLINDER ASSEMBLY, Hydraulic Trim (#8M0192218) Qty Required For Repair: 2 Qty Required For Repair: 2	$818.89 ~~$847.96~~
11	PLATE ASSEMBLY, Lower (#841228A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	STUD, (#10-32 x .930) (#16-8M0034461) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 16-21085 Qty Required For Repair: 2 Supersedes: 16-21085	$19.44 ~~$20.25~~
13	ANODE (#847332) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$18.24 ~~$16.29~~
14	NUT, (#10-32) (#11-8267096) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.88 ~~$3.60~~
15	PIN, Upper Trim Cylinder Mount (#847196) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 841070 Qty Required For Repair: 2 Supersedes: 841070	$69.41 ~~$61.99~~
16	NUT, (.437-20) (#11-8M0143423) Qty Required For Repair: 10 Qty Required For Repair: 10	$7.28 ~~$9.10~~
17	CONNECTOR (#843865T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 843865 Supersedes: 843865	NLA
18	PIN, Hinge - Upper And Lower Plate (#847275) Qty Required For Repair: 1 Minimum Order Qty: 1	$100.72 ~~$94.68~~
19	PIN, Lower Trim Cylinder Mount (#847197) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$68.61 ~~$61.28~~
20	SCREW, (.250-20 x .750) Stainless Steel (#10-92160) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$2.16 ~~$2.70~~
21	HARNESS ASSEMBLY, Wiring (#84-846160A2) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$114.00 ~~$110.00~~
22	HOLDER ASSEMBLY, Fuse - With Clips (#846158) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	FUSE, 10 Ampere (#89-846159) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 88-825395 Supersedes: 88-825395	$1.68 ~~$1.50~~
24	SCREW, (.500-13 x 3.750) Mounting (#10-843749) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
25	SCREW, (.500-13 x 4.00) Mounting (#10-843750) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
26	WASHER, (.530 x 1.060 x .110) Mounting (#12-840721) Qty Required For Repair: 12 Minimum Order Qty: 1 Qty Required For Repair: 12	NLA
27	WASHER, (.530 x 1.750 x .100) Mounting (#12-845131) Qty Required For Repair: 12 Minimum Order Qty: 1 Qty Required For Repair: 12	NLA
28	NUT, (.500-13) (#11-844766) Qty Required For Repair: 12 Minimum Order Qty: 1 Qty Required For Repair: 12	$13.94 ~~$12.44~~
29	WASHER, (.340 x .750 x .050) Mounting (#12-841284) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
30	PIN, Clevis Mounting (#17-841282) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
31	COTTER PIN (#18-841283) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
32	GRIP ASSEMBLY, Cable - Stainless Steel (#846991A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$223.15 ~~$224.56~~
33	BODY, Cable Grip (#846989) Qty Required For Repair: 1 Minimum Order Qty: 1	$154.62 ~~$155.60~~
34	BUSHING, Rubber (#23-845970) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.13 ~~$9.05~~
35	RING, Gripper (#53-845971) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.58 ~~$6.77~~
36	CAP, Cable Grip (#846991A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$223.15 ~~$224.56~~
37	PUMP/MOTOR ASSEMBLY, Trim (#8M0083288) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 849670A05, 846183A 2 Qty Required For Repair: 2 Supersedes: 849670A05, 846183A 2	$1,251.88 ~~$1,325.14~~
37	PUMP/MOTOR ASSEMBLY, Trim, Plastic (#8M0083288) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 849670A05, 846183A 2 Qty Required For Repair: 2 Supersedes: 849670A05, 846183A 2	$1,251.88 ~~$1,325.14~~
37	PUMP/MOTOR ASSEMBLY, Trim, Plastic (#8M0083288) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 849670A05, 846183A 2 Qty Required For Repair: 2 Supersedes: 849670A05, 846183A 2	$1,251.88 ~~$1,325.14~~
38	K-Planes Hose Kit (#32-843556A1) Qty Required For Repair: OPT Minimum Order Qty: 1 Qty Required For Repair: OPT	$299.83 ~~$301.73~~
38	K-Planes Hose Kit (#32-843675A1) Qty Required For Repair: OPT Minimum Order Qty: 1 Qty Required For Repair: OPT	$373.04 ~~$380.77~~
38	HOSE ASSEMBLY, Hydraulic (30.00 Inches) (#32-845976) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$80.27 ~~$75.47~~
38	HOSE, Hydraulic (60.00 Inches Bulk) (#32-845977) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$124.50 ~~$117.05~~
38	HOSE, Hydraulic (96.00 Inches Bulk) (#32-846051) Qty Required For Repair: OPT Minimum Order Qty: 1 Qty Required For Repair: OPT	$152.39 ~~$153.36~~
38	HOSE, Hydraulic (115.00 Inches Bulk) (#32-848789) Qty Required For Repair: OPT Minimum Order Qty: 1 Qty Required For Repair: OPT	$192.40 ~~$193.62~~
