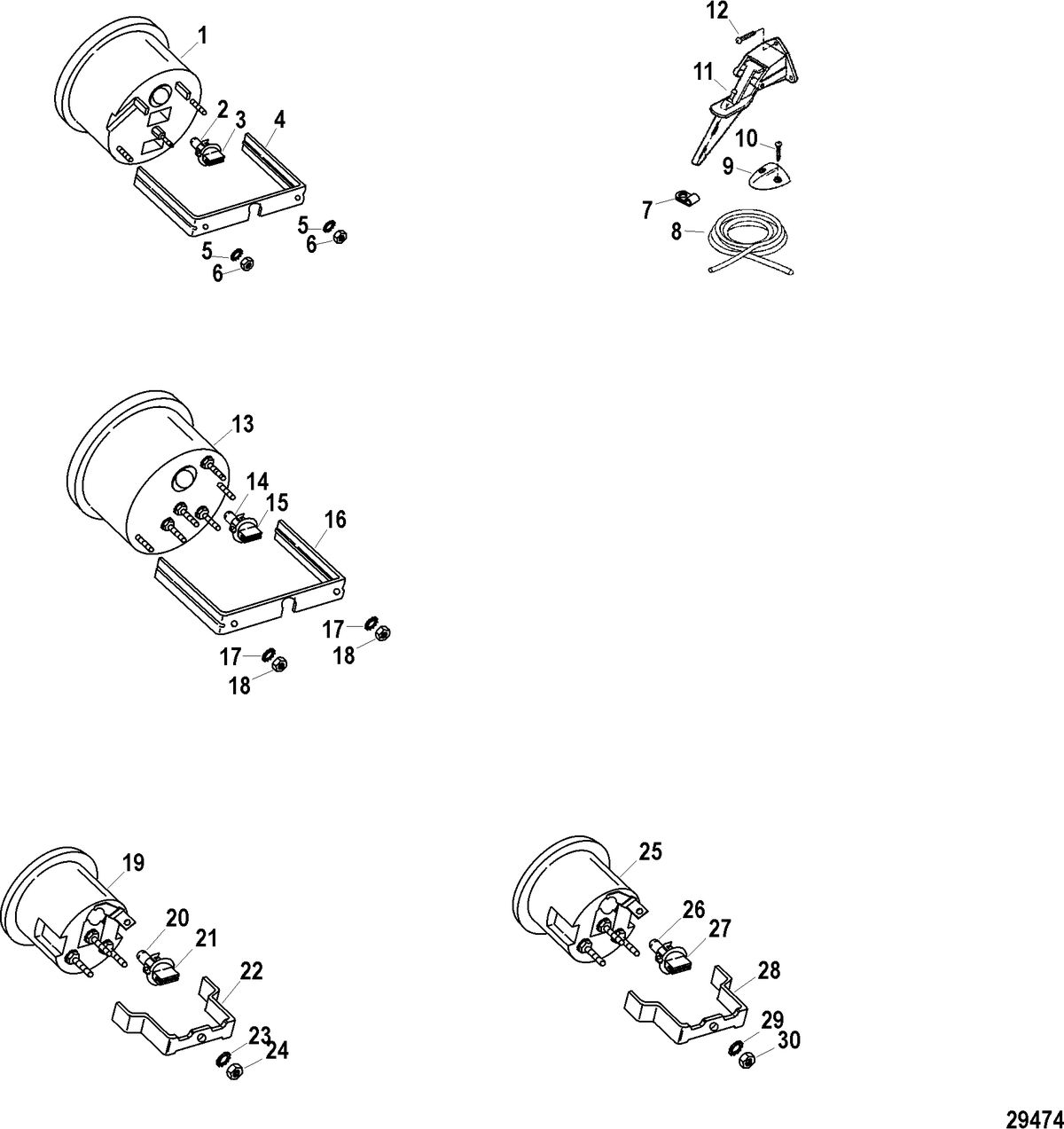

Instrument Gauges And Components

Ref ID	Description	Price
1	SPEEDOMETER, (10-45 MPH) White Face, Black Graduation, White Bezel (#79-895285A21) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 79-859676A11 Supersedes: 79-859676A11	NLA
2	LIGHT BULB, Wedge Base (14V - .19W) (#88-72729) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.56 ~~$5.70~~
3	SOCKET, Light Bulb (#88-79888) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.60 ~~$2.00~~
4	BRACKET, Gauge Mount (#827872) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 825365 Supersedes: 825365	NLA
5	LOCKWASHER, Star (#8) (#13-825361) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	NUT, (#8-32) Brass (#11-26419) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.28 ~~$1.60~~
7	CLAMP, Tubing (#54-26550) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	$3.68 ~~$4.60~~
8	TUBING, (25.00 Feet Bulk), Cut As Required (#32-5495025) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	RETAINER, Tubing (#76446) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.68 ~~$4.60~~
10	ORDER PART LOCAL, Screw (M4.2 x 15) Self Tap Pan Head - Stainless Steel (#ORDLOCAL) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
11	PITOT TUBE ASSEMBLY (#77409A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$55.81 ~~$50.39~~
12	ORDER PART LOCAL, Screw (M4.2 x 15) Self Tap Pan Head - Stainless Steel (#ORDLOCAL) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
13	TACHOMETER, (0-6000 RPM) White Face, Black Graduation, White Bezel (#79-895283A23) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 79-859674A11 Supersedes: 79-859674A11	NLA
14	LIGHT BULB, Wedge Base (14V - .19W) (#88-72729) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.56 ~~$5.70~~
15	SOCKET, Light Bulb (#88-79888) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.60 ~~$2.00~~
16	BRACKET, Gauge Mount (#827872) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 825365 Supersedes: 825365	NLA
17	LOCKWASHER, Star (#8) (#13-825361) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
18	NUT, (#8-32) Brass (#11-26419) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$1.28 ~~$1.60~~
19	GAUGE, Fuel Level, White Face, Black Graduation, White Bezel (#79-895291A21) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 79-859692A11 Supersedes: 79-859692A11	NLA
20	LIGHT BULB, Wedge Base (14V - .19W) (#88-72729) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.56 ~~$5.70~~
21	SOCKET, Light Bulb (#88-79888) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.60 ~~$2.00~~
22	BRACKET, Gauge Mount (#825364) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	LOCKWASHER, Star (#8) (#13-825361) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
24	NUT, (#8-32) Brass (#11-26419) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.28 ~~$1.60~~
25	GAUGE, Voltage, White Face, Black Graduation, White Bezel (#79-895286A21) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 79-859683A11 Supersedes: 79-859683A11	NLA
26	LIGHT BULB, Wedge Base (14V - .19W) (#88-72729) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.56 ~~$5.70~~
27	SOCKET, Light Bulb (#88-79888) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.60 ~~$2.00~~
28	BRACKET, Gauge Mount (#825364) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	LOCKWASHER, Star (#8) (#13-825361) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
30	NUT, (#8-32) Brass (#11-26419) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.28 ~~$1.60~~

This assembly is found in these models:

INFLATABLES > Mercury Amanzi 350 Hypalon RIB 2007-2010
