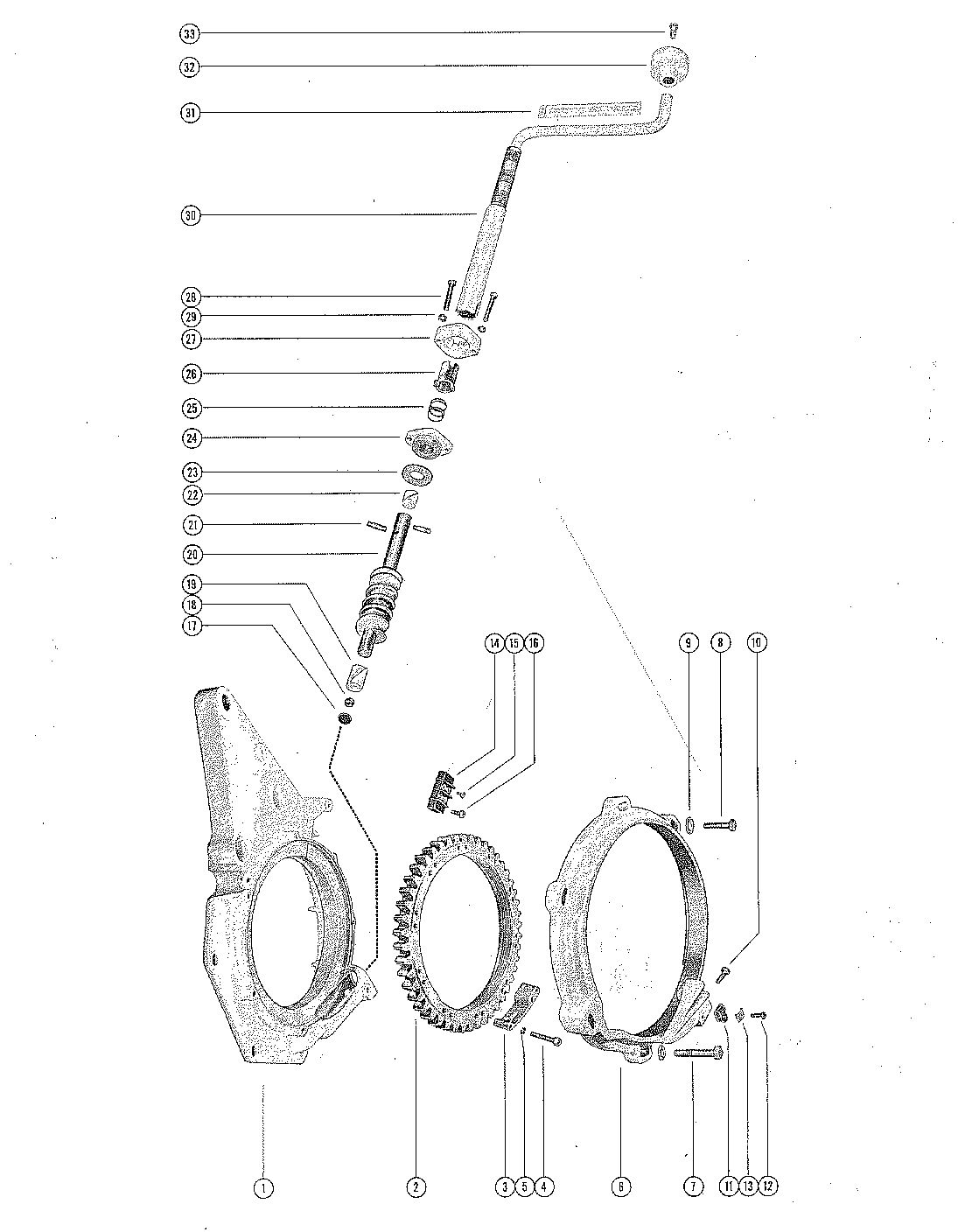

INNER TRANSOM PLATE, CLAMP NUT AND CRANK ASSEMBLY

Ref ID	Description	Price
1	PLATE, TRANSOM-INNER (#34193) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	CLAMP NUT, STEERING LEVER HOUSING (#32239) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	CATCH, CLAMP NUT (#33639) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	SCREW, CATCH TO CLAMP NUT (#10-32759) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
5	LOCKWASHER, CATCH TO CLAMP NUT SCREW (#13-21547) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
6	COVER, CLAMP NUT-INNER TRANSOM PLATE (#36287) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (2") (#10-815549) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 10-25503, 10-77065 Supersedes: 10-25503, 10-77065	$4.16 ~~$5.20~~
8	SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (1 3/8") (#10-31984) Qty Required For Repair: 5 Minimum Order Qty: 5 Qty Required For Repair: 5 Minimum Order Qty: 5	$1.36 ~~$1.70~~
9	WASHER, CLAMP NUT COVER SCREW (#12-26168) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$1.28 ~~$1.60~~
10	SCREW, STEERING LEVER HOUSING STOP-CLAMP NUT COVER (#10-31983) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	CLIP, TILT STOP SWITCH LEADS TO CLAMP NUT COVER (#54-24836) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.20 ~~$4.00~~
12	SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER (#10-25764) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.88 ~~$3.60~~
13	"D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW (#8M0084613) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 69205 Supersedes: 69205	$0.88 ~~$1.10~~
14	TERMINAL BLOCK, INNER TRANSOM PLATE (NOT AS SHOWN) (#30212) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK (#10-62568) Qty Required For Repair: 2 Minimum Order Qty: 4 Qty Required For Repair: 2 Minimum Order Qty: 4	$0.88 ~~$1.10~~
16	SCREW, TERMINAL BLOCK TO INNER TRANSOM PLATE (#10-48409) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$1.92 ~~$2.40~~
17	DISC, THRUST-WORM GEAR (LOWER) (#32788) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	BALL, WORM GEAR (LOWER) (#22834) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	BUSHING, NYLON-WORM GEAR (LOWER) (#23-31757) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.08 ~~$12.60~~
20	GEAR, WORM-INNER TRANSOM PLATE (#43-31605) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	PIN, WORM GEAR-SLEEVE AND CRANK LOCKING (#17-31728) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
22	BUSHING, NYLON-WORM GEAR (UPPER) (#23-31857) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	WASHER, THRUST-WORM GEAR TO RETAINING COVER (UPPER) (#12-31727) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	COVER, RETAINING-WORM GEAR TO INNER TRANSOM PLATE (#31631) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	SPRING, COMPRESSION-WORM GEAR LOCKING SLEEVE (#24-31729) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	SLEEVE, WORM GEAR LOCKING (#23-31726) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	LOCK, SPLINED-WORM GEAR LOCKING SLEEVE (#31730) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	SCREW, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE (#10-70602) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
29	LOCKWASHER, WORM GEAR COVER AND LOCK SCREW (#13-26992) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.96 ~~$1.20~~
30	CRANK ASSEMBLY (10") (#33923A10) Qty Required For Repair: OPT. Minimum Order Qty: 1 Qty Required For Repair: OPT.	NLA
30	CRANK ASSEMBLY (16") (#33923A16) Qty Required For Repair: OPT. Minimum Order Qty: 1 Qty Required For Repair: OPT.	NLA
30	CRANK ASSEMBLY (22") (#33923A22) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	CRANK ASSEMBLY (28") (#33923A28) Qty Required For Repair: OPT. Minimum Order Qty: 1 Qty Required For Repair: OPT.	NLA
30	CRANK ASSEMBLY (34") (#33923A34) Qty Required For Repair: OPT. Minimum Order Qty: 1 Qty Required For Repair: OPT.	NLA
31	LABEL, DIRECTIONAL AND INSTRUCTIONAL-CRANK (#37-32187) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	KNOB, CRANK (#31842) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	SCREW, KNOB TO CRANK (#10-21356) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MERCRUISER > II 1964-1967
