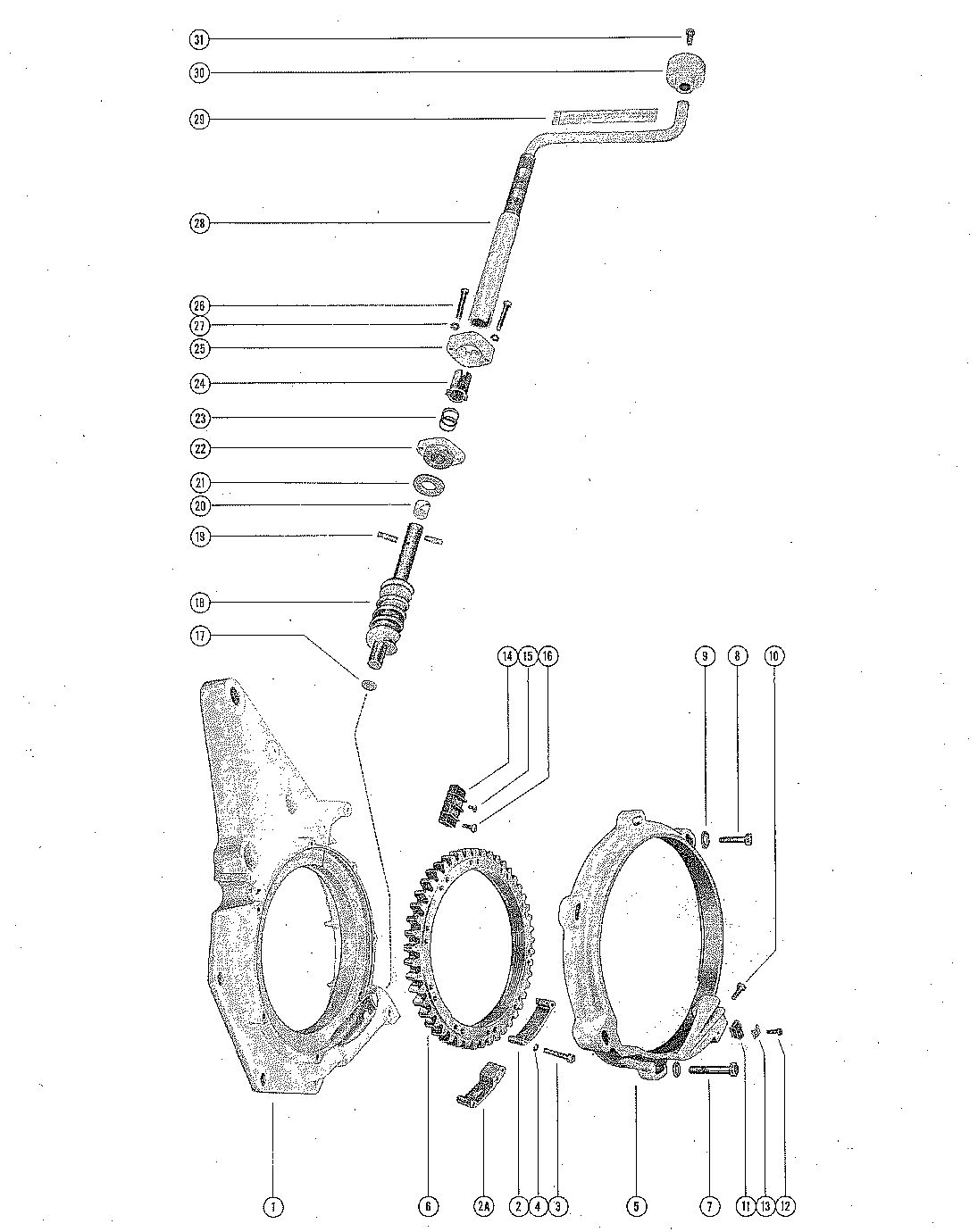

MERCRUISER - II 1962-1963 - INNER TRANSOM PLATE, CLAMP NUT AND CRANK ASSEMBLY

Ref ID	Description	Price
1	PALTE, TRANSOM - INNER (#34193) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
2	CATCH, CLAMP NUT (PART OF B-32416A1 LATCH ASSEMBLY) (#33639) Qty Required For Repair: 1,1,1, Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,	NLA
2A	CATH, CLAMP NUT ( PART OF B-33638A1 LATCH ASSEMBLY) (#33639) Qty Required For Repair: ,,,1 Minimum Order Qty: 1	NLA
3	SCREW, CATCH TO CLAMP NUT (#10-21365) Qty Required For Repair: 2,2,2, Minimum Order Qty: 1 Qty Required For Repair: 2,2,2,	NLA
3	SCREW, CATCH TO CLAMP NUT (#10-32759) Qty Required For Repair: ,,,3 Minimum Order Qty: 1	NLA
4	LOCKWASHER, CATCH TO CLAMP NUT SCREW (#13-21547) Qty Required For Repair: 2,2,2, Minimum Order Qty: 1 Qty Required For Repair: 2,2,2,	NLA
4	LOCKWASHER, CATCH TO CLAMP NUT SCREW (#13-21547) Qty Required For Repair: ,,,3 Minimum Order Qty: 1	NLA
-	COVER ASSEMBLY, CLAMP NUT - INNER TRANSOM PLATE (#32300A1) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
5	COVER, CLAMP NUT - INNER TRANSOM PLATE (#32300) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
6	NUT,CLAMP -STEERING LEVER HOUSING TO INNER TRANSOM PLATE (#32761) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
7	SCREW, CLAMP NUT COVER TO INNER TRANSMOM PLATE (2") (#10-815549) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Supersedes: 10-25503, 10-77065 Qty Required For Repair: 1,1,1,1 Supersedes: 10-25503, 10-77065	$4.16 ~~$5.20~~
8	SCREW, CLAMP NUT COVER TO INNER TRANSOM PLATE (1 3/8") (#10-31984) Qty Required For Repair: 5,5,5,5 Minimum Order Qty: 5 Qty Required For Repair: 5,5,5,5 Minimum Order Qty: 5	$1.36 ~~$1.70~~
9	WASHER, CLAMP NUT COVER TO INNER TRANSOM PLATE SCREW (#12-26168) Qty Required For Repair: 6,6,6,6 Minimum Order Qty: 1 Qty Required For Repair: 6,6,6,6	$1.28 ~~$1.60~~
10	SCREW, STEERING LEVEL HOUSING STOP - CLAMP NUT COVER (#10-31983) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
11	CLIP, TILT STOP SWITCH LEADS TO CLAMP NUT COVER (#54-24836) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 5 Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 5	$3.20 ~~$4.00~~
12	SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER (#10-32031) Comment: (10-32 SELF TAPPING THREAD) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 (10-32 SELF TAPPING THREAD) Qty Required For Repair: 1,1,1,1	NLA
12	SCREW, TILT STOP SWITCH LEADS CLIP TO CLAMP NUT COVER (#10-25764) Comment: (10-32 STANDARD THREAD) Qty Required For Repair: ,,,1 Minimum Order Qty: 5 (10-32 STANDARD THREAD) Minimum Order Qty: 5	$2.88 ~~$3.60~~
13	"D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW (#8M0084613) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Supersedes: 69205 Qty Required For Repair: 1,1,1,1 Supersedes: 69205	$0.88 ~~$1.10~~
14	TERMINAL BLOCK, INNER TRANSOM PLATE (#32169) Qty Required For Repair: 1,1,, Minimum Order Qty: 1 Qty Required For Repair: 1,1,,	NLA
14	TERMINAL BLOCK, INNER TRANSOM PLATE (NOT SHOWN) (#30212) Qty Required For Repair: ,,1,1 Minimum Order Qty: 1	NLA
15	SCREW, TILT STOP SWITCH TO TERMINAL BLOCK (#10-28739) Qty Required For Repair: 4,4,, Minimum Order Qty: 1 Qty Required For Repair: 4,4,,	NLA
15	SCREW, TILT STOP SWITCH TO TERMINAL BLOCK (#10-62568) Qty Required For Repair: ,,2,2 Minimum Order Qty: 4 Minimum Order Qty: 4	$0.88 ~~$1.10~~
16	SCREW, TERMINAL BLOCK TO INNER TRANSOM PLATE (#10-48409) Qty Required For Repair: 2,2,2,2 Minimum Order Qty: 2 Qty Required For Repair: 2,2,2,2 Minimum Order Qty: 2	$1.92 ~~$2.40~~
17	WASHER, THRUST - WORM GEAR (LOWER) (#12-31855) Qty Required For Repair: 1,1,, Minimum Order Qty: 1 Qty Required For Repair: 1,1,,	NLA
18	GEAR, WORM - INNER TRANSOM PLATE (#43-31605) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
19	PIN, WORM GEAR - SLEEVE AND CRANK LOCKING (#17-31728) Qty Required For Repair: 2,2,2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2,2,2	NLA
20	BUSHING, NYLON - WORM GEAR (UPPER) (#23-31857) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
21	WASHER, THRUST - WORM GEAR TO RETAINING COVER (UPPER) (#12-31727) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
22	COVER, RETAINING - WORM GEAR TO INNER TRANSOM PLATE (#31631) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
23	SPRING, COMPRESSION - WORM GEAR LOCKING SLEEVE (#24-31729) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
24	SLEEVE, WORM GEAR LOCKING (#23-31726) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
25	LOCK, SPLINED - WORM GEAR LOCKING SLEEVE (#31730) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
26	SCREW, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE (#10-70602) Qty Required For Repair: 2,2,2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2,2,2 Minimum Order Qty: 5	NLA
27	LOCKWASHER, WORM GEAR COVER AND LOCK TO INNER TRANSOM PLATE (#13-26992) Qty Required For Repair: 2,2,2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2,2,2 Minimum Order Qty: 5	$0.96 ~~$1.20~~
28	CRANK ASSEMBLY (10") (#33923A10) Qty Required For Repair: OPT.,OPT., Minimum Order Qty: 1 Qty Required For Repair: OPT.,OPT.,	NLA
28	CRANK ASSEMBLY (16") (#33923A16) Qty Required For Repair: OPT.,OPT., Minimum Order Qty: 1 Qty Required For Repair: OPT.,OPT.,	NLA
28	CRANK ASSEMBLY (22") (#33923A22) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
28	CRANK ASSEMBLY (#33923A28) Qty Required For Repair: OPT.,OPT., Minimum Order Qty: 1 Qty Required For Repair: OPT.,OPT.,	NLA
28	CRANK ASSEMBLY (34") (#33923A34) Qty Required For Repair: OPT.,OPT., Minimum Order Qty: 1 Qty Required For Repair: OPT.,OPT.,	NLA
29	LABEL, DIRECTIONAL AND INSTRUCTIONAL - CRANK (#37-32187) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
30	KNOB, CRANK (#31842) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA
31	SCREW, KNOB TO CRANK (#10-21356) Qty Required For Repair: 1,1,1,1 Minimum Order Qty: 1 Qty Required For Repair: 1,1,1,1	NLA

MERCRUISER II STERN DRIVE INNER TRANSOM PLATE, CLAMP NUT AND CRANK ASSEMBLY

This assembly is found in these models:

MERCRUISER > II 1962-1963
