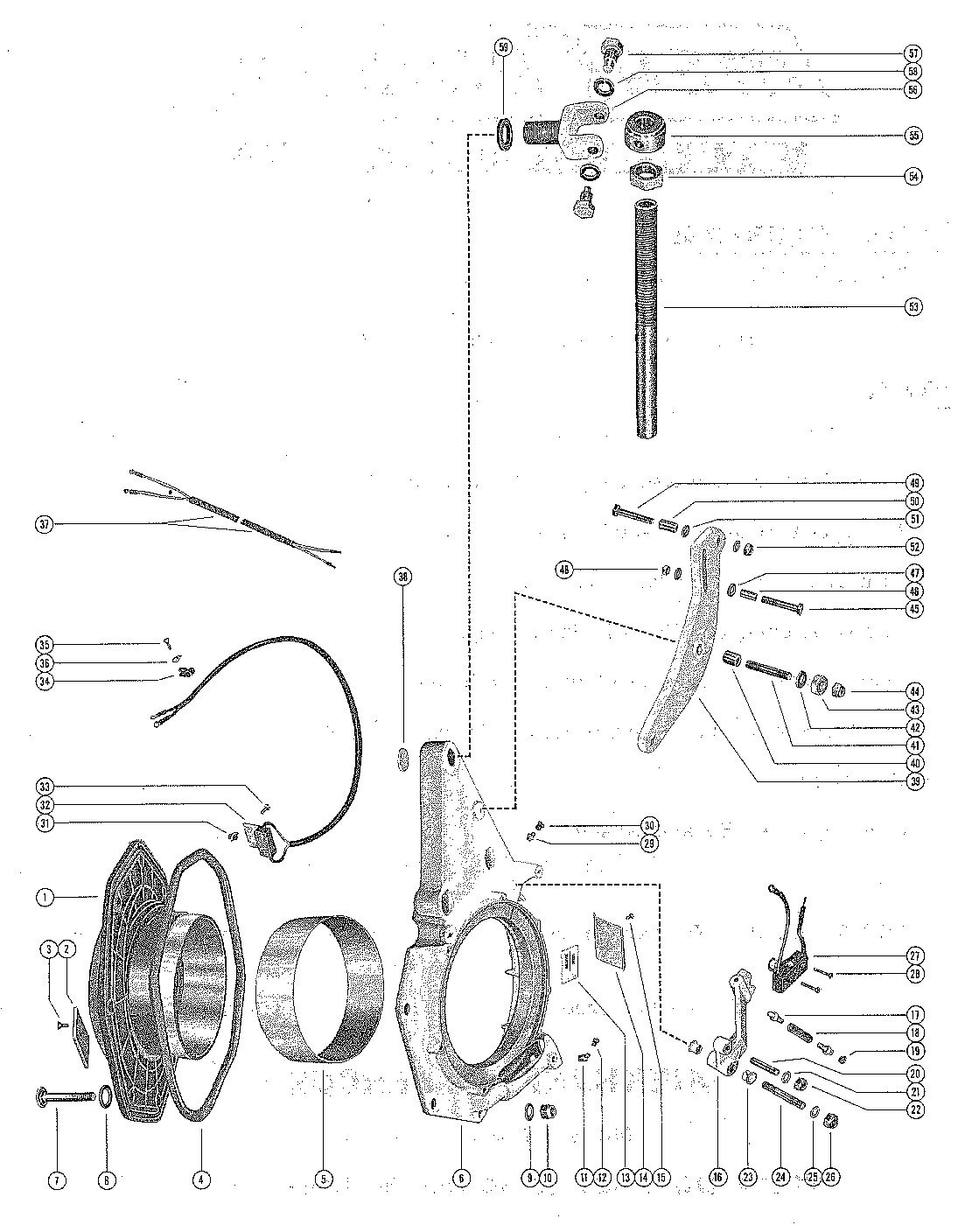

INNER AND OUTER TRANSOM PLATE AND SHIFT ARM

Ref ID	Description	Price
1	PLATE ASSEMBLE, TRANSOM-OUTER (#32276A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	PLATE ASSEMBLY, INHIBITOR-OUTER TRANSOM PLATE (#34762A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.36 ~~$24.49~~
3	SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE (#10-34763) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$6.00 ~~$7.50~~
4	SEAL, RUBBER-OUTER TRANSOM PLATE TO TRANSOM (#31636) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	LINER, OUTER TRANSOM PLATE (#32795) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	PLATE, TRANSOM-INNER (#34193) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	BOLT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (4") (#10-43691) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$13.44 ~~$16.80~~
8	WASHER, RUBBER-OUTER TRANSOM PLATE BOLT (#12-32620) Qty Required For Repair: 8 Minimum Order Qty: 5 Qty Required For Repair: 8 Minimum Order Qty: 5	$1.12 ~~$1.40~~
9	WASHER, OUTER TRANSOM PLATE BOLT (#12-21900) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$2.64 ~~$3.30~~
10	NUT, OUTER TRANSOM PLATE BOLT (#11-34087) Qty Required For Repair: 8 Minimum Order Qty: 5 Qty Required For Repair: 8 Minimum Order Qty: 5	$6.40 ~~$8.00~~
11	FITTING, GREASE (45)- INNER TRANSOM PLATE (#22-25094) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	LUBRICAP, INNER TRANSOM PLATE GREASE FITTING (#19-77633Q) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$5.36 ~~$6.70~~
13	LABEL, ENGINE ROTATION-INNER TRANSOM PLATE (#37-32049) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	COVER, LOCK-IN LIMIT SWITCH-INNER TRANSOM PLATE (#34056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	SCREW, COVER TO INNER TRANSOM PLATE (#10-26668) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
16	ARM ASSEMBLY, CUT-OUT SWITCH ACTUATING-INNER TRANSOM PLATE (#32463A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	PLUNGER, SWITCH ACTUATING ARM (#32464) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
18	SPRING, COMPRESSION-SWITCH ACTUATING ARM PLUNGER TENSION (#24-32922) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	RETAINER, SPRING AND PLUNGER TO SWITCH ACTUATING ARM (#33501) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	STUD, SHIFT ACTUATING CABLE TO SWITCH ACTUATING ARM (#16-20075) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	WASHER, SWITCH ACTUATING ARM CABLE STUD (#12-8M0204649) Qty Required For Repair: 1	$0.96 ~~$1.20~~
22	NUT, SWITCH ACTUATING ARM CABLE STUD (#11-8267089) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.12 ~~$1.40~~
23	BUSHING, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD (#23-26841) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	$5.84 ~~$7.30~~
24	STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 5/16") (#16-66373) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	WASHER, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD (#12-20546) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
26	NUT, SWITCH ACTUATING ARM TO TO INNER TRANSOM PLATE STUD (#11-82670911) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.84 ~~$4.79~~
27	SWITCH ASSEMBLY, CUT-OUT-INNER TRANSOM PLATE (#30866A2) Comment: BOLT AND NUT DISCONNECT Qty Required For Repair: 1 Minimum Order Qty: 1 BOLT AND NUT DISCONNECT	NLA
28	SWITCH ASSEMBLY, CUT-OUT-INNER TRANSOM PLATE (#39670A28) Comment: QUICK-DISCONNECT Qty Required For Repair: 2 Minimum Order Qty: 1 QUICK-DISCONNECT Qty Required For Repair: 2	NLA
28	SCREW, CUT-OUT SWITCH TO INNER TRANSOM PLATE (#10-30902) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
29	FITTING, GREASE-INNER TRANSOM PLATE (#22-69059) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
30	LUBRICAP, INNER TRANSOM PLATE GREASE FITTING (#19-77633Q) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$5.36 ~~$6.70~~
31	PLUNGER, OUTER TRANSOM PLATE (#34060) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	SWITCH ASSEMBLY, LOCK-IN LIMIT-OUTER TRANSOM PLATE (#34051A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	SCREW, LOCK-IN LIMIT SWITCH TO OUTER TRANSOM PLATE (#10-20665) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
34	CLIP, LOCK-IN LIMIT SWITCH LEADS TO INNER TRANSOM PLATE (#54-24836) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.20 ~~$4.00~~
35	SCREW, LOCK-IN LIMIT SWITCH LEADS CLIP TO INNER TRANSOM PLAT (#10-32031) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	"D" WASHER, LOCK-IN LIMIT SWITCH LEADS CLIP SCREW (#8M0084613) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 69205 Supersedes: 69205	$0.88 ~~$1.10~~
37	EXTENSION HARNESS ASSEMBLY, TILT SWITCH (QUICK DISCONNECT) (#39672A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	WELCH PLUG, INNER TRANSOM PLATE (#19-35684) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	ARM, SHIFT CABLE MOUNTING-STEERING BRACKET (#49406A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	SPACER, SHIFT CABLE MOUNTING ARM STUD (#23-31758) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	STUD, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET (#16-68201) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	WASHER, SHIFT CABLE MOUNTING ARM STUD (#12-26825) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.12 ~~$1.40~~
43	SPACER, SHIFT CABLE MOUNTING ARM STUD (#23-27818) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	NUT, SHIFT CABLE MOUNTING ARM STUD (#11-82670911) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.84 ~~$4.79~~
45	SCREW, SHIFT ACTUATING CABLE TO SHIFT CABLE ARM (1 5/8") (#10-22659) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
46	SPACER, SHIFT ACTUATING CABLE SCREW (#23-31866) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$4.40 ~~$5.50~~
47	WASHER, SHIFT ACTUATING CABLE SCREW (#12-39143) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$7.20 ~~$9.00~~
48	NUT, SHIFT ACTUATING CABLE SCREW (#11-8267089) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.12 ~~$1.40~~
49	SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CABLE ARM (1 5/8") (#10-22659) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
50	SPACER, SHIFT CABLE ASSEMBLY SCREW (#23-31866) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$4.40 ~~$5.50~~
51	WASHER, SHIFT CABLE ASSEMBLY SCREW (#12-39143) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$7.20 ~~$9.00~~
52	NUT, SHIFT CABLE ASSEMBLY SCREW (#11-8267089) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.12 ~~$1.40~~
53	TUBE, STEERING CABLE GUIDE (#71565A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$56.64 ~~$59.00~~
54	NUT, JAM-STEERING CABLE GUIDE TUBE (#11-8M0041651) Qty Required For Repair: 1 Minimum Order Qty: 2 Supersedes: 11-37984 Minimum Order Qty: 2 Supersedes: 11-37984	$11.44 ~~$14.30~~
55	RING, SWIVEL-CABLE GUIDE TUBE PIVOT YOKE (#35221) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
56	YOKE, CABLE GUIDE TUBE PIVOT-STEERING CABLE BRACKET (#34125) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	BOLT, PIVOT-PIVOT YOKE TO SWIVEL RING (#10-31832) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
58	LOCKWASHER, PIVOT YOKE TO SWIVEL RING PIVOT BOLT (#13-31848) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
59	WASHER, CABLE GUIDE PIVOT YOKE (#12-35683) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MERCRUISER > II 1964-1967
