IGNITION COIL/VOLTAGE REGULATOR

Ref ID	Description	Price
1	PLATE MOUNTING (#195872) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SCREW, VOLTAGE REGULATOR (#10-30720) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
3	LOCKWASHER (#13-26992) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.02 ~~$1.20~~
4	SPACER (#23-19661) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$4.17 ~~$4.90~~
5	VOLTAGE REGULATOR (#18736A21) Qty Required For Repair: 1 Minimum Order Qty: 1	$725.60 ~~$751.14~~
6	SEAL (#18717) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	STARTER SOLENOID (#8M0185622) Qty Required For Repair: 2 Qty Required For Repair: 2	$30.14 ~~$35.17~~
8	SCREW, STARTER SOLENOID (#10-90192) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$1.45 ~~$1.70~~
9	WIRE ASSEMBLY (3-1/2" - BLACK) (#84-88807A6) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.70 ~~$6.70~~
10	NUT, SOLENOID SCREW (#11-8267098) Qty Required For Repair: 3 Minimum Order Qty: 2 Qty Required For Repair: 3 Minimum Order Qty: 2	$5.61 ~~$6.60~~
11	NUT, SOLENOID TERMINAL (8-32) (#11-26419) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.36 ~~$1.60~~
12	NUT, SOLENOID TERMINAL (1/4-20) (#11-94330) Qty Required For Repair: 4 Minimum Order Qty: 2 Qty Required For Repair: 4 Minimum Order Qty: 2	$1.36 ~~$1.60~~
13	HARNESS ASSEMBLY, COIL TO SWITCH BOX (#84-69739A7) Comment: (#2, 4 AND 6) Qty Required For Repair: 1 Minimum Order Qty: 1 (#2, 4 AND 6)	$94.05 ~~$95.00~~
14	WIRE ASSEMBLY (2-3/4" - RED) (#84-87379A14) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	WIRE ASSEMBLY (3-1/2" - BLACK) (#84-88807A8) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	CABLE (9 - BLACK) (#84-88807A29) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.22 ~~$17.90~~
16	STA-STRAP (#54-816311T) Qty Required For Repair: AR Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.51 ~~$0.60~~
17	COVER, IGNITION COIL (#43542) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
18	IGNITION COIL (#339-832757A4) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$100.07 ~~$116.75~~
19	SCREW, IGNITION COIL COVER (#10-90048) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
20	NUT, COVER SCREW/GROUND WIRE (#11-90078) Qty Required For Repair: 14 Minimum Order Qty: 1 Qty Required For Repair: 14	$1.19 ~~$1.40~~
21	CABLE, HIGH TENSION (#84-813715A9) Qty Required For Repair: 1 Minimum Order Qty: 1	$119.63 ~~$120.83~~
22	PROTECTOR, HIGH TENSION CABLE (#85-63709A1) Qty Required For Repair: 6 Minimum Order Qty: 10 Qty Required For Repair: 6 Minimum Order Qty: 10	$6.72 ~~$7.90~~
23	SPARK PLUG (#33-13686Q) Qty Required For Repair: 6 Minimum Order Qty: 10 Qty Required For Repair: 6 Minimum Order Qty: 10	$7.23 ~~$8.50~~
23	SPARK PLUG (CANADA/BELGIUM) (#33-14103568) Qty Required For Repair: 6 Minimum Order Qty: 10 Qty Required For Repair: 6 Minimum Order Qty: 10	$21.51 ~~$21.08~~
24	NUT, IGNITION COIL TERMINAL (#11-45076) Qty Required For Repair: 12 Minimum Order Qty: 10 Qty Required For Repair: 12 Minimum Order Qty: 10	$1.45 ~~$1.70~~
25	GROUND WIRE (5-1/2" - BLACK) (#84-88807A13) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$7.14 ~~$8.40~~
26	SCREW, GROUNDING WIRE (#10-69022) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.94 ~~$1.10~~
27	COVER, COIL PLATE (#814423T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	SCREW, COVER (#10-814343) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$3.23 ~~$3.80~~

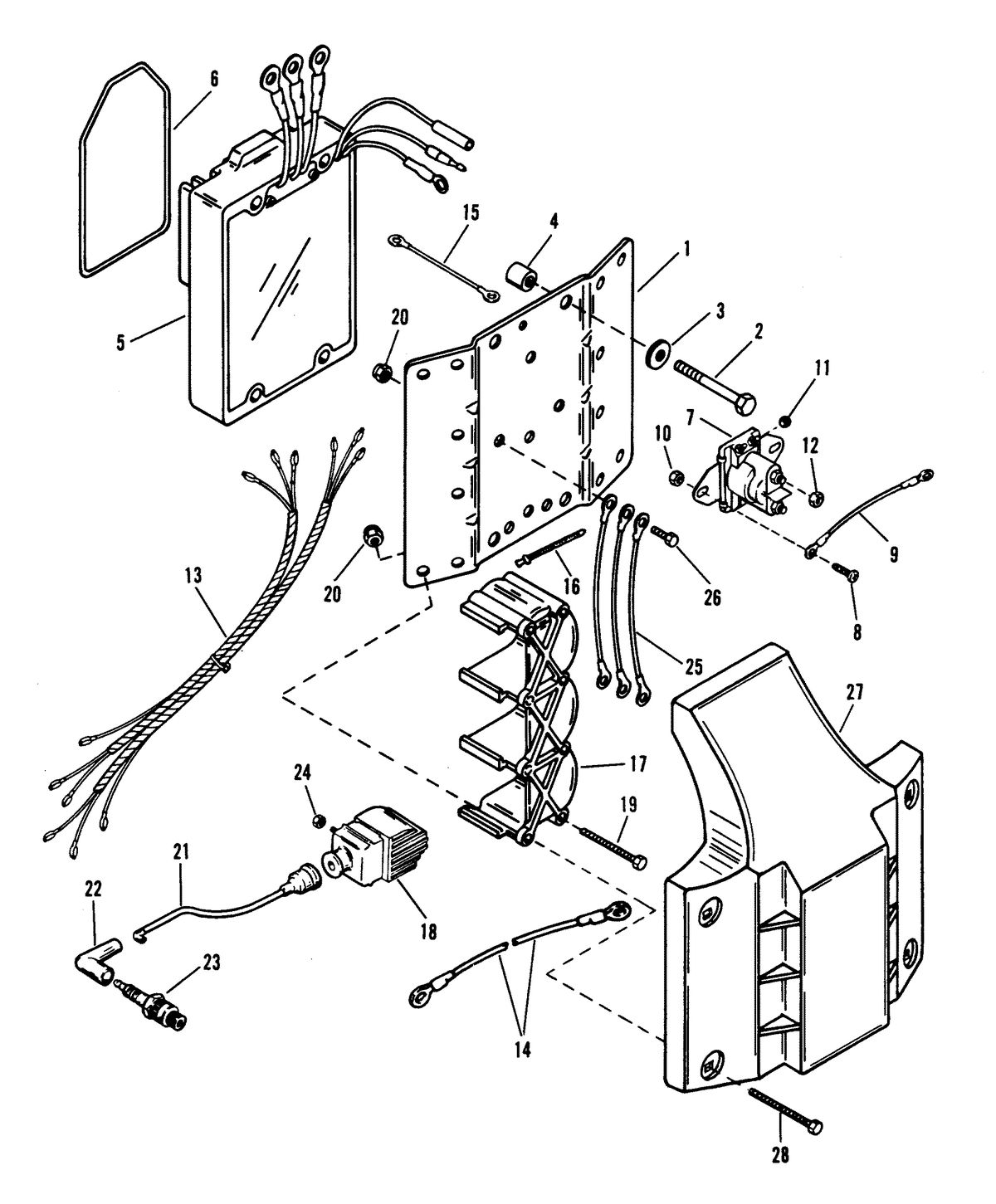

To zoom in, move your mouse over the diagram.

MARINER 175 SKI (EFI) IGNITION COIL/VOLTAGE REGULATOR

This assembly is found in these models:

MARINER > V-175 (SKI)
