MERCURY - 300 (3.4 LITRE) - HYDRAULIC PUMP(DESIGN II)

Ref ID	Description	Price
-	PUMP ASSEMBLY, Hydraulic (#823653A9) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	ADAPTOR (#801786) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	COUPLING (#803852) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 89493 Supersedes: 89493	$61.28 ~~$63.83~~
3	MANUAL RELEASE (#96598A1) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
4	PUMP (INCLUDES SCREWS) (#801787) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	FILTER (#35-89496) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.48 ~~$13.10~~
6	O-RING (#25-89498) Qty Required For Repair: 1 Minimum Order Qty: 1	$9.12 ~~$11.40~~
7	O-RING (#25-89497) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.68 ~~$7.10~~
8	DIPSTICK (#89499) Qty Required For Repair: 1 Minimum Order Qty: 1	$29.20 ~~$30.42~~
9	RESERVOIR (#90587T) Qty Required For Repair: 1 Minimum Order Qty: 1	$123.88 ~~$135.83~~
10	SCREW (INCLUDES O-RING) (#10-90588) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	MOTOR (#17649A02) Qty Required For Repair: 1 Minimum Order Qty: 1	$352.02 ~~$413.17~~
11	END CAP ASSEMBLY (W/BEARING) (#17632T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	SCREW (#10-17626) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
13	O-RING (#25-17625) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SCREW (#10-17621) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	HOLDER KIT (#17633) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	BRUSH KIT (#17631A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	ARMATURE (#17623) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	WASHER (#12-17653) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
19	FIELD AND FRAME ASSEMBLY (#17624) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	COVER ASSEMBLY (W/BEARING) (#17622) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	SCREW (#10-823444) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.40 ~~$3.00~~
--	REPAIR KIT, Relief Valve (#812501A1) Qty Required For Repair: -- Minimum Order Qty: 1	NLA
--	REPAIR KIT, Overhaul (#99073A2) Qty Required For Repair: -- Minimum Order Qty: 1	NLA

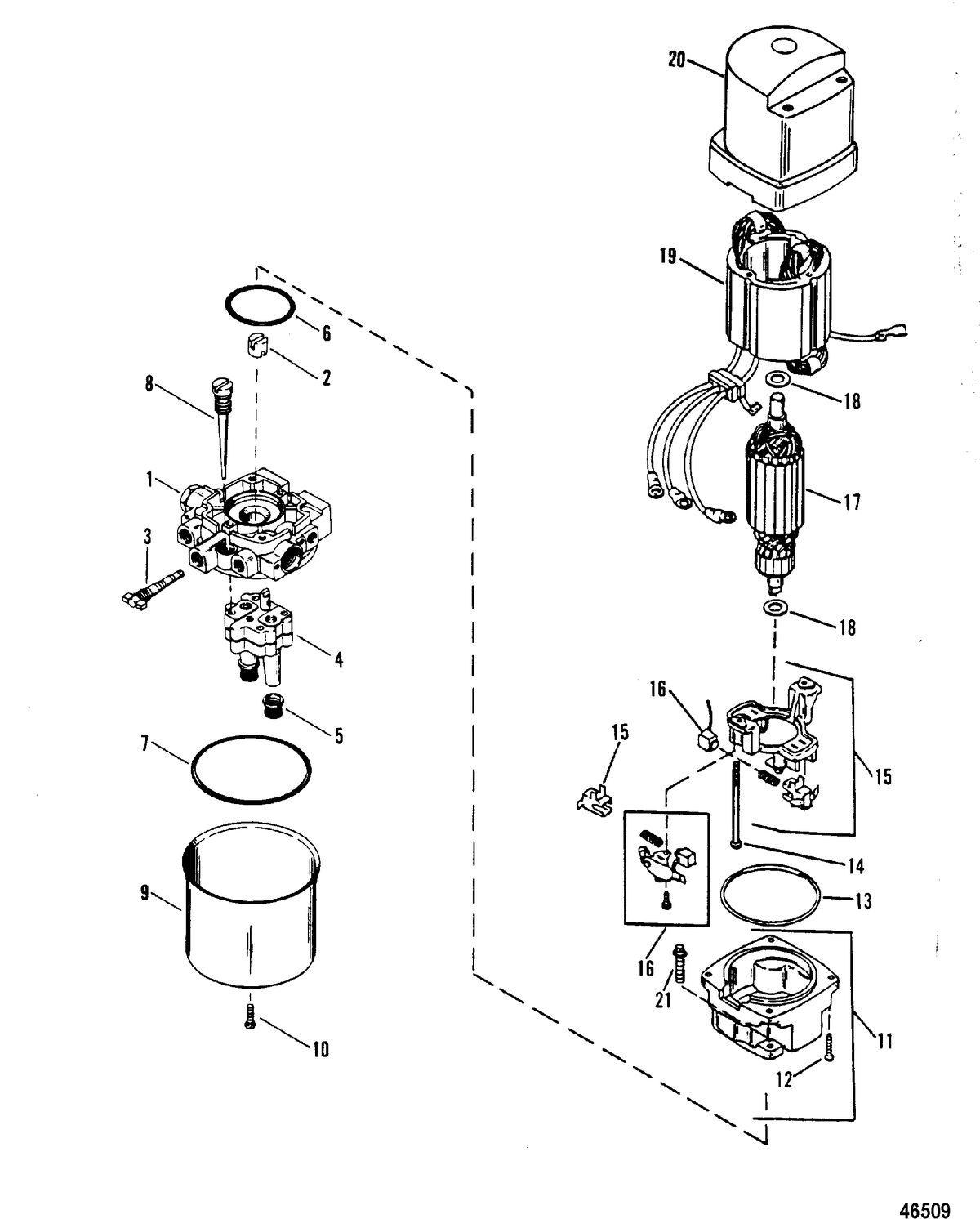

MERCURY 3.4 LITRE HYDRAULIC PUMP(DESIGN II)

Notes

1: DESIGN II
2: REPAIR KITS:
3: Relief Valve Kit
4: Overhaul Repair Kit

This assembly is found in these models:

MERCURY > 300 (3.4 LITRE)
