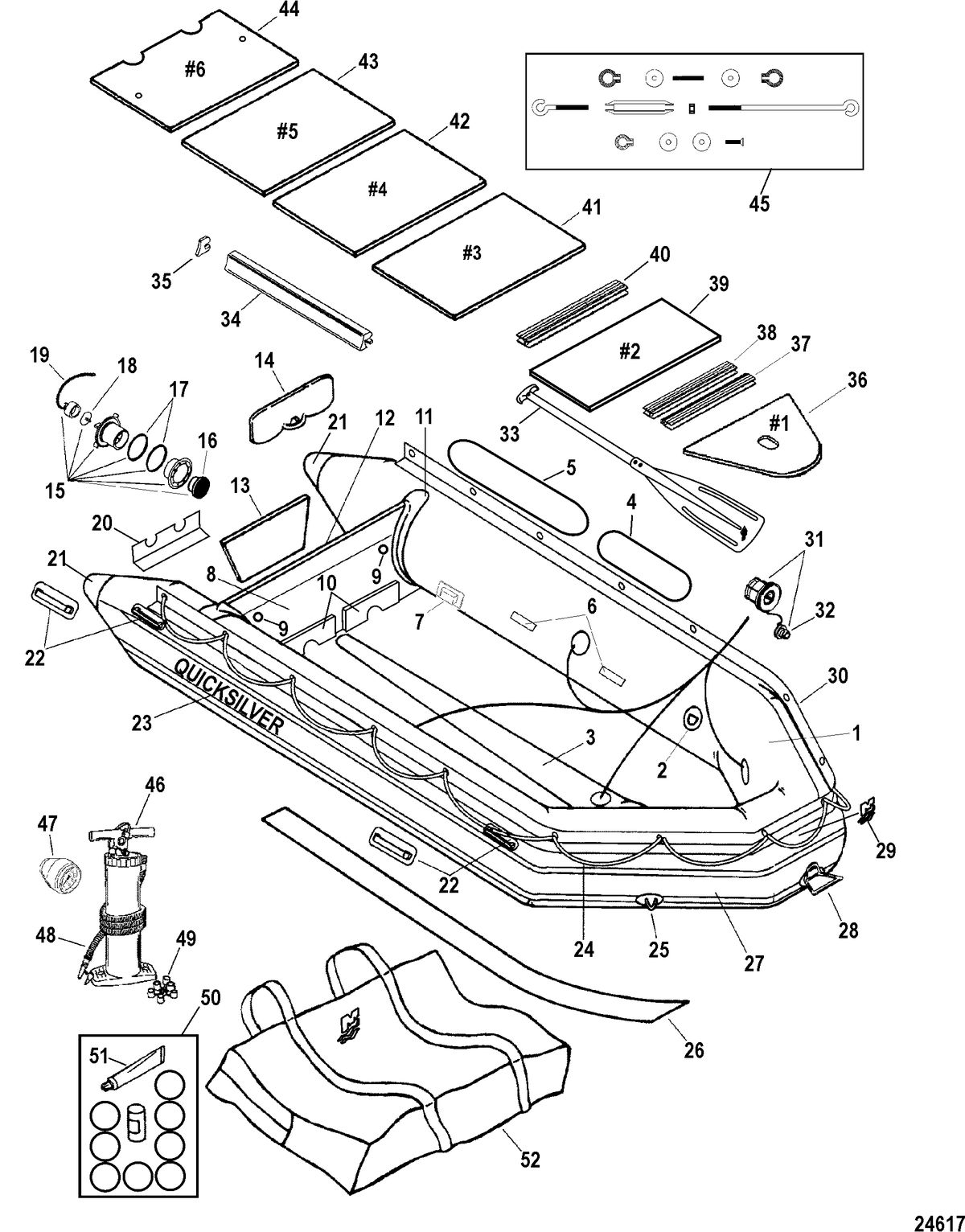

Heavy Duty 530 Model(Red/Black - Aluminum Floors)

Ref ID	Description	Price
1	SKIN ASSEMBLY, PVC - Red/Black (17 Feet 4 Inches) (#62-899670002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899670001, 62-899670 Supersedes: 62-899670001, 62-899670	NLA
2	D RING, Medium - Stainless Steel On Red PVC Fabric (#62-8113102) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
3	KEEL, PVC - Black (#62-899671T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	WEAR PATCH, PVC - Black (96.3 cm x 29 cm) (#62-899715002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	WEAR PATCH, PVC - Black (139.6 cm x 29 cm) (#62-899716002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	STRAP, T Paddle Retainer - Red PVC Fabric With Red Velcro (#62-8097853) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
7	STOPPER, Side Joiner - PVC Black (#62-877696) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
8	TRANSOM ASSEMBLY, PVC Coated - Black (#62-809536005) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	TOWING HOLE SET, (28 mm x T36 mm) Stainless Steel (#62-898172001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	RETAINER, (L20 cm) Black (#62-899677) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	HOLDER, Transom - PVC Black (T36 mm) (#62-809783) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
12	CAP, Transom Cover (W36 mm x 135 cm) PVC Black (#62-802607004) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.10 ~~$5.44~~
13	PLATE, Transom - Black Wood (#62-8113362) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	PAD, Transom - Aluminum (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
15	PLUG ASSEMBLY, Drain - Black (24 mm) (#62-830222A4) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$25.52 ~~$22.80~~
16	FILTER/SCREEN, Drain Plug - Light Gray (#62-881829) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.53 ~~$2.25~~
17	GASKET, Drain Plug (#27-830221) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
18	CHECK VALVE, Drain Plug (#62-824409) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.30 ~~$1.16~~
19	CAP/STRING AND CLIP, Drain Plug - Black (#62-8097802) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$7.07 ~~$6.31~~
20	PROTECTOR, Transom Bottom - PVC Black (#62-899878002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	END CONE CAP, PVC - Black With Flat End (120 mm x H96 mm) (#62-899877002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$9.94 ~~$8.87~~
22	HANDLE/LIFTING, Side - PVC Black (#62-8590072) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
23	LOGO, Side - Raised Quicksilver - PVC - Black On Red (#62-8113487) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
24	ROPE, (12.00 Feet) Black (#62-8097783) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
25	D RING, Large - Stainless Steel On Black PVC Fabric (#62-811309) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
26	RUBSTRAKE, Bottom - PVC Black With Three Ridges (L3.5 m x W8 cm) (#62-824412) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	RUBSTRAKE, Side - PVC - Two Red Lines On Black (L9.5 m x W12 cm) (#62-879725) Qty Required For Repair: 1 Minimum Order Qty: 1	$262.59 ~~$264.16~~
28	HANDLE/LIFTING, Bow - Chrome On Black PVC Fabric (#62-8097773) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	LOGO, Bow - PVC - Black On Red (#62-883916) Qty Required For Repair: 1 Minimum Order Qty: 1	$12.72 ~~$11.35~~
30	LACING CUFF ASSEMBLY, PVC Black Hogging With Eyelets (L10.23 m) (#62-809784017) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809784007, 62-809784 4 Supersedes: 62-809784007, 62-809784 4	$158.93 ~~$159.89~~
31	VALVE ASSEMBLY, Air - 8 Slots - Black (#62-879184A02) Qty Required For Repair: 6 Minimum Order Qty: 1 Supersedes: 62-809887 1 Qty Required For Repair: 6 Supersedes: 62-809887 1	$25.52 ~~$26.59~~
32	CAP ASSEMBLY, Air Valve - Black (#62-879184003) Qty Required For Repair: 6 Minimum Order Qty: 1 Supersedes: 62-809696 2 Qty Required For Repair: 6 Supersedes: 62-809696 2	$2.61 ~~$2.32~~
33	T PADDLE, (130 cm) Black (#62-8809991) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
34	SIDE JOINER, (L80 cm) Aluminum (#62-809521009) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
35	CAP, Side Joiner - Front Port Or Rear Starboard (#62-809522004) Comment: - Front Port Or Rear Starboard Qty Required For Repair: 6 Minimum Order Qty: 1 - Front Port Or Rear Starboard Qty Required For Repair: 6	NLA
35	CAP, Side Joiner - Rear Port Or Front Starboard (#62-809522005) Comment: - Rear Port Or Front Starboard Qty Required For Repair: 6 Minimum Order Qty: 1 - Rear Port Or Front Starboard Qty Required For Repair: 6	NLA
36	FLOORBOARD #1, Fiberglass - Dark Gray (L66.5 cm x W117 cm x H15) (#62-896482T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896482 Supersedes: 62-896482	NLA
37	H CHANNEL, Tongue Style - A Shape (L108 cm x D15 mm) Aluminum (#62-809524001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	H CHANNEL, Groove Style - H Shape (L108 cm x D15 mm) (#62-809525001) Qty Required For Repair: 1 Minimum Order Qty: 1	$25.49 ~~$22.77~~
39	FLOORBOARD #2, Fiberglass - Dark Gray (L36 cm x W122/134 x H15 mm) (#62-896483T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896483 Supersedes: 62-896483	NLA
40	H CHANNEL, Groove - M Shape (L123 cm x W24 mm x T15 mm) (#62-896478001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	FLOORBOARD #3, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896484T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896484 Supersedes: 62-896484	NLA
42	FLOORBOARD #4, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896485T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896485 Supersedes: 62-896485	NLA
43	FLOORBOARD #5, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896486T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896486 Supersedes: 62-896486	NLA
44	FLOORBOARD #6, Aluminum (L71.5 cm x W133 cm x T22 mm) (#62-896487T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896487 Supersedes: 62-896487	NLA
45	STRUT SET, Transom, Floorboard #6 To Transom (#62-898287T01) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
46	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
47	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
48	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
49	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
50	REPAIR KIT, PVC - Red/Black (#62-8113145) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.30 ~~$16.35~~
51	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	BAG, Storage/Carrying (#62-896488T01) Comment: - Flap Style - For Boat Qty Required For Repair: 1 Minimum Order Qty: 1 - Flap Style - For Boat	NLA
52	BAG, Storage/Carrying (#62-896489T01) Comment: - Zipper Style - For Floorboards Qty Required For Repair: 1 Minimum Order Qty: 1 - Zipper Style - For Floorboards	NLA
